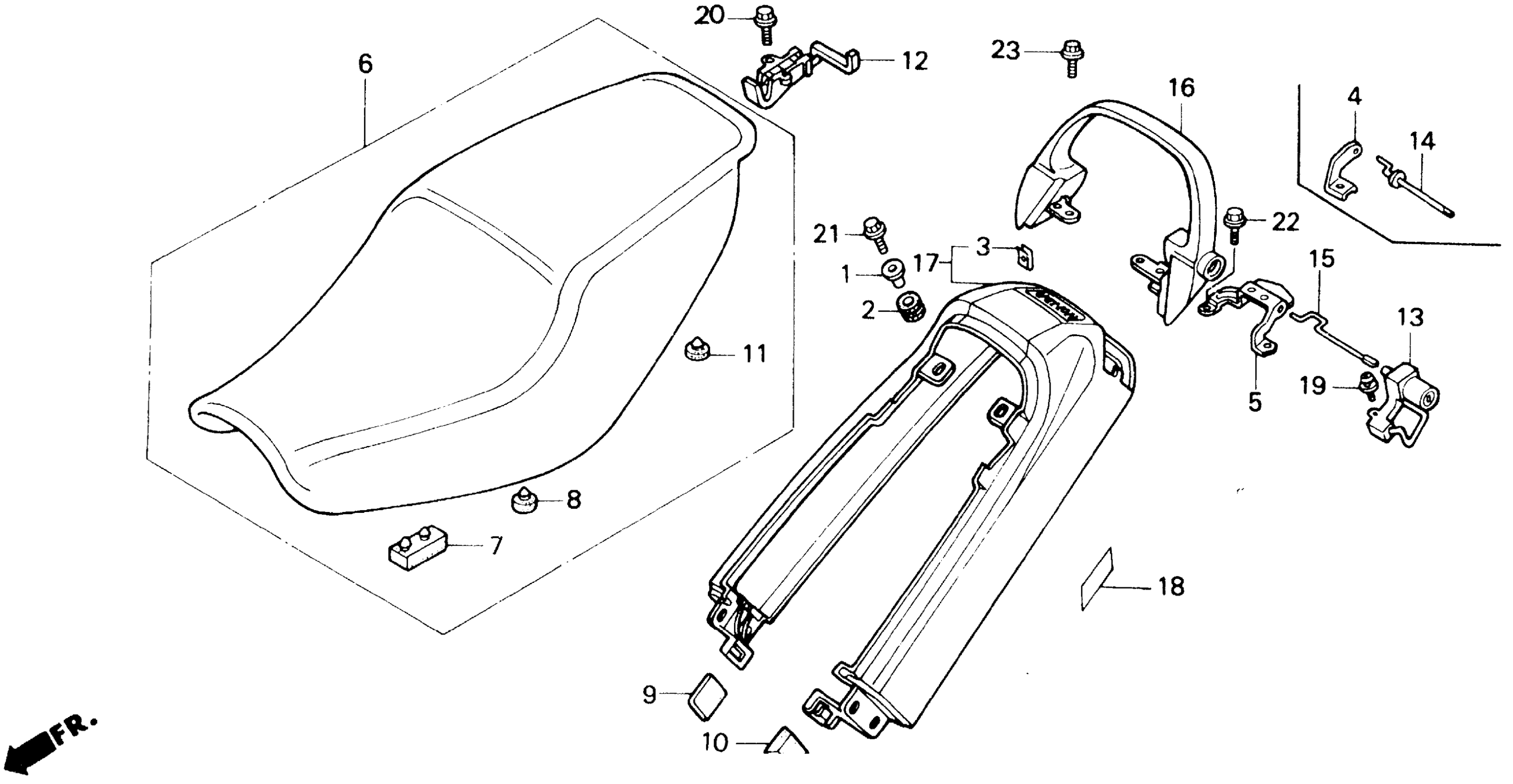

Honda CBR1000FA (88) HURRICANE 1000, USA, VIN# 1HFSC210-JA100001 TO 1HFSC210-JA100480 SEAT Diagram

COLLAR, FUEL TANK SETTING

17535-KE7-000

$3.31

RUBBER, FR. FENDER SETTING

61103-357-000

$3.37

NUT, CLIP (4MM)

64527-KE8-000

Unavailable

BRACKET, SEAT LOCK

77150-MM5-770

Unavailable

SEAT ASSY., DOUBLE *NH1L* (BLACK)

77200-MM5-000ZA

Unavailable

RUBBER, SEAT SETTING

77206-GF0-000

$5.46

RUBBER, R. RR. COWL SETTING

77211-MM5-000

Unavailable

RUBBER, L. RR. COWL SETTING

77212-MM5-000

Unavailable

RUBBER B, SEAT STOPPER

77215-GC2-000

$5.05

HOOK, SEAT CATCH This part replaces 77220-MM5-003.

77220-MS2-671

Unavailable

HOOK, SEAT CATCH This part replaces 77220-MM5-013.

77220-MS2-671

Unavailable

HOOK, SEAT CATCH This part replaces 77220-MS2-670.

77220-MS2-671

Unavailable

HOOK, SEAT CATCH

77220-MS2-671

Unavailable

HOLDER ASSY., HELMET This part replaces 77225-MM5-007.

77225-MS2-003

Unavailable

HOLDER ASSY., HELMET

77225-MS2-003

Unavailable

BAR, SEAT LOCK

77232-MM5-770

Unavailable

GRAB RAIL, RR. *NH1* (BLACK)

77310-MM5-881ZA

Unavailable

COWL SET, RR. SEAT *NH233M* (WL) (NEW YORKER SILVER)

83690-MM5-771ZA

Unavailable

COWL SET, RR. SEAT *PB205MU* (WL) (SHADOW BLUE)

83690-MM5-771ZB

Unavailable

LABEL, HELMET HOLDER

87511-KR3-670

Unavailable

LABEL, HELMET HOLDER This part replaces 87511-KV0-300.

87511-KR3-670

Unavailable

SCREW-WASHER (5X16)

93892-05016-08

$1.49

BOLT, FLANGE (6X16)

95701-06016-00

$1.55

BOLT, FLANGE (6X25)

96001-06025-00

$2.00

BOLT, FLANGE (6X20)

95701-06020-08

$1.49

BOLT, FLANGE (8X16)

90123-KV0-000

$4.51
