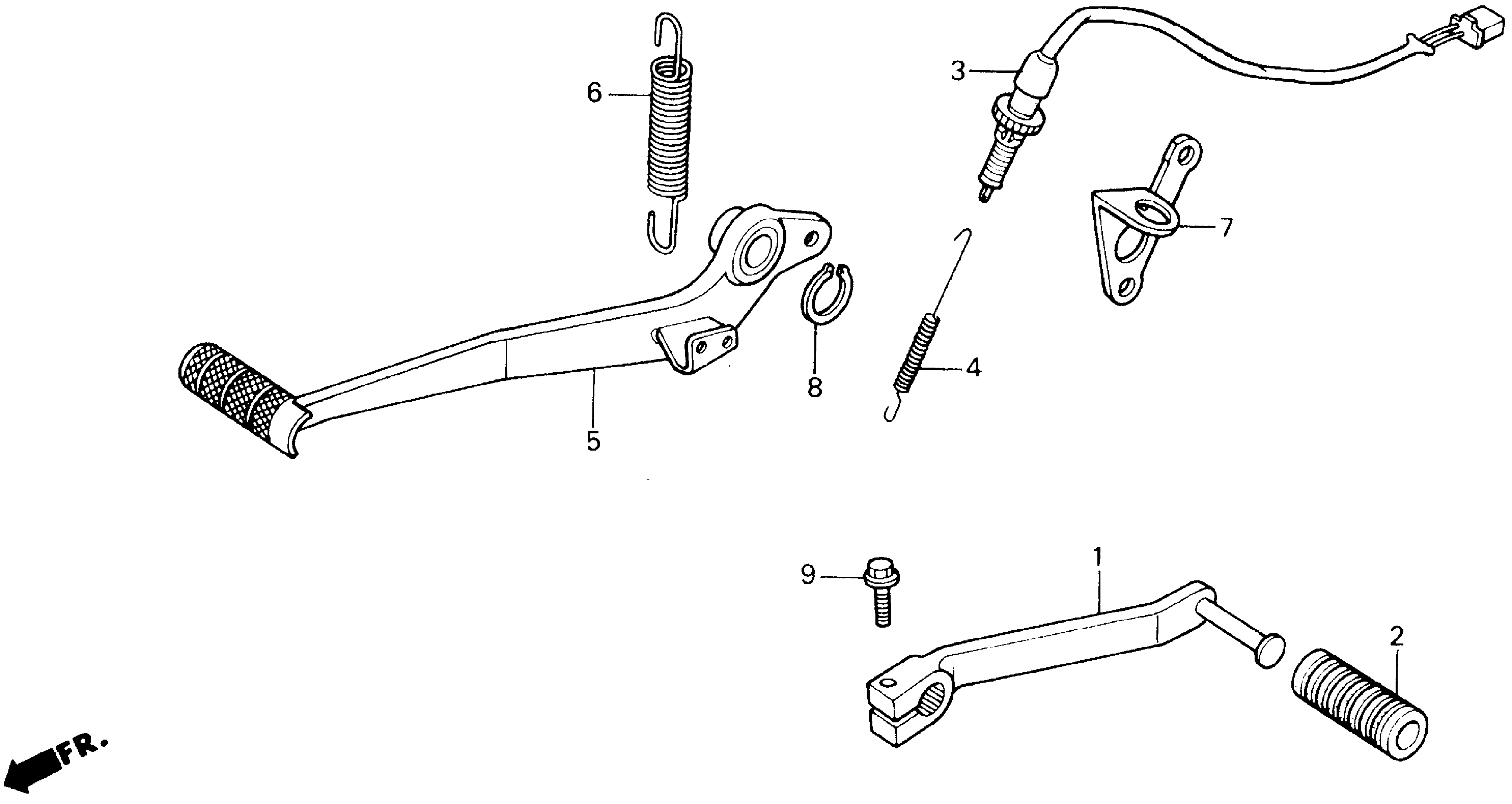

Honda CBR1000FA (88) HURRICANE 1000, USA, VIN# 1HFSC210-JA100001 TO 1HFSC210-JA100480 PEDAL Diagram

PEDAL, GEARSHIFT

24701-MM5-000

Unavailable

RUBBER, CHANGE PEDAL

24781-KR3-770

$3.39

SWITCH ASSY., RR. STOP This part replaces 35350-MM5-000.

35350-GBG-505

Unavailable

SWITCH ASSY., RR. STOP This part replaces 35350-MM5-010.

35350-GBG-505

Unavailable

SPRING, STOP SWITCH

35357-MM5-000

Unavailable

PEDAL, RR. BRAKE

46500-MM5-000

Unavailable

SPRING, BRAKE PEDAL RETURN

46514-MM5-000

Unavailable

STAY, STOP SWITCH

50206-MM5-000

Unavailable

CIRCLIP (OUTER) (15MM)

94511-15000

$1.49

BOLT, FLANGE (6X20)

95701-06020-07

$1.62
