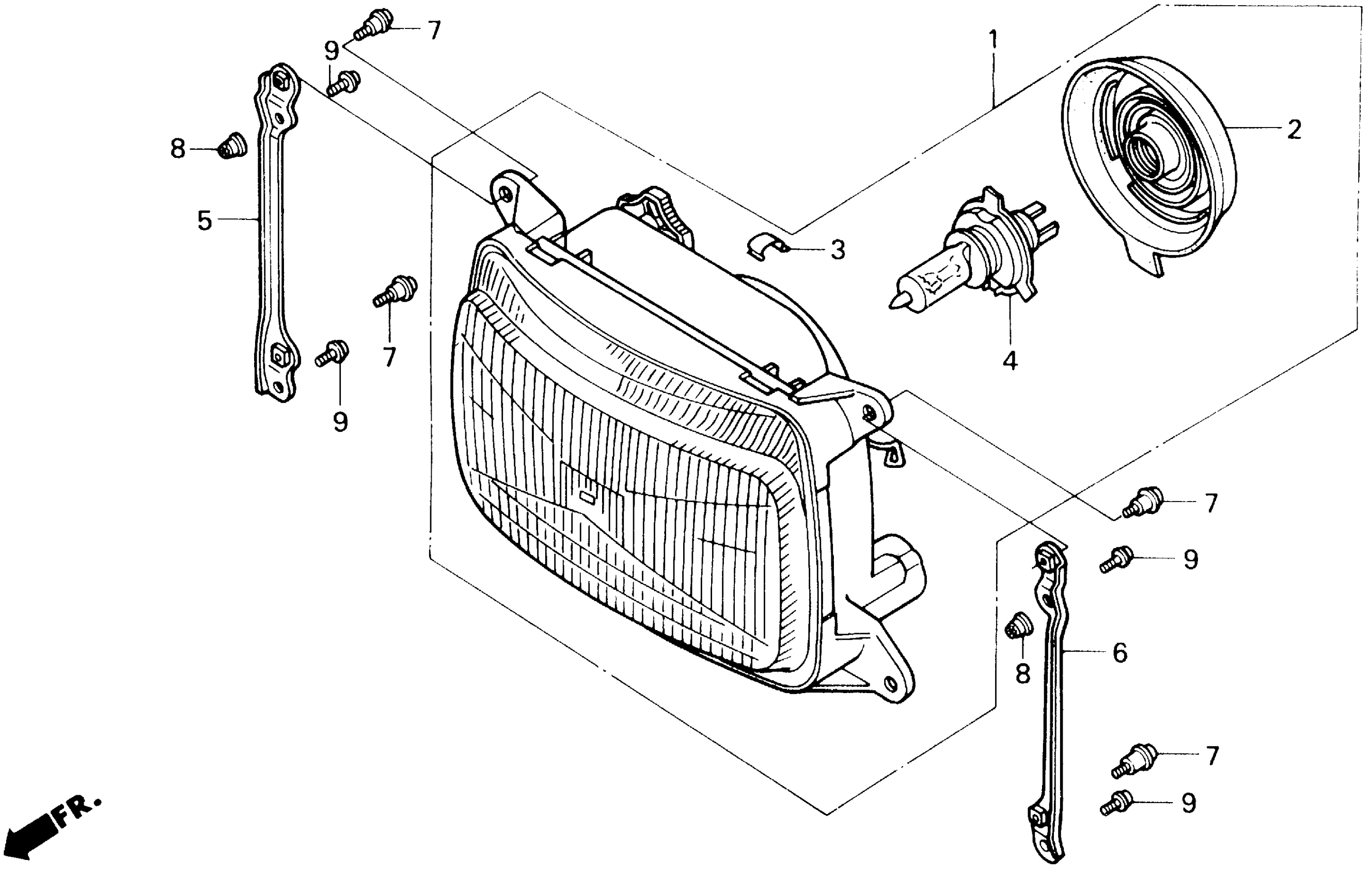

Honda CBR1000FA (88) HURRICANE 1000, USA, VIN# 1HFSC210-JA100001 TO 1HFSC210-JA100480 HEADLIGHT Diagram

#

Description

Price

1

HEADLIGHT ASSY. (12V 60/55W) This part replaces 33100-MM5-671.

33100-MM5-672

Unavailable

1

HEADLIGHT ASSY. (12V 60/55W)

33100-MM5-672

Unavailable

2

COVER, RUBBER

33112-MM5-601

$16.53

3

CLIP, LENS HOLDER

33113-ML7-601

Unavailable

4

BULB, HEADLIGHT (12V 60/55W) (STANLEY) This part replaces 34901-MC7-601.

34901-MC7-602

$37.18

4

BULB, HEADLIGHT (12V 60/55W) (STANLEY) This part replaces 34901-MC7-601AH.

34901-MC7-602

$37.18

5

STAY, R. HEADLIGHT

61313-MM5-000

Unavailable

6

STAY, L. HEADLIGHT

61314-MM5-000

Unavailable

7

SCREW, PAN (5X16)

90102-GB2-720

$2.38

8

NUT, INSERT (5X0.8)

90316-MJ1-000

$3.53

9

SCREW-WASHER (5X8)

93892-05008-07

$1.49
