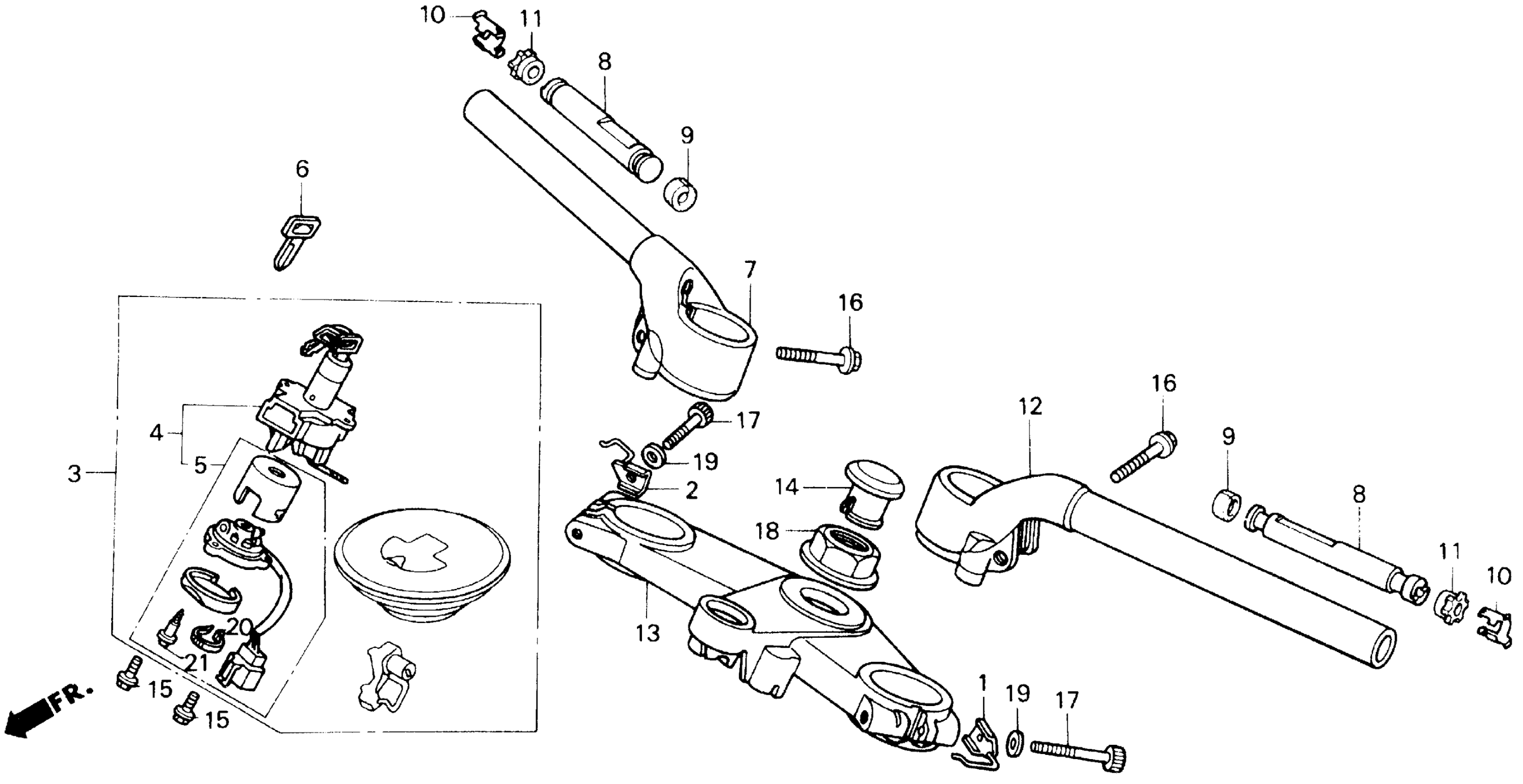

Honda CBR1000FA (88) HURRICANE 1000, USA, VIN# 1HFSC210-JA100001 TO 1HFSC210-JA100480 HANDLEBAR Diagram

#

Description
Price

1

GUIDE, CABLE

17908-KT7-000

Unavailable

2

GUIDE, CABLE

17908-MM5-000

Unavailable

3

LOCK SET This part replaces 35010-MM5-600.

35010-MM5-602

Unavailable

3

LOCK SET This part replaces 35010-MM5-601.

35010-MM5-602

Unavailable

3

LOCK SET

35010-MM5-602

Unavailable

4

SWITCH ASSY., COMBINATION & LOCK This part replaces 35100-MM5-600.

35100-MM5-602

Unavailable

4

SWITCH ASSY., COMBINATION & LOCK This part replaces 35100-MM5-601.

35100-MM5-602

Unavailable

4

SWITCH ASSY., COMBINATION & LOCK

35100-MM5-602

Unavailable

5

BASE, CONTACT

35101-MM5-600

Unavailable

6

KEY, BLANK (TYPE1)

35121-KW3-771

$10.10

6

KEY, BLANK (TYPE1) (KEY NO. AXX / BXX) This part replaces 35121-MA6-811.

35121-KW3-771

$10.10

6

KEY, BLANK (TYPE2)

35122-KW3-771

$10.10

6

KEY, BLANK (TYPE2) (KEY NO. CXX / DXX) This part replaces 35122-MA6-811.

35122-KW3-771

$10.10

7

HANDLEBAR, R.

53100-MM5-000

Unavailable

8

WEIGHT B, HANDLEBAR This part replaces 53104-MM5-000.

53104-MS2-000

$24.30

8

WEIGHT B, HANDLEBAR

53104-MS2-000

$24.30

9

RUBBER A, HANDLE WEIGHT

53106-MM5-000

Unavailable

10

RING, HANDLE WEIGHT SNAP

53108-MJ0-000

$5.14

11

RUBBER B, HANDLE WEIGHT

53109-MM5-000

$3.72

12

HANDLEBAR, L.

53150-MM5-000

Unavailable

13

BRIDGE, FORK TOP

53230-MM5-000

Unavailable

14

CAP, STEERING STEM

53232-MJ4-670

$13.43

15

BOLT, FLANGE (8X19)

90104-MJ1-000

$6.31

16

BOLT, SPECIAL FLANGE (8X40)

90109-MM5-000

$3.59

17

BOLT, SOCKET (7X46)

90151-MB2-000

Unavailable

18

NUT, STEERING STEM

90304-MJ4-670

$15.40

19

WASHER, PLAIN (7MM)

90511-MB2-000

Unavailable

20

BAND, SELF-LOCK

91058-MG9-681

$2.21

21

SCREW, TAPPING (3X16)

91059-KY2-711

$2.97

21

SCREW, TAPPING (3X16) This part replaces 91059-MK4-601.

91059-KY2-711

$2.97
