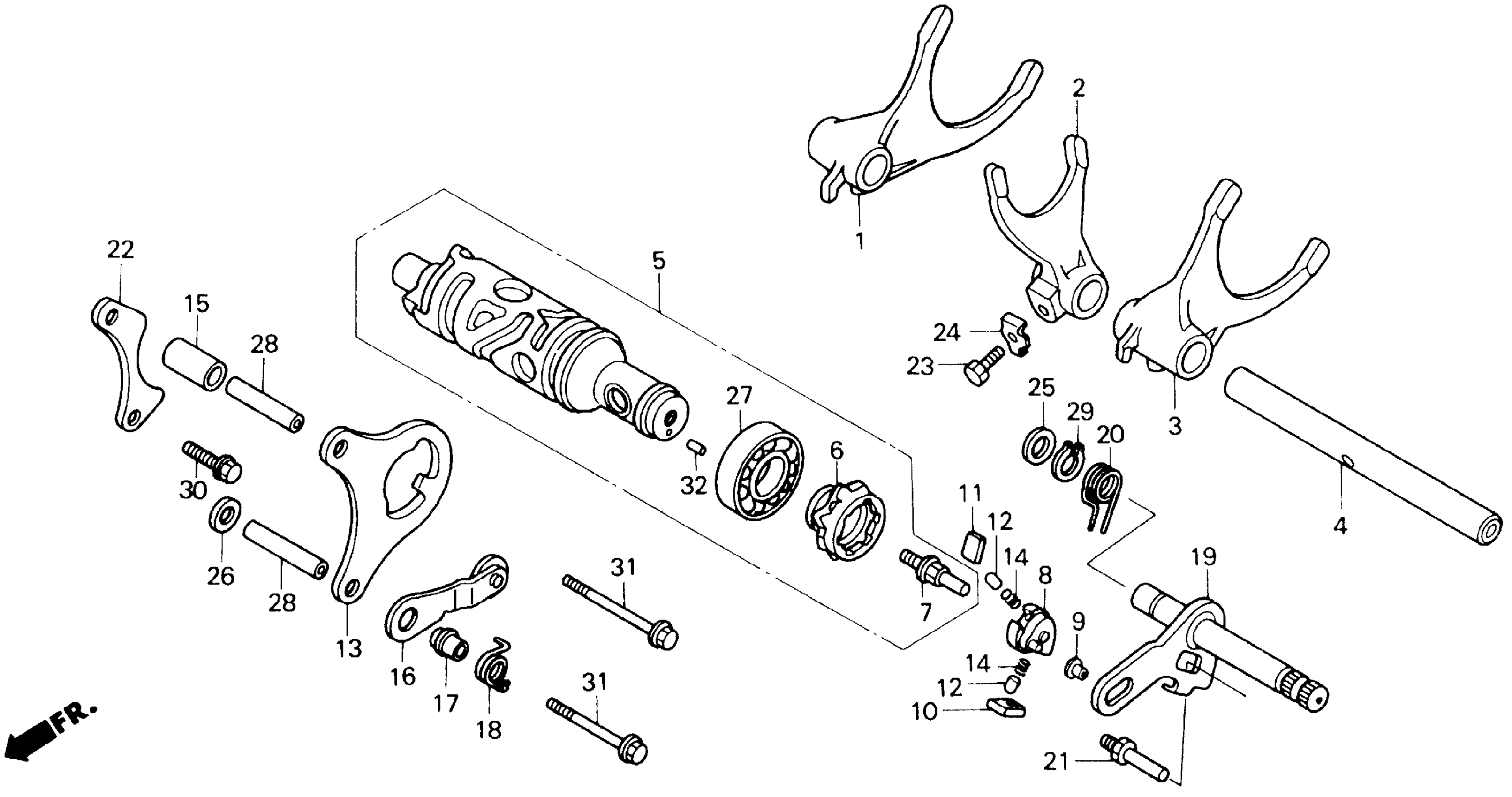

Honda CBR1000FA (88) HURRICANE 1000, USA, VIN# 1HFSC210-JA100001 TO 1HFSC210-JA100480 GEARSHIFT DRUM Diagram

#

Description
Price

1

FORK, R. GEARSHIFT

24211-MM5-000

Unavailable

2

FORK, CENTER GEARSHIFT

24212-MM5-000

Unavailable

3

FORK, L. GEARSHIFT

24213-MM5-000

Unavailable

4

SHAFT, GEARSHIFT FORK This part replaces 24231-MM5-000.

24231-MM5-640

Unavailable

4

SHAFT, GEARSHIFT FORK

24231-MM5-640

Unavailable

5

DRUM, GEARSHIFT This part replaces 24310-MM5-000.

24310-MM5-640

Unavailable

5

DRUM, GEARSHIFT

24310-MM5-640

Unavailable

6

CENTER, GEARSHIFT DRUM This part replaces 24312-KT8-300.

24312-KY2-310

$37.64

6

CENTER, GEARSHIFT DRUM This part replaces 24312-KY2-300.

24312-KY2-310

$37.64

6

CENTER, GEARSHIFT DRUM

24312-KY2-310

$37.64

7

PIN, SHIFTER

24315-HA0-000

$12.60

8

SHIFTER, DRUM This part replaces 24321-KT8-010.

24321-KT8-030

$55.03

8

SHIFTER, DRUM This part replaces 24321-KT8-020.

24321-KT8-030

$55.03

8

SHIFTER, DRUM

24321-KT8-030

$55.03

9

COLLAR, SHIFTER This part replaces 24322-MM5-000.

24322-MM4-000

$5.12

10

PAWL A, RATCHET This part replaces 24324-KA3-710.

24324-KA3-711

$13.21

10

PAWL A, RATCHET

24324-KA3-711

$13.21

11

PAWL B, RATCHET This part replaces 24325-KA3-710.

24325-KA3-711

$13.21

11

PAWL B, RATCHET

24325-KA3-711

$13.21

12

PLUNGER, PAWL

24326-KBH-901

$5.81

12

PLUNGER, PAWL This part replaces 24326-KT7-000.

24326-KBH-901

$5.81

13

PLATE, GUIDE

24328-MM5-000

Unavailable

14

SPRING, PAWL PLUNGER

24329-KA3-740

$2.92

15

COLLAR, GUIDE PLATE DISTANCE

24329-KT8-000

$5.97

16

STOPPER, DRUM

24430-MM5-000

Unavailable

17

COLLAR, DRUM STOPPER

24434-KT7-000

$9.13

18

SPRING, DRUM STOPPER

24435-MM5-000

Unavailable

19

SPINDLE, GEARSHIFT

24610-MM5-000

Unavailable

20

SPRING, SHIFT RETURN

24651-KT7-000

Unavailable

21

PIN, SHIFT RETURN SPRING

24652-035-000

$4.01

22

PLATE, SHIFT DRUM BEARING SETTING

24655-MM5-000

$11.43

23

BOLT, SPECIAL (7X18)

90041-MB0-000

$4.92

24

WASHER, LOCK

90407-MB0-000

$2.66

25

WASHER (14MM)

90451-155-000

$3.78

26

WASHER (8MM)

90485-040-000

$1.77

27

BEARING, BALL (16005) (NTN CORP.)

91008-374-003

$15.03

28

PIN, DOWEL (8X31.5)

91104-KT7-000

$5.11

29

CIRCLIP (OUTER) (14MM)

94510-14000

$1.49

30

BOLT, FLANGE (6X14)

95701-06014-08

$1.55

31

BOLT, FLANGE (6X45)

95701-06045-08

$2.06

32

ROLLER (4X8)

96220-40080

$1.49
