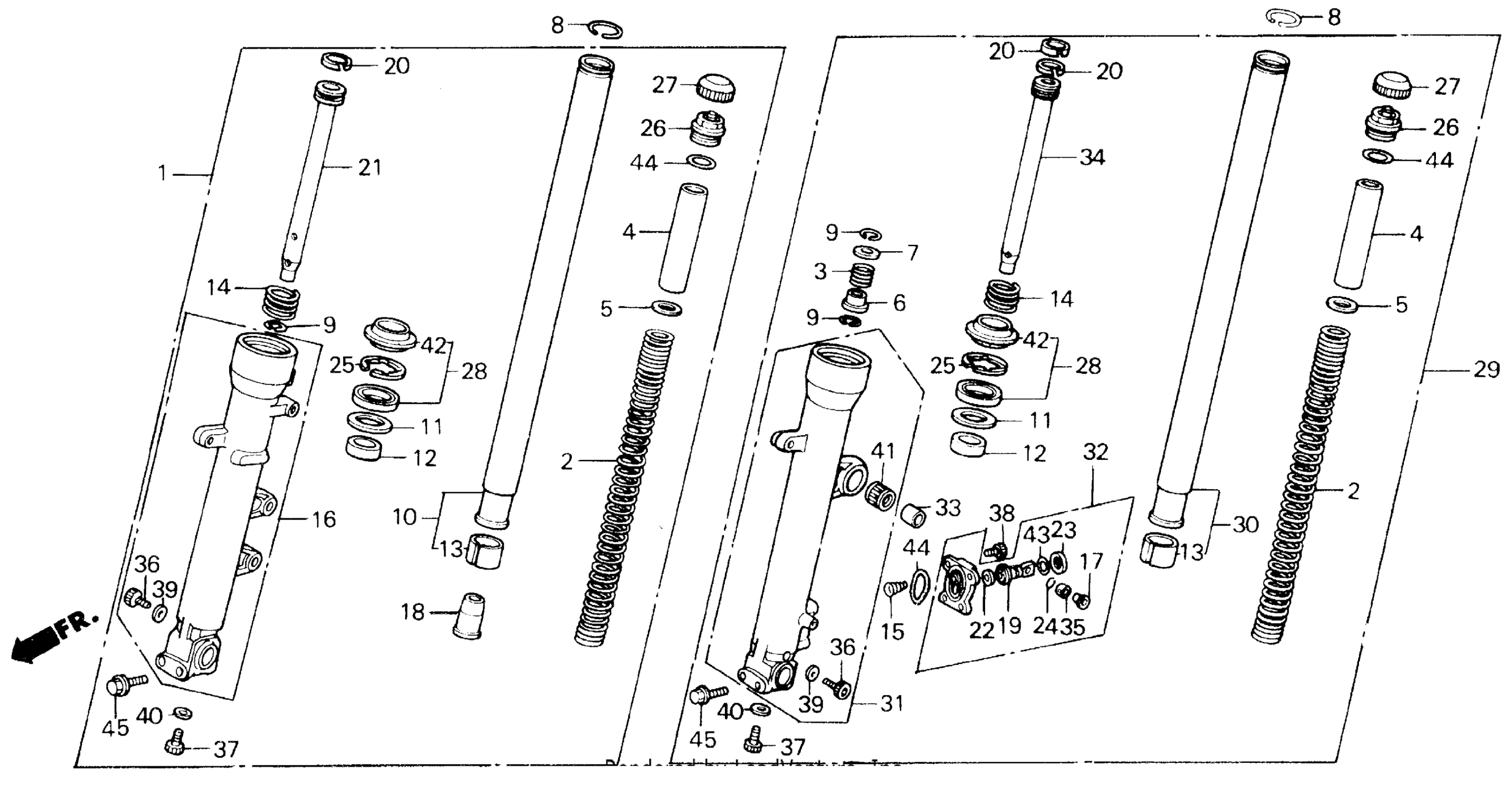

Honda CBR1000FA (88) HURRICANE 1000, USA, VIN# 1HFSC210-JA100001 TO 1HFSC210-JA100480 FRONT FORK Diagram

#

Description
Price

1

FORK ASSY., R. FR. (SHOWA)

51400-MM5-003

Unavailable

2

SPRING, FR. FORK (SHOWA)

51401-MM5-003

Unavailable

3

SPRING, OIL LOCK

51402-MB7-611

$5.54

4

COLLAR, SPRING (SHOWA)

51402-MN0-003

$21.08

5

SEAT, SPRING

51403-KF0-003

$4.78

6

VALVE, OIL LOCK

51403-MB7-611

$10.85

7

SEAT, SPRING

51404-MB7-611

$5.26

8

RING, STOPPER

51405-MB4-003

$6.08

9

RING, STOPPER

51405-MB7-611

$2.92

10

PIPE, R. FR. FORK (SHOWA)

51410-MM5-003

Unavailable

11

RING, BACK-UP

51412-MB4-003

$9.65

12

BUSH, GUIDE (SHOWA) This part replaces 51414-MB4-003.

51414-KCR-003

$14.02

13

BUSH, SLIDER (SHOWA)

51415-KCR-003

$12.27

13

BUSH, SLIDER (SHOWA) This part replaces 51415-MM8-003.

51415-KCR-003

$12.27

14

SPRING, FR. REBOUND

51416-KF0-003

$7.28

15

SPRING, PISTON

51418-ML7-003

Unavailable

16

CASE, R. (LOWER) (SHOWA)

51421-MM5-003

Unavailable

17

COLLAR, PISTON

51423-MJ0-003

$11.76

18

PIECE, OIL LOCK (SHOWA)

51432-MM5-003

Unavailable

19

PISTON

51436-ML7-003

Unavailable

20

RING, PISTON (SHOWA)

51437-MM5-003

$5.31

21

PIPE, SEAT (SHOWA)

51440-MM5-003

Unavailable

22

RUBBER, STOPPER (NOT AVAILABLE)

51441-ML7-003

Unavailable

23

BOOT, PISTON CASE

51442-MJ0-003

$9.72

24

RING, STOPPER

51445-MJ0-003

$2.59

25

RING, OIL SEAL STOPPER

51447-KA4-711

$4.53

26

BOLT ASSY., FR. FORK (SHOWA)

51450-MM5-003

Unavailable

27

CAP, AIR VALVE

51456-MB2-003

Unavailable

28

SEAL SET, FR. FORK (SHOWA) This part replaces 51490-MM5-305.

51490-MN8-305

$35.20

28

SEAL SET, FR. FORK (SHOWA) This part replaces 51490-MM8-305.

51490-MN8-305

$35.20

28

SEAL SET, FR. FORK (SHOWA)

51490-MN8-305

$35.20

29

FORK ASSY., L. FR. (SHOWA) This part replaces 51500-MM5-003.

51500-MM5-013

Unavailable

29

FORK ASSY., L. FR. (SHOWA)

51500-MM5-013

Unavailable

30

PIPE, L. FR. FORK (SHOWA)

51510-MM5-003

Unavailable

31

CASE, L. (LOWER) (SHOWA)

51521-MM5-003

Unavailable

32

CASE, PISTON This part replaces 51530-ML7-003.

51530-ML7-013

Unavailable

32

CASE, PISTON

51530-ML7-013

Unavailable

33

COLLAR, L. FR. CALIPER BRACKET

51536-ML7-000

$11.73

34

PIPE B, SEAT (SHOWA)

51540-MM5-003

Unavailable

35

BUSH, RUBBER

51545-MJ0-003

$9.38

36

BOLT, SOCKET (6X8)

90111-MK7-671

Unavailable

37

BOLT, SOCKET (8MM) (SHOWA)

90116-KV3-701

$3.89

37

BOLT, SOCKET (8MM) This part replaces 90116-ML4-003.

90116-KV3-701

$3.89

38

BOLT, SOCKET (5X13.5)

90116-ML7-003

$5.63

39

GASKET, FR. FORK DRAIN VALVE

90543-273-000

$2.46

40

WASHER, SPECIAL (8MM)

90544-283-000

$2.87

41

BEARING, NEEDLE (1422)

91071-ML7-003

$43.08

42

DUST SEAL

91254-MM8-003

$17.88

43

O-RING

91304-ML7-003

Unavailable

44

O-RING (21.7X3.5) (SHOWA)

91356-KF0-003

$3.76

45

BOLT, FLANGE (8X45)

96300-08045-07

$3.55

45

BOLT, FLANGE (8X45) (SOURCE: VINTAGE PARTS INC.) This part replaces 96500-08045-07.

96300-08045-07

$3.55
