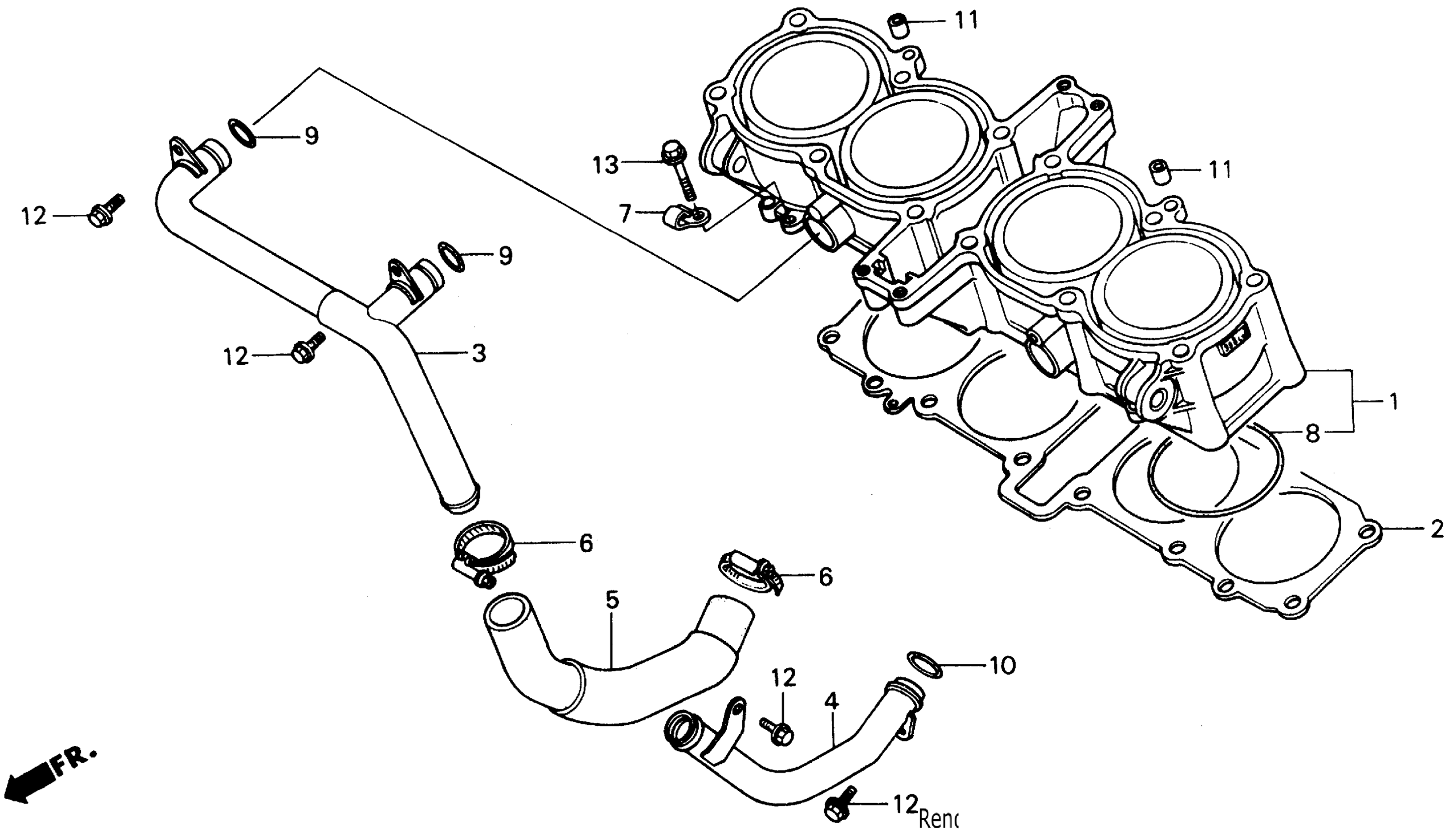

Honda CBR1000FA (88) HURRICANE 1000, USA, VIN# 1HFSC210-JA100001 TO 1HFSC210-JA100480 CYLINDER Diagram

CYLINDER This part replaces 12100-MM5-000.

12100-MM5-640

Unavailable

GASKET, CYLINDER This part replaces 12191-MM5-004.

12191-MS2-611

Unavailable

GASKET, CYLINDER

12191-MS2-611

Unavailable

PIPE A, WATER

19504-MM5-000

Unavailable

PIPE D, WATER This part replaces 19507-MM5-000.

19507-MM5-305

Unavailable

PIPE D, WATER

19507-MM5-305

Unavailable

HOSE, WATER CONNECTING (A)

19510-MM5-000

Unavailable

CLAMP, WATER HOSE

19516-MB6-000

$13.31

O-RING (83X2) (NOK)

91301-MM5-004

Unavailable

O-RING (18.3X2.3) (ARAI)

91301-147-023

$2.03

O-RING (24X3)

91312-KM9-003

$3.27

PIN A, DOWEL (10X16)

94301-10160

$2.80

BOLT, FLANGE (6X14)

95701-06014-00

$0.93

BOLT, FLANGE (6X25)

95701-06025-00

$1.66
