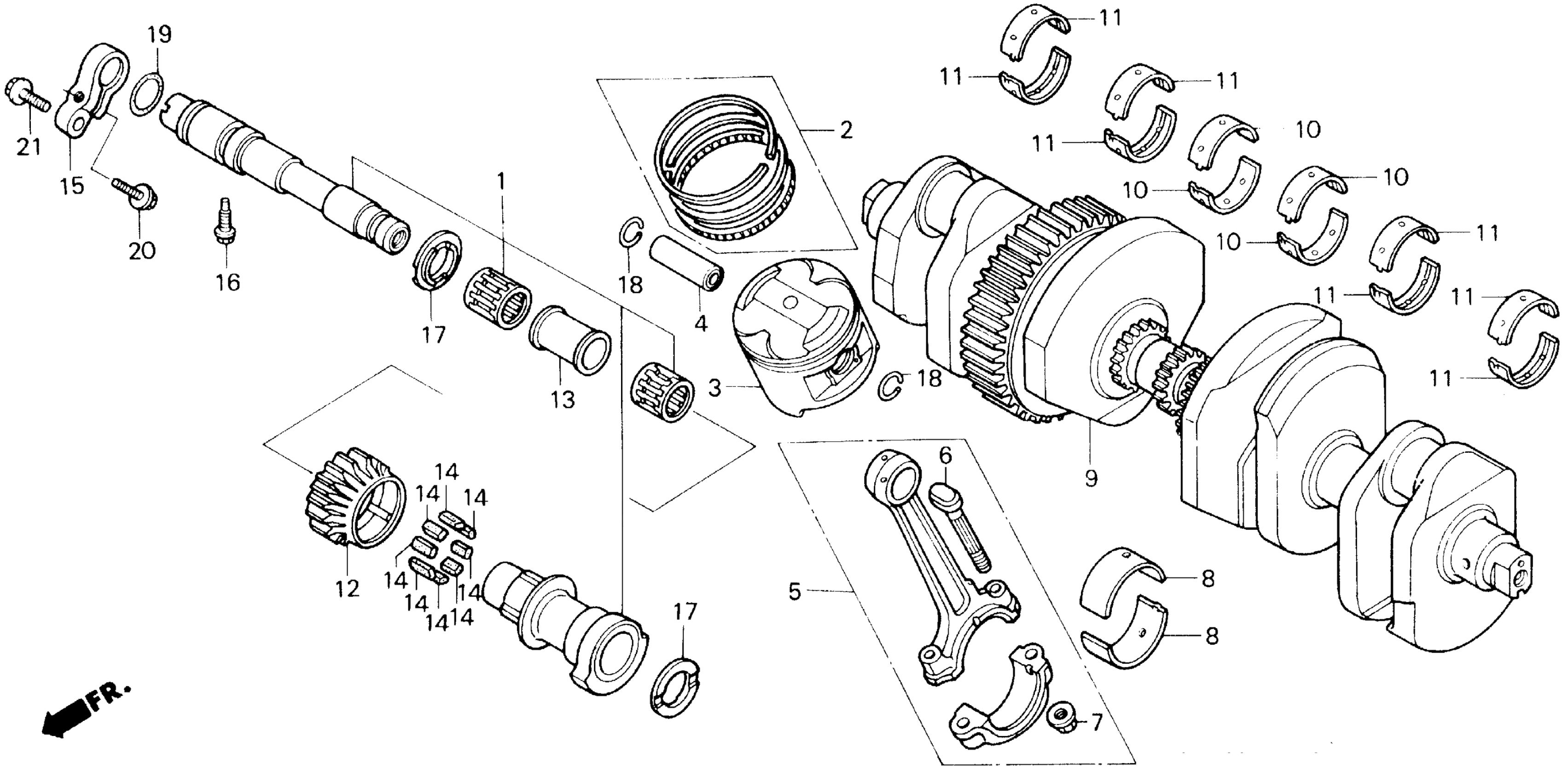

Honda CBR1000FA (88) HURRICANE 1000, USA, VIN# 1HFSC210-JA100001 TO 1HFSC210-JA100480 CRANKSHAFT Diagram

BALANCER SET This part replaces 06130-MM5-305.

06130-MM5-315

Unavailable

RING SET, PISTON (STD)

13011-MM5-640

Unavailable

RING SET, PISTON (OS 0.25)

13012-MM5-640

Unavailable

RING SET, PISTON (OS 0.50)

13013-MM5-640

Unavailable

PISTON (STD) This part replaces 13101-MM5-003.

13101-MS2-610

Unavailable

PISTON (STD)

13101-MS2-610

Unavailable

PISTON (OS 0.25) This part replaces 13102-MM5-305.

13102-MS2-305

Unavailable

PISTON (OS 0.25)

13102-MS2-305

Unavailable

PISTON (OS 0.50) This part replaces 13103-MM5-305.

13103-MS2-305

Unavailable

PISTON (OS 0.50)

13103-MS2-305

Unavailable

PIN, PISTON This part replaces 13111-MM5-000.

13111-MM5-640

Unavailable

PIN, PISTON

13111-MM5-640

Unavailable

ROD ASSY. A, CONNECTING (NOT AVAILABLE)

13201-MM5-000

Unavailable

ROD ASSY., CONNECTING This part replaces 13202-MM5-000.

13210-MZ1-000

Unavailable

ROD ASSY., CONNECTING This part replaces 13202-MM5-640.

13210-MZ1-000

Unavailable

ROD ASSY., CONNECTING This part replaces 13202-MS2-610.

13210-MZ1-000

Unavailable

ROD ASSY. C, CONNECTING (NOT AVAILABLE)

13203-MM5-000

Unavailable

ROD ASSY., CONNECTING This part replaces 13203-MM5-640.

13210-MZ1-000

Unavailable

ROD ASSY., CONNECTING This part replaces 13203-MS2-610.

13210-MZ1-000

Unavailable

ROD ASSY., CONNECTING This part replaces 13204-MM5-000.

13210-MZ1-000

Unavailable

ROD ASSY., CONNECTING This part replaces 13204-MM5-640.

13210-MZ1-000

Unavailable

ROD ASSY. E, CONNECTING (NOT AVAILABLE)

13205-MM5-000

Unavailable

ROD ASSY., CONNECTING This part replaces 13205-MM5-640.

13210-MZ1-000

Unavailable

ROD ASSY., CONNECTING

13210-MZ1-000

Unavailable

BOLT, CONNECTING ROD

13213-MM5-000

Unavailable

NUT, CONNECTING ROD

13215-ML7-000

$3.89

BEARING A, CONNECTING ROD (BROWN) This part replaces 13224-MM5-000.

13224-MS2-611

$14.43

BEARING A, CONNECTING ROD (BROWN) This part replaces 13224-MM5-003.

13224-MS2-611

$14.43

BEARING A, CONNECTING ROD (BROWN)

13224-MS2-611

$14.43

BEARING B, CONNECTING ROD (GREEN) This part replaces 13225-MM5-000.

13225-MS2-611

$14.43

BEARING B, CONNECTING ROD (GREEN) This part replaces 13225-MM5-003.

13225-MS2-611

$14.43

BEARING B, CONNECTING ROD (GREEN)

13225-MS2-611

$14.43

BEARING C, CONNECTING ROD (YELLOW) This part replaces 13226-MM5-000.

13226-MS2-611

$14.43

BEARING C, CONNECTING ROD (YELLOW) This part replaces 13226-MM5-003.

13226-MS2-611

$14.43

BEARING C, CONNECTING ROD (YELLOW)

13226-MS2-611

$14.43

CRANKSHAFT This part replaces 13300-MM5-000.

13300-MS2-871

Unavailable

CRANKSHAFT This part replaces 13300-MM5-641.

13300-MS2-871

Unavailable

CRANKSHAFT

13300-MS2-871

Unavailable

BEARING A, MAIN (14MM BROWN) This part replaces 13311-MM5-000.

13311-MM5-003

$14.72

BEARING A, MAIN (14MM BROWN)

13311-MM5-003

$14.72

BEARING B, MAIN (14MM GREEN) This part replaces 13312-MM5-000.

13312-MM5-003

$14.72

BEARING B, MAIN (14MM GREEN)

13312-MM5-003

$14.72

BEARING C, MAIN (14MM YELLOW)

13313-MM5-000

$14.72

BEARING C, MAIN (14MM YELLOW)

13313-MM5-003

$14.72

BEARING D, MAIN (14MM PINK) This part replaces 13314-MM5-000.

13314-MM5-003

$14.72

BEARING D, MAIN (14MM PINK)

13314-MM5-003

$14.72

BEARING A, MAIN (17MM GREEN)

13315-MJ0-010

$10.04

BEARING B, MAIN (17MM YELLOW)

13316-MJ0-010

$10.16

BEARING C, MAIN (17MM PINK)

13317-MJ0-010

$10.16

BEARING D, MAIN (17MM) (BROWN) (DAIDO) This part replaces 13318-MM5-000.

13318-MM5-004

$14.72

BEARING D, MAIN (17MM) (BROWN) (DAIDO)

13318-MM5-004

$14.72

GEAR, BALANCER (21T)

13421-MM5-000

Unavailable

COLLAR, DISTANCE

13433-MM5-000

$15.08

RUBBER, DAMPER

13435-MM5-000

$2.39

HOLDER, BALANCER SHAFT

13436-MM5-000

$55.44

BOLT, SPECIAL (6X18)

90004-MM5-000

$2.23

WASHER, BALANCER SIDE (A)

90457-MM5-000

$5.38

CLIP, PISTON PIN (1.2X20)

90601-KA5-000

$1.49

O-RING (16X1.9)

91306-329-000

$2.92

BOLT, FLANGE (6X18)

95701-06018-08

$1.62

BOLT, FLANGE (8X25)

95701-08025-00

$1.79
