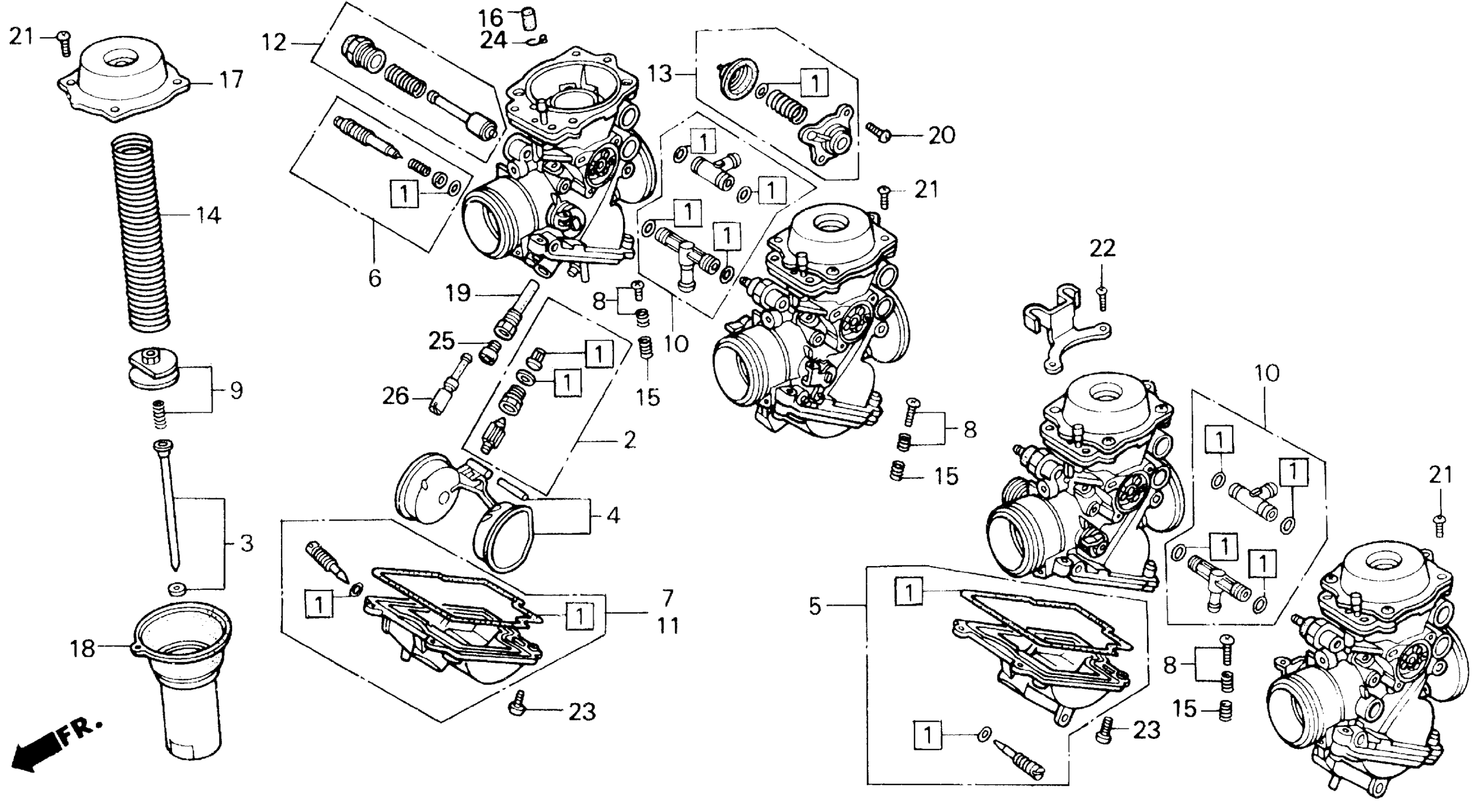

Honda CBR1000FA (88) HURRICANE 1000, USA, VIN# 1HFSC210-JA100001 TO 1HFSC210-JA100480 CARBURETOR (COMPONENT) Diagram

#

Description
Price

1

GASKET SET This part replaces 16010-MM5-671.

16010-MM5-505

Unavailable

1

GASKET SET This part replaces 16010-MM5-901.

16010-MM5-505

Unavailable

2

VALVE SET, FLOAT This part replaces 16011-ML7-721.

16011-MM4-004

Unavailable

2

VALVE SET, FLOAT This part replaces 16011-MM1-671.

16011-MM4-004

Unavailable

2

VALVE SET, FLOAT

16011-MM4-004

Unavailable

2

VALVE SET, FLOAT This part replaces 16011-MM5-671.

16011-MM4-004

Unavailable

3

NEEDLE SET, JET

16012-MM5-671

Unavailable

4

FLOAT SET

16013-MAH-000

$49.54

4

FLOAT SET This part replaces 16013-ML7-004.

16013-MAH-000

$49.54

5

CHAMBER SET, FLOAT (A)

16015-MM5-601

Unavailable

6

SCREW SET A

16016-MM5-671

Unavailable

7

CHAMBER SET, FLOAT (B)

16023-MM5-601

Unavailable

8

SCREW SET This part replaces 16029-KE8-004.

16029-KEJ-900

Unavailable

9

PLATE SET, VALVE (NOT AVAILABLE) This part replaces 16037-MK7-771.

16037-MK7-772

Unavailable

9

PLATE SET, VALVE

16037-MK7-772

Unavailable

10

GASKET B SET

16040-MM5-601

Unavailable

12

VALVE SET, STARTER

16046-MM5-601

Unavailable

13

VALVE SET, AIR CUT

16048-MM5-671

Unavailable

14

SPRING, COMPRESSION COIL

16051-MM5-601

Unavailable

15

SPRING

16052-ME9-672

$5.67

16

CAP

16097-ME9-671

Unavailable

17

TOP

16107-MM5-601

Unavailable

18

PISTON, VACUUM

16111-MM5-601

Unavailable

19

HOLDER, NEEDLE JET (NOT AVAILABLE)

16165-MB0-771

Unavailable

20

SCREW, PAN (4X8)

93500-04008-0A

$1.49

21

SCREW, PAN (4X10)

93500-04010-0A

$1.49

22

SCREW, PAN (4X12)

93500-04012-0A

$1.49

23

SCREW, PAN (4X14)

93500-04014-0A

$1.49

24

CLIP, TUBE (B6.5)

95002-02650

$1.49

25

JET, MAIN (#120) This part replaces 99101-GHB-1200.

99101-MBZ-1200

$9.11

25

JET, MAIN (#120) This part replaces 99101-393-1200.

99101-MBZ-1200

$9.11

26

JET, SLOW (#35)

99103-440-0350

$13.18
