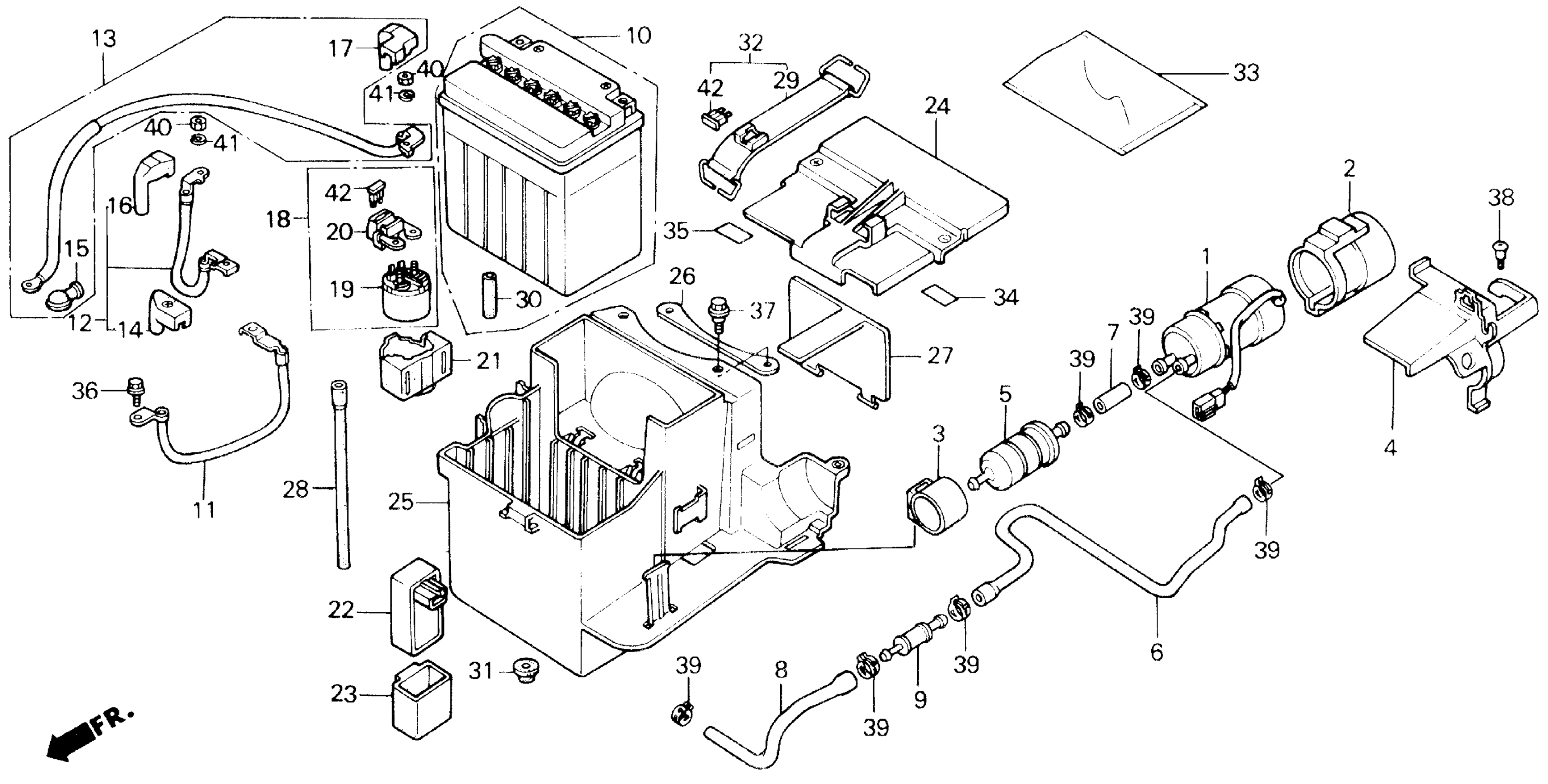

Honda CBR1000FA (88) HURRICANE 1000, USA, VIN# 1HFSC210-JA100001 TO 1HFSC210-JA100480 BATTERY Diagram

#

Description
Price

1

PUMP ASSY., FUEL (MITSUBISHI)

16710-MM5-005

Unavailable

2

RUBBER, FUEL PUMP

16711-MB6-000

Unavailable

3

HOLDER, STRAINER

16711-MF2-000

$17.60

4

BAND, FUEL PUMP

16712-MM5-000

Unavailable

5

FILTER, FUEL

16900-MG8-003

$23.49

6

TUBE A, FUEL

16953-MM5-000

Unavailable

7

TUBE C, FUEL

16956-MM5-000

Unavailable

8

TUBE D, FUEL

16957-MM5-000

Unavailable

9

JOINT, FUEL TUBE

16966-MJ4-670

Unavailable

10

BATTERY (YB14L-B2) (YUASA) This part replaces 31500-MM5-671.

31500-MM5-675AH

Unavailable

10

BATTERY (YB14L-B2) (YUASA) This part replaces 31500-MM5-672.

31500-MM5-675AH

Unavailable

10

BATTERY (YB14L-B2) (YUASA) This part replaces 31500-MM5-674.

31500-MM5-675AH

Unavailable

10

BATTERY (YB14L-B2) (YUASA) This part replaces 31500-MM5-675.

31500-MM5-675AH

Unavailable

11

CABLE ASSY., GROUND

32350-MM5-000

Unavailable

12

CABLE, STARTER MAGNETIC BATTERY This part replaces 32401-MM5-000.

32401-MW7-600

Unavailable

12

CABLE, STARTER MAGNETIC BATTERY

32401-MW7-600

Unavailable

13

CABLE, STARTER MOTOR

32410-MM5-000

Unavailable

14

COVER, BATTERY

32411-MM5-000

Unavailable

15

COVER, STARTER MOTOR TERMINAL

32411-230-000

$6.40

15

COVER, STARTER MOTOR TERMINAL This part replaces 32411-253-000.

32411-230-000

$6.40

16

COVER B, MAGNETIC SWITCH

32416-MF5-000

$5.21

17

COVER, MAGNETIC SWITCH

32416-MM5-300

Unavailable

18

SWITCH ASSY., STARTER MAGNETIC

35850-MK3-671

$127.45

19

SWITCH, STARTER MAGNETIC

35851-MF5-751

$106.43

20

HOLDER ASSY., FUSE

35855-MG7-751

$37.26

21

RUBBER, SHOCK ABSORBER

35856-MF5-751

$10.03

22

RELAY, FUEL CUT

36100-MM5-008

Unavailable

23

SUSPENSION, FUEL CUT RELAY

36101-MB1-000

$6.54

24

LID, BATTERY BOX (A)

50324-MM5-000

Unavailable

25

BOX, BATTERY

50325-MM5-000

Unavailable

26

PLATE, BATTERY BOX SETTING

50327-MM5-000

Unavailable

27

LID B, BATTERY BOX This part replaces 50328-MM5-000.

50328-MS2-000

Unavailable

27

LID B, BATTERY BOX

50328-MS2-000

Unavailable

28

TUBE, BATTERY

50329-MM5-000

Unavailable

29

BAND, BATTERY

50330-MM5-000

Unavailable

30

TUBE A, BATTERY This part replaces 50331-MM5-000.

50331-MW7-000

Unavailable

30

TUBE A, BATTERY

50331-MW7-000

Unavailable

31

GROMMET, BATTERY BOX

50332-MM5-000

Unavailable

32

BAND ASSY., BATTERY

50335-MM5-000

Unavailable

33

BAG, SERVICE BOOK This part replaces 77251-342-000.

77251-GR1-000

$4.30

34

MARK, BATTERY CAUTION (NOT AVAILABLE)

87506-MM5-600

Unavailable

35

MARK, RADIATOR CAUTION (NOT AVAILABLE)

87508-415-670

Unavailable

36

BOLT, FLANGE (6X8) (NOT AVAILABLE)

90014-460-000

Unavailable

37

BOLT (6MM)

90109-434-000

$2.77

38

SCREW, RR. COVER

90114-GB6-920

$1.50

39

CLAMP, CANISTER HOSE

90682-SA0-671

$7.67

40

NUT, HEX. (6MM)

94002-06080-0S

$1.49

41

WASHER, SPRING (6MM)

94111-06800

$1.49

42

FUSE, BLADE (30A)

98200-33000

$1.49
