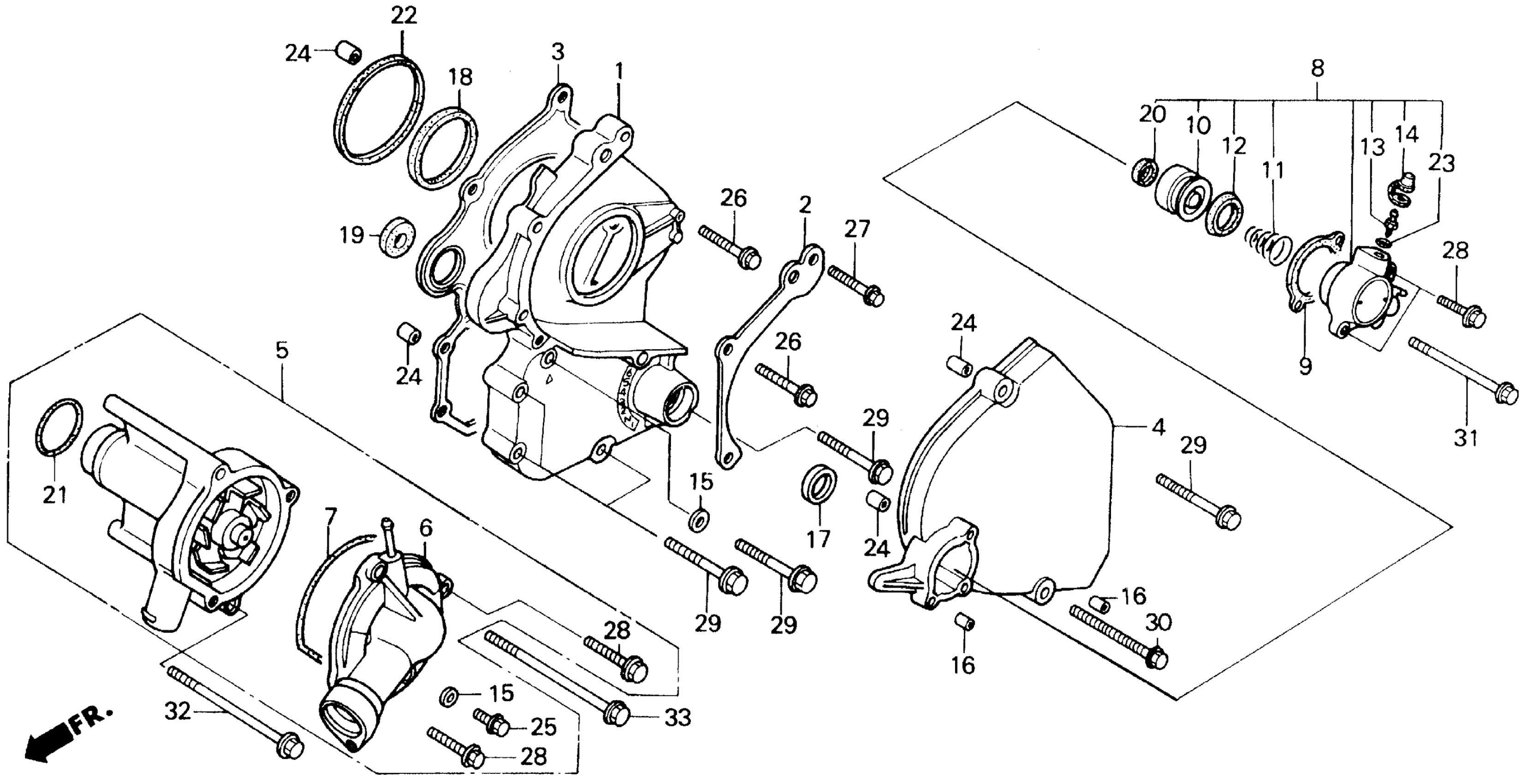

Honda CBR1000FA (87) 1000 HURRICANE, USA, VIN# 1HFSC210-HA001001 TO 1HFSC210-HA004655 WATER PUMP Diagram

#

Description
Price

1

HOLDER SET, L. SIDE This part replaces 11360-MM5-000.

11360-MM5-305

Unavailable

1

HOLDER SET, L. SIDE

11360-MM5-305

Unavailable

1

HOLDER SET, L. SIDE This part replaces 11360-MM5-306.

11360-MM5-305

Unavailable

2

PLATE, DRIVE CHAIN GUIDE

11365-MM5-000

Unavailable

3

GASKET, L. SIDE (NOT AVAILABLE) This part replaces 11394-MM5-000.

11394-MW7-790

Unavailable

3

GASKET, L. SIDE (NOT AVAILABLE) This part replaces 11394-MM5-003.

11394-MW7-790

Unavailable

3

GASKET, L. SIDE (NOT AVAILABLE) This part replaces 11394-MS2-611.

11394-MW7-790

Unavailable

3

GASKET, L. SIDE

11394-MW7-790

Unavailable

4

COVER ASSY., L. RR. CRANKCASE (NOT AVAILABLE)

11650-MM5-000

Unavailable

5

WATER PUMP ASSY. | Use up to Engine SN 2014706 This part replaces 19200-MM5-000.

19200-MM5-640

Unavailable

5

WATER PUMP ASSY. This part replaces 19200-MM5-010.

19200-MM5-640

Unavailable

5

WATER PUMP ASSY.

19200-MM5-640

Unavailable

6

COVER, WATER PUMP | Use up to Engine SN 2014445 This part replaces 19221-MM5-000.

19221-MM5-010

Unavailable

6

COVER, WATER PUMP

19221-MM5-010

Unavailable

7

GASKET, WATER PUMP COVER

19226-MM5-003

$5.03

8

CYLINDER ASSY., SLAVE (NOT AVAILABLE)

22860-MM5-670

Unavailable

9

GASKET, SLAVE CYLINDER This part replaces 22862-KE7-000.

22862-MGJ-D00

$4.75

9

GASKET, SLAVE CYLINDER This part replaces 22862-MW7-650.

22862-MGJ-D00

$4.75

10

PISTON, SLAVE CYLINDER

22863-MJ8-003

$24.46

11

SPRING, SLAVE CYLINDER

22864-MB0-003

$5.97

12

CUP, PISTON

22865-MJ8-003

$10.55

13

SCREW, BLEEDER

43352-MG9-006

$5.03

14

CAP, BLEEDER This part replaces 43353-MG9-006.

43353-461-771

$4.83

14

CAP, BLEEDER This part replaces 43353-443-761.

43353-461-771

$4.83

14

CAP, BLEEDER

43353-461-771

$4.83

15

WASHER, SEALING (6.5MM)

90463-ML7-000

$2.80

16

PIN, DOWEL (8X10)

91103-429-000

$2.80

17

OIL SEAL (13X22X5)

91204-KE8-003

$2.97

18

OIL SEAL (40X55X7) (ARAI)

91205-MM5-003

$13.26

19

OIL SEAL (8X16X6) This part replaces 91208-MS2-611.

91254-792-003

$2.80

19

OIL SEAL (8X16X6) This part replaces 91208-689-005.

91254-792-003

$2.80

20

OIL SEAL (8X18X5) (NISSIN)

91209-MB0-003

$3.87

21

O-RING (32.95X2.62) (ARAI)

91302-MB0-013

Unavailable

22

RING, OIL SEAL (ARAI)

91302-MM5-003

Unavailable

23

O-RING (5.8X1.9) (NISSIN)

91355-MG9-006

$3.00

24

PIN A, DOWEL (8X14) (YAMADA)

94301-08140

$2.62

25

BOLT, FLANGE (6X12)

95701-06012-08

$1.50

26

BOLT, FLANGE (6X35)

95801-06035-00

$0.99

27

BOLT, FLANGE (6X40)

95801-06040-00

$1.47

28

BOLT, FLANGE (6X25)

96001-06025-00

$2.49

29

BOLT, FLANGE (6X40)

96001-06040-00

$2.59

30

BOLT, FLANGE (6X65)

96001-06065-00

$2.80

31

BOLT, FLANGE (6X75)

96001-06075-00

$2.06

32

BOLT, FLANGE (6X85)

96001-06085-00

$3.14

33

BOLT, FLANGE (6X100)

96001-06100-00

$1.81
