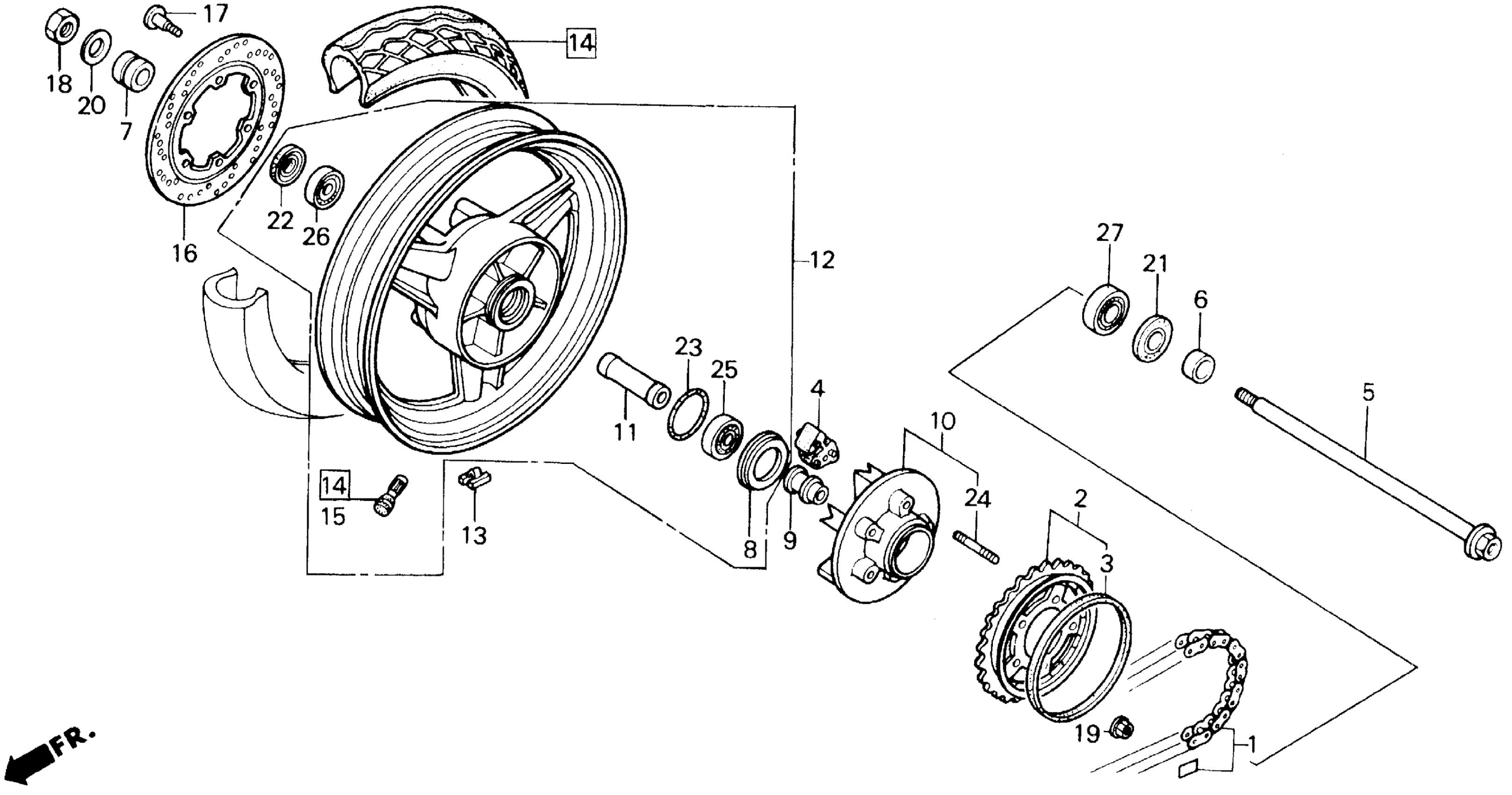

Honda CBR1000FA (87) 1000 HURRICANE, USA, VIN# 1HFSC210-HA001001 TO 1HFSC210-HA004655 REAR WHEEL Diagram

#

Description
Price

1

CHAIN SET, DRIVE (RK50LF0X114LE) (TAKASAGO)

405A3-MM5-670

Unavailable

2

SPROCKET, FINAL DRIVEN

41200-MB6-630

Unavailable

2

SPROCKET, FINAL DRIVEN This part replaces 41200-MM5-000.

41200-MB6-630

Unavailable

3

ARRESTER, NOISE

41212-MA6-000

Unavailable

4

DAMPER, RR. WHEEL

41241-MM5-000

$13.84

5

AXLE, RR. WHEEL

42301-MM5-000

$100.43

6

COLLAR, RR. WHEEL SIDE

42311-MG5-670

$16.43

7

COLLAR, RR. BRAKE SIDE

42313-ML7-000

Unavailable

8

SLEEVE, RR. WHEEL HUB

42604-438-710

Unavailable

9

SLEEVE, RR. AXLE

42605-393-000

Unavailable

10

FLANGE, FINAL DRIVEN

42610-MM5-000

Unavailable

11

COLLAR, RR. AXLE DISTANCE This part replaces 42620-MM5-000.

42620-MZ1-000

Unavailable

11

COLLAR, RR. AXLE DISTANCE

42620-MZ1-000

Unavailable

12

WHEEL SET, RR. *NH182M* (INTELLIGENT SILVER) (NOT AVAILABLE)

42650-MM5-305ZC

Unavailable

12

WHEEL SET, RR. *R134* (FIGHTING RED)

42650-MM5-305ZB

Unavailable

13

WEIGHT, BALANCE (10G) This part replaces 42704-MB0-000.

42704-MCF-D60

$12.74

13

WEIGHT, BALANCE (20G) This part replaces 42705-MB0-000.

42705-MCF-D60

$15.38

13

WEIGHT, BALANCE (30G) This part replaces 42706-MB0-000.

42706-MCF-D60

$14.48

13

WEIGHT, BALANCE (30)

42706-MCF-D60

$14.48

14

TIRE ASSY., RR. (140/80V17) (V270 G548) (BS)

42710-MM5-003

Unavailable

14

TIRE ASSY., RR. (140/80V17) (V270 G548) (BS) This part replaces 42710-MM5-004.

42710-MM5-003

Unavailable

15

VALVE, RIM (BS)

42753-ML7-003

$12.74

15

VALVE, RIM (DUNLOP)

42753-ML7-004

$12.74

16

DISK, RR. BRAKE This part replaces 43351-MM5-000.

43351-MM5-010

Unavailable

17

BOLT, FR. DISK (8X24)

90105-KR3-000

$6.07

18

NUT, AXLE (18MM)

90305-KA4-003

Unavailable

19

NUT, FLANGE (12MM)

90306-KF0-003

$3.85

20

WASHER, PLAIN (18MM)

90501-MG5-670

$10.18

21

OIL SEAL (34X62.2X7)

90753-MG5-670

$12.86

22

DUST SEAL (30X52X7)

91253-442-003

$13.96

23

O-RING (66X3.6)

91258-438-711

Unavailable

24

BOLT, STUD (12X28)

92918-12028-0E

Unavailable

25

BEARING, RADIAL BALL (6204UU)

96150-62040-10

$18.44

26

BEARING, RADIAL BALL (6304UU)

96150-63040-10

$18.04

27

BEARING, RADIAL BALL (6305)

96150-63050-10

Unavailable
