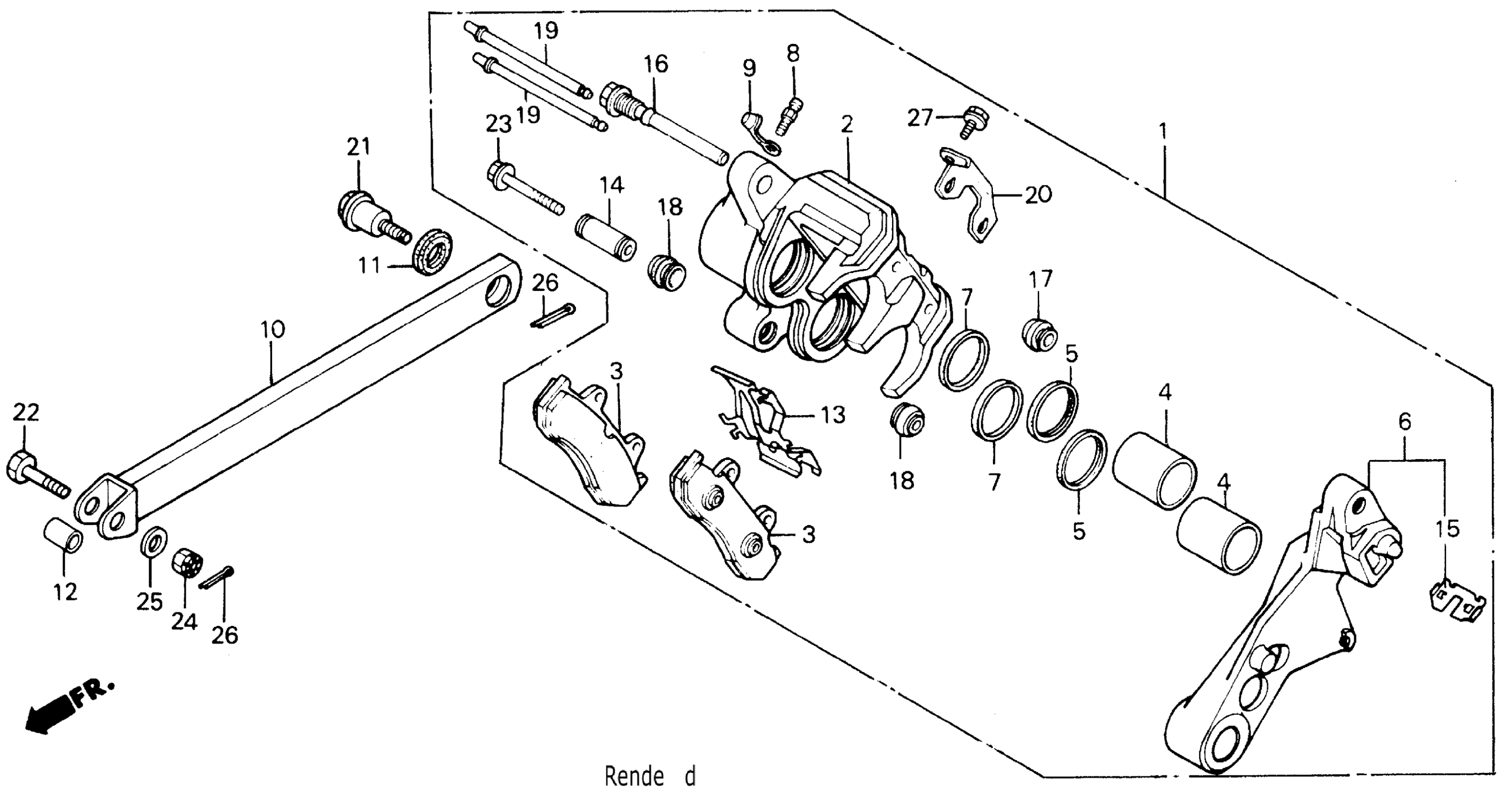

Honda CBR1000FA (87) 1000 HURRICANE, USA, VIN# 1HFSC210-HA001001 TO 1HFSC210-HA004655 REAR BRAKE CALIPER Diagram

#

Description
Price

NI

PAD SET, BRAKE

06435-ML7-415

Unavailable

NI

PAD SET, BRAKE This part replaces 431A0-ML7-007.

06435-ML7-415

Unavailable

1

CALIPER ASSY., RR. (NISSIN) This part replaces 43100-MM5-007.

43100-MM5-027

Unavailable

1

CALIPER ASSY., RR. (NISSIN) This part replaces 43100-MM5-017.

43100-MM5-027

Unavailable

1

CALIPER ASSY., RR. (NISSIN)

43100-MM5-027

Unavailable

2

CALIPER, RR. (NISSIN)

43101-KT8-006

Unavailable

3

PAD, RR. (NISSIN) This part replaces 43105-ML7-007.

43105-ML7-037

Unavailable

3

PAD, RR. (NISSIN) This part replaces 43105-ML7-027.

43105-ML7-037

Unavailable

3

PAD, RR. (NISSIN)

43105-ML7-037

Unavailable

4

PISTON

43107-MA3-006

$32.99

5

DUST SEAL

43109-MA3-006

$5.73

6

BRACKET, RR. (NISSIN) (NOT AVAILABLE)

43110-MM5-006

Unavailable

7

SEAL, PISTON

43209-MA3-006

$7.04

8

SCREW, BLEEDER

43352-568-003

$7.95

9

CAP, BLEEDER

43353-461-771

$5.05

10

ARM, RR. BRAKE STOPPER

43431-MM5-000

Unavailable

11

WASHER, TORQUE LINK

43434-MA3-640

Unavailable

12

COLLAR, LINK

43435-392-000

$5.90

13

SPRING, PAD

45108-MA3-006

$6.28

14

SLEEVE

45111-MA3-006

$13.38

15

RETAINER, BRACKET

45112-445-631

$8.98

16

PIN, BOLT

45131-MA3-006

$17.59

17

BOOT B

45133-MA3-006

$5.46

18

BOOT, PIN

45133-166-016

$3.85

19

PIN, HANGER

45215-MA3-006

$12.77

20

PLATE

45217-MA3-006

$4.45

21

BOLT, TORQUE LINK

90121-KM4-000

Unavailable

22

BOLT, RR. BRAKE STOPPER ARM

90124-392-000

Unavailable

23

BOLT, FLANGE (8X49) This part replaces 90180-MA3-006.

90180-MN8-006

$6.07

24

NUT, SELF-LOCK (8MM)

94011-08000-0S

$9.38

25

WASHER, PLAIN (8MM)

94101-08000

$1.49

26

PIN, COTTER (2.5X18)

94201-25180

Unavailable

27

BOLT, FLANGE (6X10) This part replaces 95700-06010-07.

95701-06010-07

$1.62

27

BOLT, FLANGE (6X10)

95701-06010-07

$1.62
