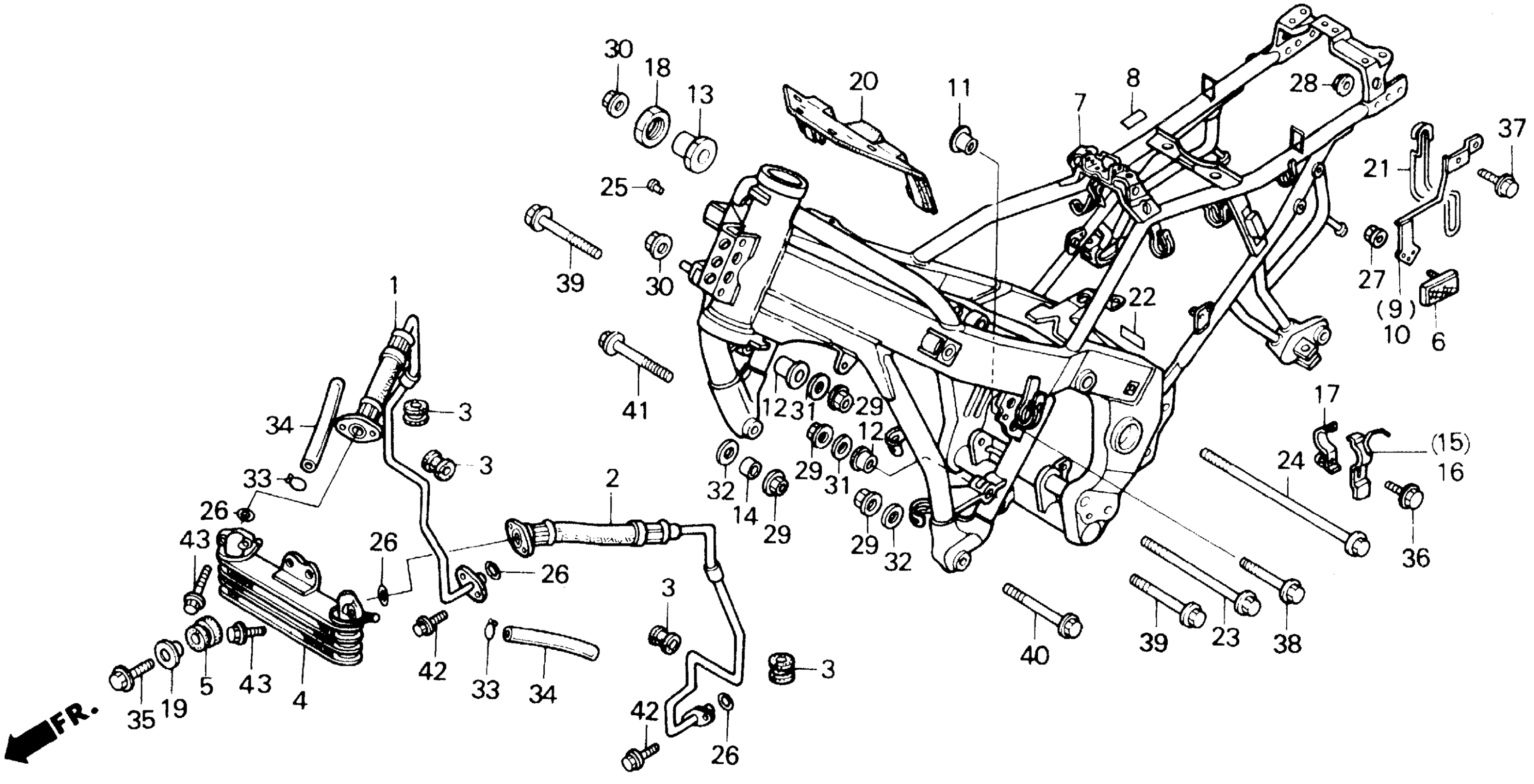

Honda CBR1000FA (87) 1000 HURRICANE, USA, VIN# 1HFSC210-HA001001 TO 1HFSC210-HA004655 FRAME Diagram

#

Description
Price

1

PIPE, R. OIL HOSE

15510-MM5-000

Unavailable

2

PIPE, L. OIL HOSE

15515-MM5-000

Unavailable

3

RUBBER, OIL PIPE CUSHION

15521-MA6-000

$3.70

4

COOLER, OIL

15600-MM5-003

Unavailable

5

RUBBER, RADIATOR MOUNTING

19051-KA3-830

$3.31

6

REFLECTOR, REFLEX

33741-MC7-612

$14.43

7

FRAME This part replaces 50100-MM5-740.

50100-MM5-770

Unavailable

7

FRAME

50100-MM5-770

Unavailable

8

FILM, FRAME PIPE (UPPER)

50159-KR3-300

$4.16

9

STAY, R. REFLECTOR

50185-MM5-670

Unavailable

10

STAY, L. REFLECTOR

50186-MM5-670

Unavailable

11

COLLAR D, ENGINE HANGER

50205-MM5-000

Unavailable

12

COLLAR A, ENGINE HANGER

50209-MM5-000

Unavailable

13

COLLAR, ADJUSTING

50217-MM5-000

Unavailable

14

COLLAR, FR. ENGINE HANGER

50260-MM5-000

Unavailable

15

BAND A, R. TANK BAG

50401-MM5-610

Unavailable

16

BAND A, L. TANK BAG

50402-MM5-610

Unavailable

17

BAND B, TANK BAG

50403-MM5-610

Unavailable

18

NUT, ACCUMULATOR

57071-SB0-800

Unavailable

19

COLLAR, FR. FENDER (WHITE) This part replaces 61104-357-000.

61104-428-010

$4.42

19

COLLAR, FR. FENDER (WHITE) This part replaces 61104-428-000.

61104-428-010

$4.42

20

RUBBER, HEAT GUARD

64114-MM5-000

Unavailable

21

HOOK, RR.

80128-MM5-000

Unavailable

22

LABEL, DAMPER ADJUSTING

87519-MM5-300

Unavailable

23

BOLT, FLANGE (12X247)

90102-MM5-000

Unavailable

24

BOLT, FLANGE (12X365)

90103-MM5-000

Unavailable

25

SCREW, RIVET (1.5X5) (NOT AVAILABLE)

90841-001-000

$1.51

26

O-RING (10X2.6)

91314-ME5-003

$3.54

27

NUT, FLANGE (5MM)

94050-05000

$1.49

28

NUT, FLANGE (8MM)

94050-08000

$1.49

29

NUT, FLANGE (10MM)

94050-10000

$1.59

30

NUT, FLANGE (12MM)

94050-12000

$1.49

31

WASHER, PLAIN (10MM)

94101-10000

$1.49

32

WASHER, FLAT (10MM)

94103-10000

$1.49

33

CLIP, TUBE (C11)

95002-70000

$1.56

34

BULK HOSE, VINYL (7X11X8000) (7X11X150)

95003-19008-60M

Unavailable

35

BOLT, FLANGE (6X22) This part replaces 95700-06022-07.

95701-06022-07

$1.49

35

BOLT, FLANGE (6X22)

95701-06022-07

$1.49

36

BOLT, FLANGE (6X10)

95701-06010-07

$1.62

37

BOLT, FLANGE (8X25)

95701-08025-00

$1.79

38

BOLT, FLANGE (10X45)

95801-10045-00

$2.16

39

BOLT, FLANGE (10X60)

95801-10060-00

$2.25

40

BOLT, FLANGE (10X75)

95801-10075-00

$2.11

41

BOLT, FLANGE (10X85)

95801-10085-00

Unavailable

42

BOLT, FLANGE (6X16) This part replaces 96000-06016-00.

96001-06016-00

$1.49

42

BOLT, FLANGE (6X16)

96001-06016-00

$1.49

43

BOLT, FLANGE (6X22) This part replaces 96000-06022-00.

96001-06022-00

$1.49

43

BOLT, FLANGE (6X22)

96001-06022-00

$1.49
