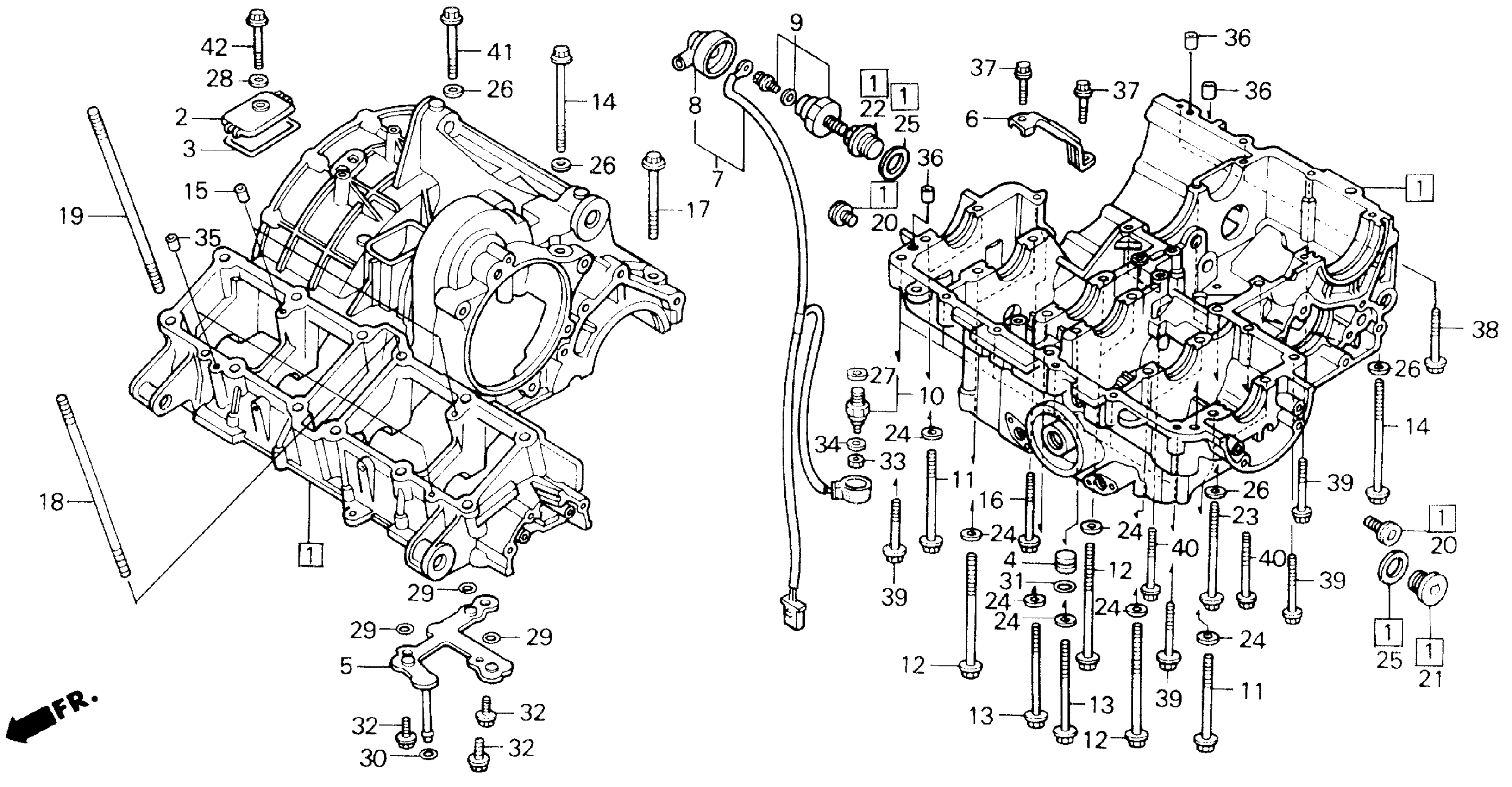

Honda CBR1000FA (87) 1000 HURRICANE, USA, VIN# 1HFSC210-HA001001 TO 1HFSC210-HA004655 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET This part replaces 11000-MM5-000.

11000-MM5-305

Unavailable

1

CRANKCASE SET | Use from Engine SN 2014446 This part replaces 11000-MM5-010.

11000-MM5-305

Unavailable

1

CRANKCASE SET

11000-MM5-305

Unavailable

1

CRANKCASE SET This part replaces 11000-MM5-640.

11000-MM5-305

Unavailable

1

CRANKCASE SET This part replaces 11000-MM5-641.

11000-MM5-305

Unavailable

2

COVER, ALTERNATOR CHAMBER

11103-MM5-000

Unavailable

3

GASKET, ALTERNATOR CHAMBER COVER

11104-MM5-000

Unavailable

4

COLLAR, MAIN GALLERY

11208-MM5-000

Unavailable

5

PLATE, OIL PASSAGE This part replaces 12260-MM5-000.

12260-MS2-610

Unavailable

5

PLATE, OIL PASSAGE This part replaces 12260-MM5-010.

12260-MS2-610

Unavailable

6

GUIDE, OIL PUMP CHAIN (SOURCE: VINTAGE PARTS INC.) This part replaces 15162-MM5-000.

15162-MS2-610

Unavailable

6

GUIDE, OIL PUMP CHAIN

15162-MS2-610

Unavailable

7

SUB-HARNESS, ENGINE

32101-MM5-000

Unavailable

8

COVER, NEUTRAL SWITCH

32550-MJ6-000

Unavailable

9

SWITCH ASSY., OIL PRESSURE (DENSO) This part replaces 35500-MJ4-014.

35500-MJ4-024

$42.43

9

SWITCH ASSY., OIL PRESSURE (DENSO)

35500-MJ4-024

$42.43

10

SWITCH ASSY., NEUTRAL (TOYO)

35600-MM5-003

$18.90

11

BOLT, UBS (9X86)

90001-MM5-000

Unavailable

12

BOLT, UBS (9X131)

90002-MM5-000

Unavailable

13

BOLT, UBS (9X151)

90003-MM5-000

Unavailable

14

BOLT, FLANGE (8X135) This part replaces 90006-MM5-000.

90006-MM5-640

$6.74

14

BOLT, FLANGE (8X135)

90006-MM5-640

$6.74

15

ORIFICE (1.3)

90010-MM5-000

Unavailable

16

BOLT, FLANGE (6X100) This part replaces 90011-PA0-000.

95701-06100-00

$2.79

16

BOLT, FLANGE (6X100) This part replaces 95700-06100.

95701-06100-00

$2.79

16

BOLT, FLANGE (6X100) This part replaces 95700-06100-00.

95701-06100-00

$2.79

16

BOLT, FLANGE (6X100)

95701-06100-00

$2.79

17

BOLT (10X75)

90015-PA9-000

$9.72

18

BOLT, STUD (10X158) (TOKAI TRW)

90031-MM5-003

Unavailable

19

BOLT, STUD (10X153) (NOT AVAILABLE) This part replaces 90032-MM5-000.

90032-MM5-641

Unavailable

19

BOLT, STUD (10X153)

90032-MM5-641

Unavailable

20

BOLT, SPECIAL (10MM)

90042-MM5-000

$6.39

21

BOLT, SEALING (20MM)

90048-ME5-000

$15.56

22

BOLT, SEALING (20MM)

90048-MAL-600

$11.87

22

BOLT, SEALING (20MM) This part replaces 90048-MM5-000.

90048-MAL-600

$11.87

23

BOLT, FLANGE (8X115) (NOT AVAILABLE)

90069-MC7-000

Unavailable

24

WASHER (10MM) This part replaces 90403-ML4-610.

90403-ML4-611

$6.21

25

WASHER, SEALING (20MM)

90442-ME5-000

Unavailable

26

WASHER, SEALING (8MM)

90442-028-000

$1.77

27

WASHER, NEUTRAL

90443-MJ6-000

$1.92

28

WASHER, SEALING (6.5MM) This part replaces 90461-MF2-710.

90463-ML7-000

$2.92

28

WASHER, SEALING (6.5MM)

90463-ML7-000

$2.92

29

O-RING (9.4X2.4) | Use up to Engine SN 2005702

91304-KK3-830

$2.31

29

O-RING (9X2.3) (NOK) | Use from Engine SN 2005703

91313-PC9-003

$3.43

30

O-RING (5.7X2.2) (ARAI)

91308-MB0-003

$2.22

31

O-RING (11.9X2.2)

91370-461-000

$2.39

32

BOLT, HEX. (6X14)

92101-06014-0A

$1.49

33

NUT, HEX. (4MM)

94001-04000-0S

$1.49

34

WASHER, SPRING (4MM)

94111-04800

$1.49

35

PIN A, DOWEL (10X16)

94301-10160

$2.28

36

PIN, DOWEL (10X16)

94303-10160

$2.34

37

BOLT, FLANGE (6X14)

95701-06014-08

$1.55

38

BOLT, FLANGE (6X50)

95701-06050-00

$2.06

39

BOLT, FLANGE (8X40)

95701-08040-00

$1.49

40

BOLT, FLANGE (8X60)

95701-08060-00

$1.49

41

BOLT, FLANGE (8X80)

95701-08080-00

$1.64

42

BOLT, FLANGE (6X55)

96001-06055-00

$1.62
