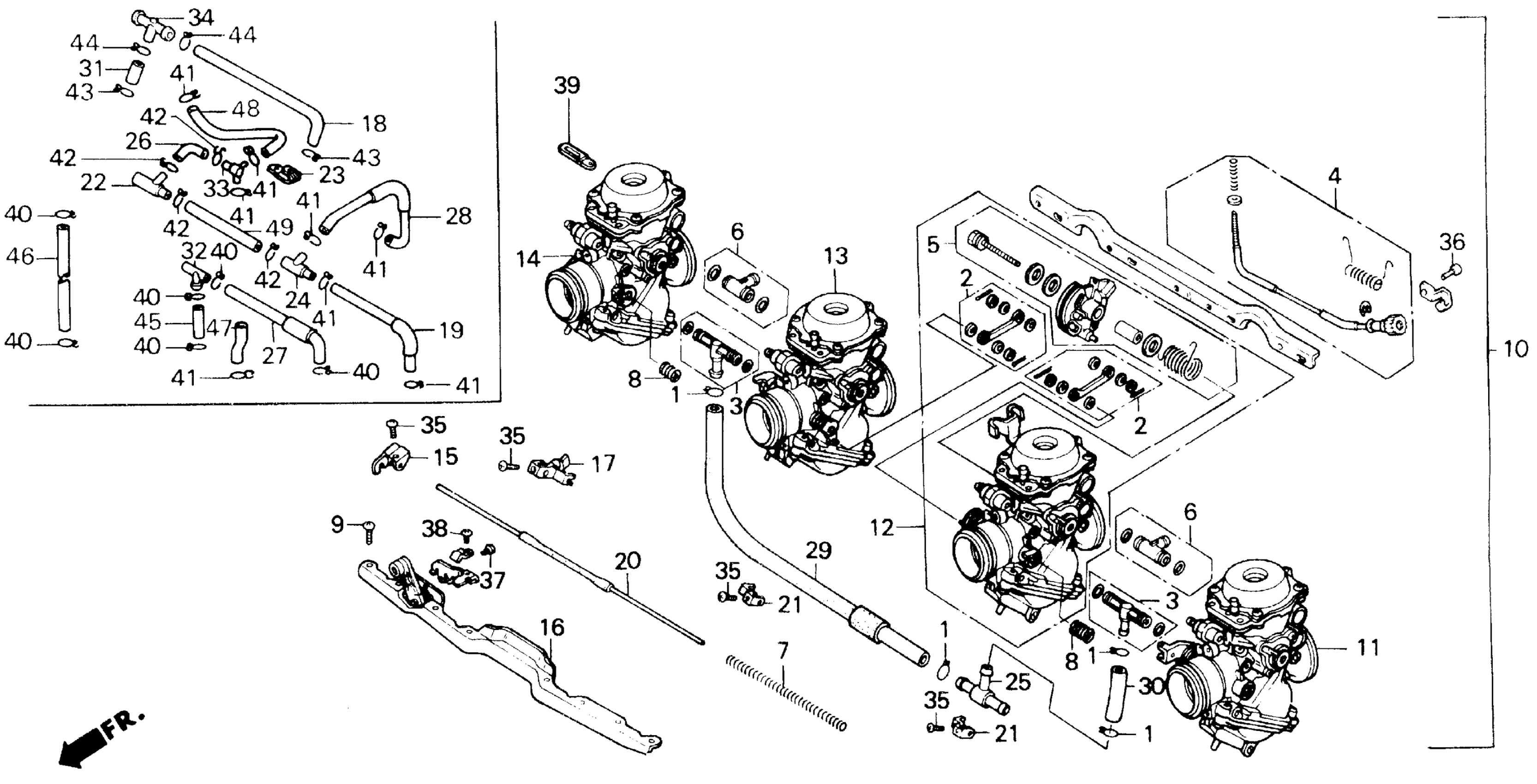

Honda CBR1000FA (87) 1000 HURRICANE, USA, VIN# 1HFSC210-HA001001 TO 1HFSC210-HA004655 CARBURETOR (ASSY.) Diagram

#

Description
Price

1

CLIP, BREATHER TUBE

15772-292-010

$2.92

2

ARM SET, LINK

16018-MM5-601

Unavailable

3

T-JOINT SET (A)

16026-MM4-004

Unavailable

3

T-JOINT SET (A) This part replaces 16026-MM5-601.

16026-MM4-004

Unavailable

4

SCREW SET B This part replaces 16028-MM5-601.

16028-MM5-602

Unavailable

4

SCREW SET B

16028-MM5-602

Unavailable

5

DRUM SET, THROTTLE

16032-MM5-602

Unavailable

6

JOINT SET This part replaces 16047-MA6-003.

16048-KR3-980

$52.03

7

SPRING, COMPRESSION COIL

16050-MM5-601

$6.59

8

SPRING, COMPRESSION COIL

16053-MM5-601

Unavailable

9

SCREW, PAN (6X12)

16080-ML4-611

$3.24

10

CARBURETOR ASSY. This part replaces 16100-MM5-672.

16100-MM5-675

Unavailable

10

CARBURETOR ASSY. This part replaces 16100-MM5-673.

16100-MM5-675

Unavailable

10

CARBURETOR ASSY.

16100-MM5-675

Unavailable

11

CARBURETOR ASSY. 1 This part replaces 16101-MM5-672.

16101-MM5-675

Unavailable

11

CARBURETOR ASSY. 1 This part replaces 16101-MM5-673.

16101-MM5-675

Unavailable

11

CARBURETOR ASSY. 1

16101-MM5-675

Unavailable

12

CARBURETOR ASSY. 2 | Use up to Engine SN VG90A A

16102-MM5-672

Unavailable

12

CARBURETOR ASSY. 2 | Use from Engine SN VG90A B This part replaces 16102-MM5-673.

16102-MM5-676

Unavailable

12

CARBURETOR ASSY. 2 | Use from Engine SN VG90A B This part replaces 16102-MM5-674.

16102-MM5-676

Unavailable

12

CARBURETOR ASSY. 2 | Use from Engine SN VG90A B

16102-MM5-676

Unavailable

13

CARBURETOR ASSY. 3 | Use up to Engine SN VG90A A

16103-MM5-672

Unavailable

13

CARBURETOR ASSY. 3 | Use from Engine SN VG90A B This part replaces 16103-MM5-673.

16103-MM5-676

Unavailable

13

CARBURETOR ASSY. 3 | Use from Engine SN VG90A B This part replaces 16103-MM5-674.

16103-MM5-676

Unavailable

13

CARBURETOR ASSY. 3 | Use from Engine SN VG90A B

16103-MM5-676

Unavailable

14

CARBURETOR ASSY. 4 This part replaces 16104-MM5-672.

16104-MM5-675

Unavailable

14

CARBURETOR ASSY. 4 This part replaces 16104-MM5-673.

16104-MM5-675

Unavailable

14

CARBURETOR ASSY. 4

16104-MM5-675

Unavailable

15

LEVER, STARTER

16120-MM5-601

Unavailable

16

LEVER, STARTER

16121-MM5-601

Unavailable

17

LEVER, STARTER

16122-MM5-601

Unavailable

20

SHAFT, STARTER LINK

16145-MM5-601

Unavailable

21

LEVER, STARTER

16146-MM5-601

Unavailable

25

T-JOINT

16180-MM5-601

$21.95

29

TUBE (NOT AVAILABLE)

16198-MM5-601

Unavailable

30

TUBE

16199-MM5-601

Unavailable

35

SCREW, PAN (4X8)

93500-04008-0A

$1.49

36

SCREW, PAN (5X10)

93500-05010-0A

$1.49

37

SCREW-WASHER (4X8)

93892-04008-00

$1.49

38

SCREW-WASHER (4X10)

93892-04010-00

$1.49
