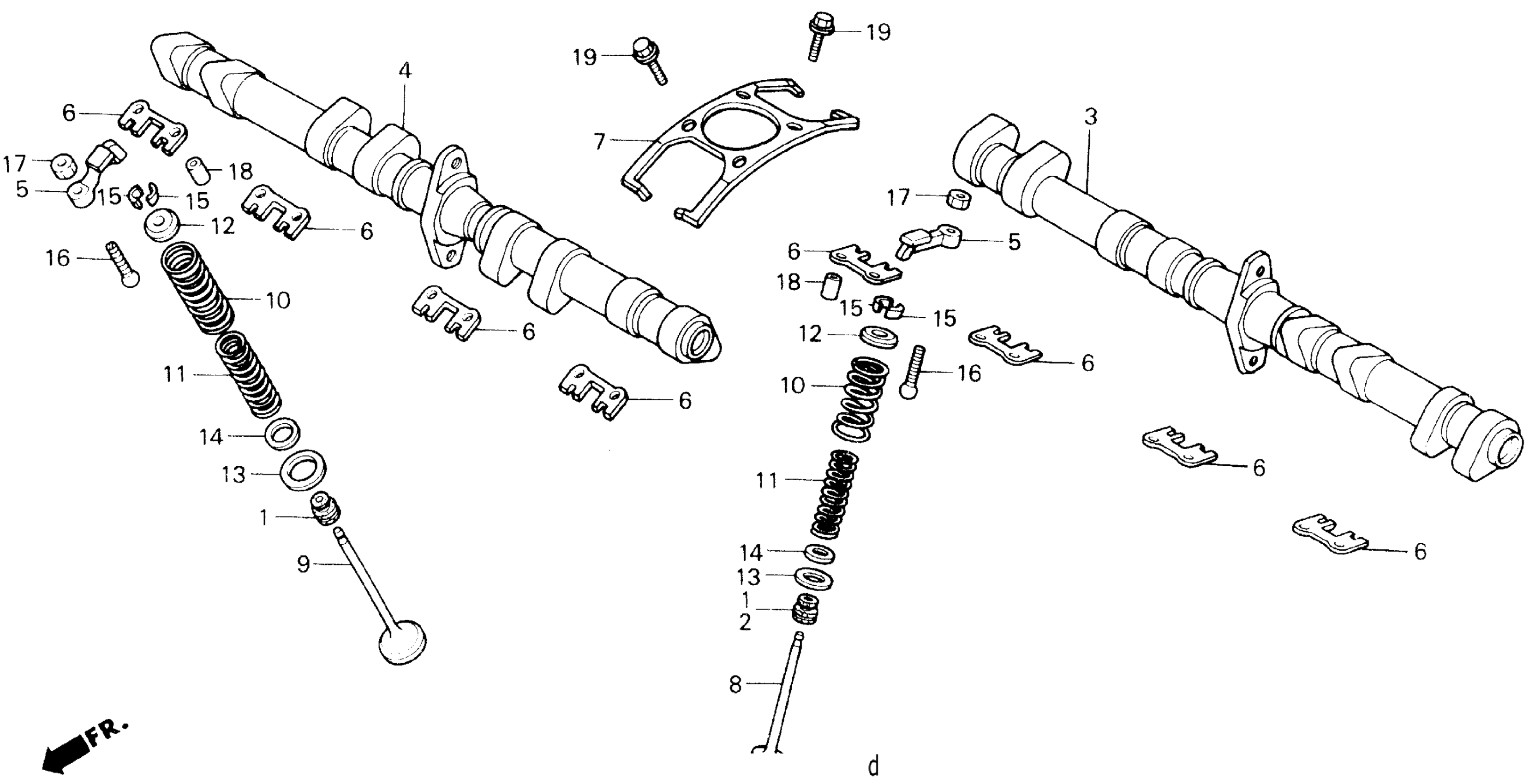

Honda CBR1000FA (87) 1000 HURRICANE, USA, VIN# 1HFSC210-HA001001 TO 1HFSC210-HA004655 CAMSHAFT Diagram

#

Description
Price

1

SEAL, VALVE STEM

12209-KL4-005

$7.81

3

CAMSHAFT, IN. This part replaces 14101-MM5-000.

14101-MZ2-600

Unavailable

4

CAMSHAFT, EX. This part replaces 14201-MM5-000.

14201-MZ2-600

Unavailable

5

ARM, VALVE ROCKER

14431-MM5-000

Unavailable

6

PLATE, ROCKER ARM GUIDE This part replaces 14615-MM5-000.

14615-MM5-640

$17.08

6

PLATE, ROCKER ARM GUIDE

14615-MM5-640

$17.08

7

SPRING, ROCKER ARM This part replaces 14617-MM5-000.

14617-MM5-010

Unavailable

7

SPRING, ROCKER ARM

14617-MM5-010

Unavailable

8

VALVE, IN. This part replaces 14711-MM5-000.

14711-MM5-010

Unavailable

8

VALVE, IN.

14711-MM5-010

Unavailable

9

VALVE, EX. This part replaces 14721-MM5-000.

14721-MM5-010

Unavailable

9

VALVE, EX.

14721-MM5-010

Unavailable

10

SPRING, VALVE (OUTER)

14751-MM5-004

Unavailable

11

SPRING, VALVE (INNER)

14761-MM5-004

Unavailable

12

RETAINER, SPRING

14771-MB6-000

Unavailable

13

SEAT, VALVE SPRING (OUTER)

14775-ML7-000

Unavailable

14

SEAT, VALVE SPRING (INNER)

14777-ML7-000

Unavailable

15

COTTER, VALVE

14781-MB4-000

$3.19

16

SCREW, TAPPET ADJ.

90012-ML7-013

Unavailable

17

NUT, TAPPET ADJ.

90206-ML7-000

$2.30

18

PIN, DOWEL (8X8)

90702-MB0-000

$3.80

19

BOLT, UBS (6X19) | Use from Engine SN 2016658

90010-KT8-000

Unavailable

19

BOLT, FLANGE (6X22) | Use up to Engine SN 2016657

95701-06022-00

$1.80

19

BOLT, FLANGE (6X22) | Use up to Engine SN 2016657 This part replaces 95801-06022-09.

95701-06022-00

$1.80
