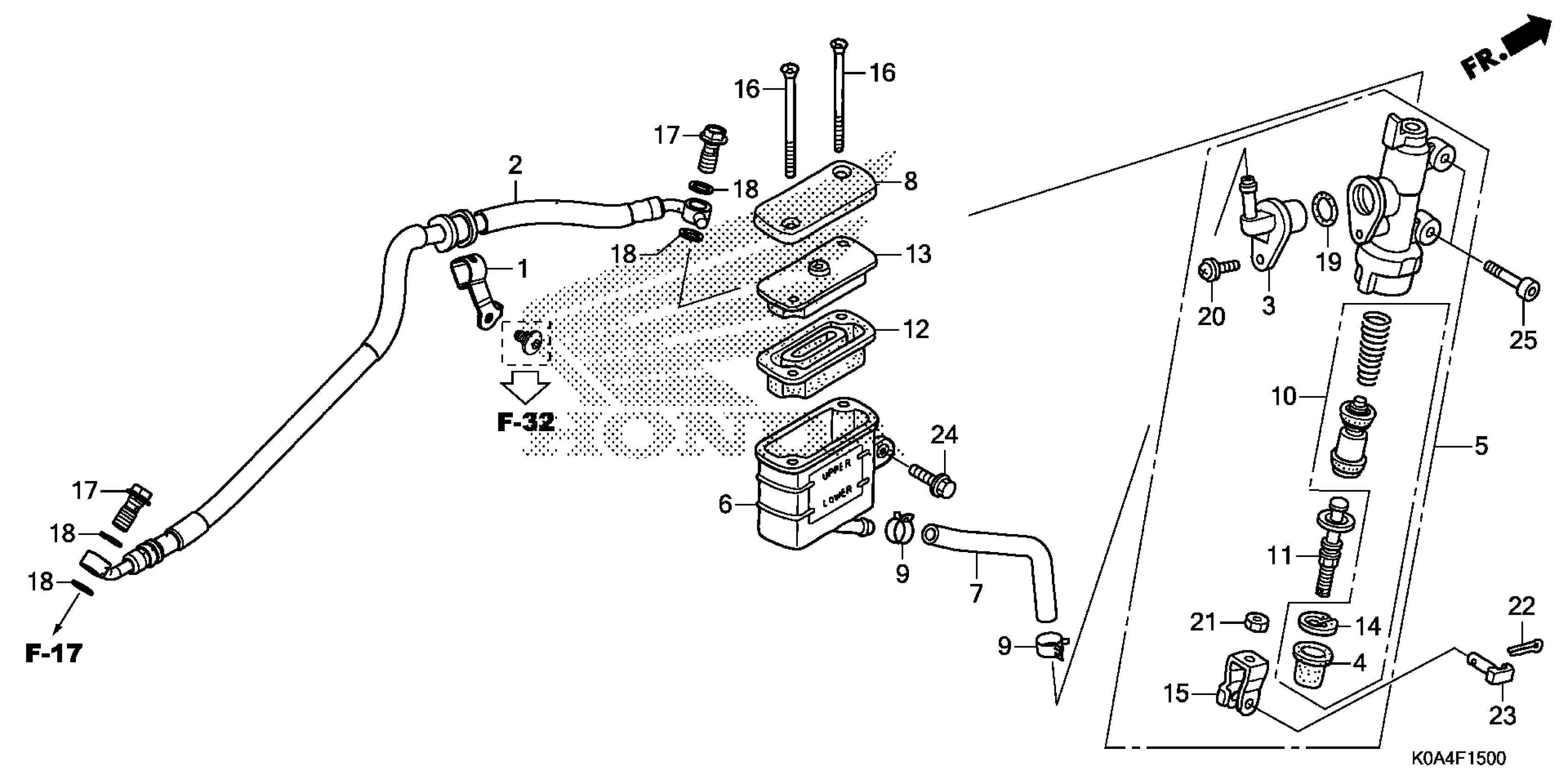

Honda CBF300NAC (19) MOTORCYCLE, THA, VIN# MLHNC550-K5000001 TO MLHNC550-K5099999 REAR BRAKE MASTER CYLINDER (1) Diagram

CLAMP A, RR. BRAKE HOSE

43156-K94-T00

$2.64

HOSE, RR. BRAKE

43310-K0A-A01

$23.46

CONNECTOR

43503-MR7-006

$12.51

BOOT

43504-MB2-006

$9.01

MASTER CYLINDER SUB-ASSY., RR. BRAKE (NISSIN)

43510-K45-N01

$92.58

CUP, OIL

43511-KVS-F31

$6.64

HOSE, RR. MASTER CYLINDER

43512-K94-T01

$11.43

CAP, MASTER CYLINDER

43513-KTY-C01

$5.46

CLAMP, MASTER CYLINDER OIL HOSE

43514-KS6-701

$11.77

PISTON SET, MASTER CYLINDER (NISSIN)

43520-MJ6-315

$40.74

ROD, PUSH

43530-KV3-701

$18.06

DIAPHRAGM

45520-GW0-911

$6.78

PLATE, DIAPHRAGM

45521-GW0-911

$5.34

CIRCLIP

46182-MEL-D21

$1.77

JOINT, BRAKE ROD

46504-KV6-702

$7.30

SCREW, FLAT (4X45)

90140-KZZ-901

$5.67

BOLT, OIL (10X22) (NISSIN)

90145-KPH-B30

$1.64

WASHER, OIL BOLT

90545-300-000

$3.72

O-RING (14.8X2.4)

91212-422-006

Unavailable

SCREW-WASHER (4X12)

93893-04012-07

$1.22

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.22

NUT, HEX. (8MM)

94002-08000-0S

$1.19

PIN, SPLIT (2.0)

94201-20151

$0.48

PIN D, JOINT

95015-54000

$3.95

BOLT, FLANGE (6X14)

96001-06014-00

$1.64

BOLT, SOCKET (6X20)

96600-06020-08

$11.06
