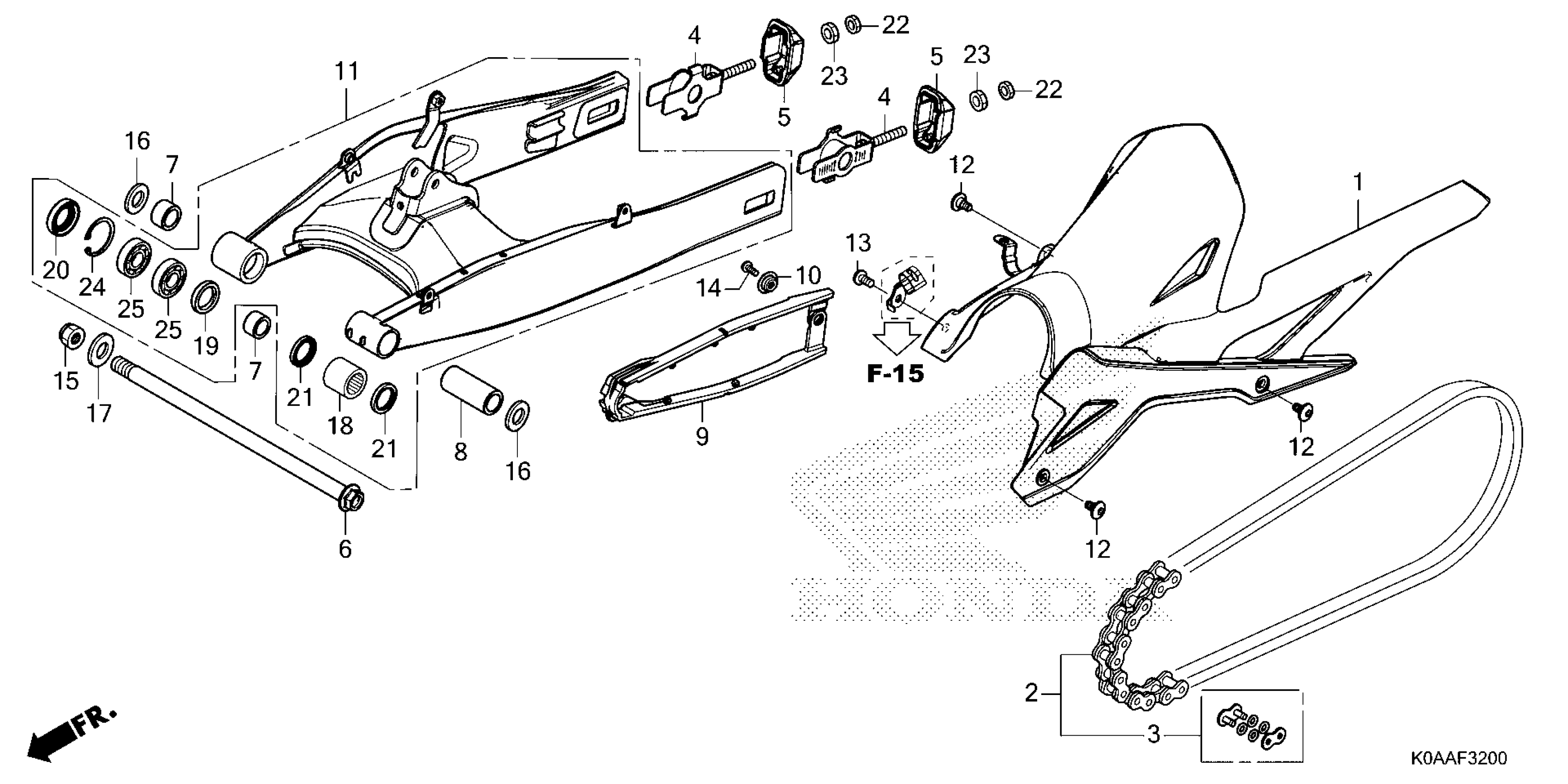

Honda CBF300NAAC (25) MOTORCYCLE, THA, VIN# MLHNC555-S5500001 SWINGARM Diagram

#

Description
Price

1

CASE, DRIVE CHAIN

40510-K0A-DB0

$3.91

2

CHAIN, DRIVE

40540-K0A-EB1

Unavailable

3

MASTER LINK (DAIDO)

40545-KYJ-902

$13.26

4

ADJUSTER, CHAIN

40543-K94-T00

$9.69

5

CAP, SWINGARM END

40546-K94-T00

$7.93

6

BOLT, SWINGARM PIVOT

52101-K94-T00

$15.90

7

COLLAR, R. SWINGARM PIVOT

52105-K94-T00

$6.01

8

COLLAR, L. SWINGARM PIVOT

52106-K94-T00

$14.62

9

SLIDER, CHAIN

52170-K0A-D10

$20.41

10

WASHER, CHAIN SLIDER

52171-MAN-620

$2.97

11

SWINGARM SUB, RR.

52200-K0A-DB0

$370.65

12

SCREW, PAN (6X12)

90106-K26-900

$0.49

13

SCREW, PAN (6X12)

90106-MAV-000

$2.01

14

SCREW, PAN (5X12)

90104-KPP-900

$0.76

15

NUT, U (14MM)

90305-GGZ-J01

$2.60

16

WASHER (15X25X2.3)

90501-K94-T00

$1.21

17

WASHER (14X28X2.6)

90502-K64-N00

$1.06

18

BEARING, NEEDLE (THOMPSON) This part replaces 91071-MJ0-003.

91071-MJ0-004

$33.83

18

BEARING, NEEDLE (THOMPSON)

91071-MJ0-004

$33.83

19

OIL SEAL (22X31X5) (ARAI)

91205-965-003

$5.54

20

DUST SEAL (22X35X7) (ARAI)

91213-MB2-003

$7.12

20

DUST SEAL (22X35X7) (ARAI) This part replaces 91213-MB2-006.

91213-MB2-003

$7.12

21

DUST SEAL (22X29X4) (ARAI)

91283-ML7-003

$5.65

22

NUT, HEX. (8MM)

94002-08000-0S

$1.31

23

NUT, HEX. (8MM) NUT, FLANGE (10MM)

94031-08000

$1.04

24

CIRCLIP (INNER) (35MM)

94520-35000

$2.32

25

BEARING, RADIAL BALL (6202)

96100-62020-10

$13.36
