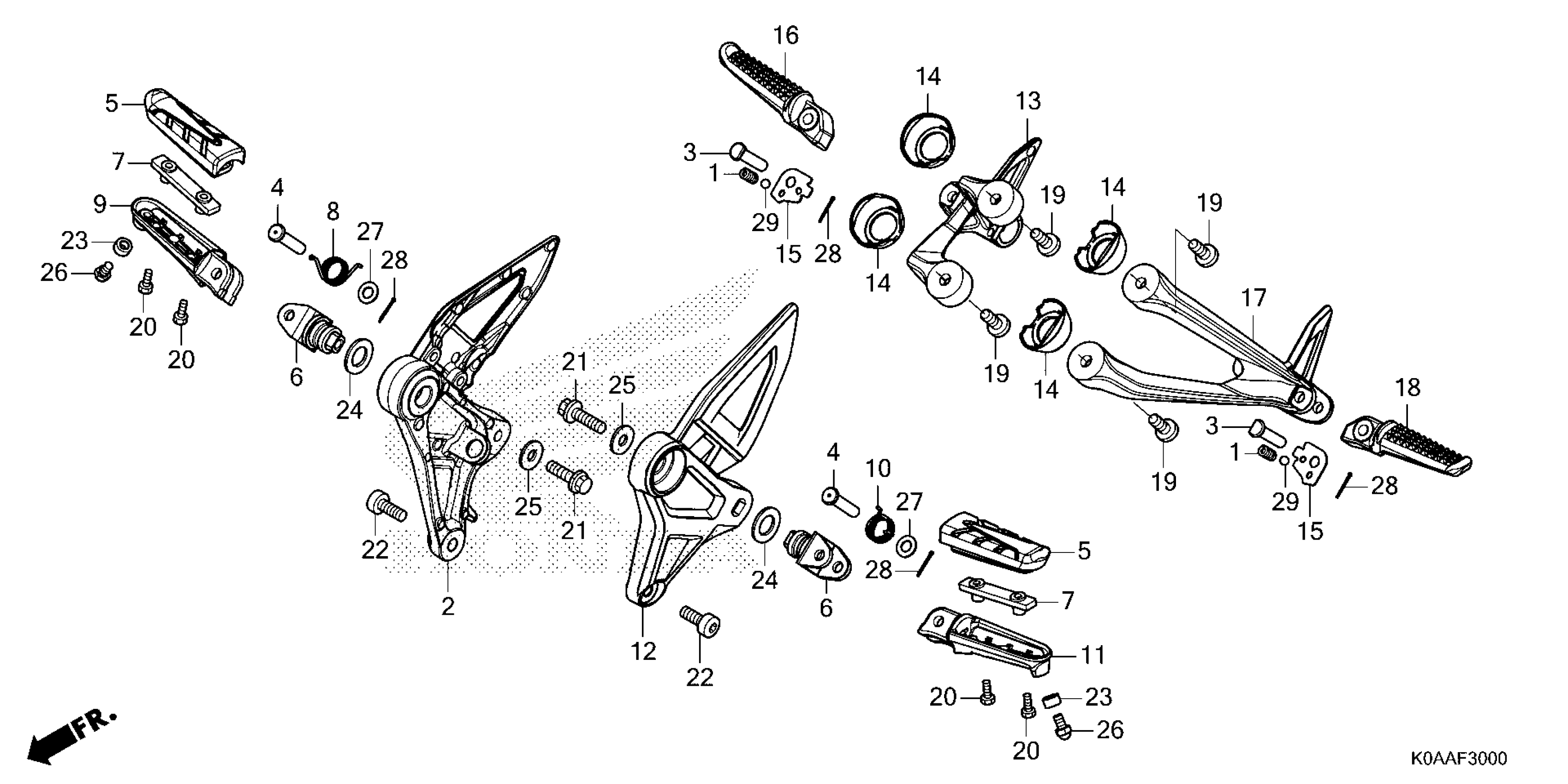

Honda CBF300NAAC (25) MOTORCYCLE, THA, VIN# MLHNC555-S5500001 STEP Diagram

#

Description
Price

1

SPRING, KICK STARTER STOPPER

28333-300-000

$2.80

2

HOLDER, R. STEP

50600-K0A-DB0

$10.75

3

PIN, STEP BAR JOINT

50603-K94-T00

$4.02

4

PIN, STEP BAR JOINT

50603-KB4-000

$4.47

5

RUBBER, MAIN STEP

50610-K15-900

$0.87

6

BRACKET, MAIN STEP

50612-K0A-DB0

$2.16

7

PLATE, STEP SETTING

50613-K0A-DB0

$1.43

8

SPRING, R. STEP RETURN (L. SIDE)

50617-445-840

$5.20

9

ARM, R. MAIN STEP

50635-K1L-D00

$2.31

10

SPRING, L. STEP RETURN (R. SIDE)

50644-445-840

$5.20

11

ARM, L. MAIN STEP

50645-K1L-D00

$2.09

12

HOLDER, L. STEP

50700-K0A-DB0

$10.09

13

HOLDER, R.

50715-K0A-DB0

$11.06

14

COVER, PILLION STEP

50716-K0A-DB0

$0.09

15

PLATE, PILLION STEP CLICK

50718-MN8-000

$2.29

16

ARM, R. PILLION STEP

50720-K0A-DB0

$3.75

17

HOLDER, L.

50725-K0A-DB0

$10.68

18

ARM, L. PILLION STEP

50730-K0A-DB0

$3.75

19

BOLT, SOCKET (8X20)

90106-K94-T00

$1.13

20

BOLT, SPECIAL (5X14)

90108-K15-900

$0.43

21

BOLT, FLANGE (8X28)

90131-KWN-900

$0.85

22

BOLT, SOCKET (8X22)

90161-K94-T00

$1.13

23

COLLAR (6MM)

90311-K15-900

$0.09

24

WASHER (15.5X27X2.0)

90502-K94-T00

$1.10

25

WASHER (8.5X22X2.0)

90503-K94-T00

$1.12

26

BOLT, CAP (6X16)

92501-06016-0A

$3.62

27

WASHER, PLAIN (8MM)

94102-08000

$0.87

28

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.01

28

PIN, COTTER (1.6X25)

94201-16250

$1.01

29

BALL, STEEL (#8) (1/4)

96211-08000

Unavailable
