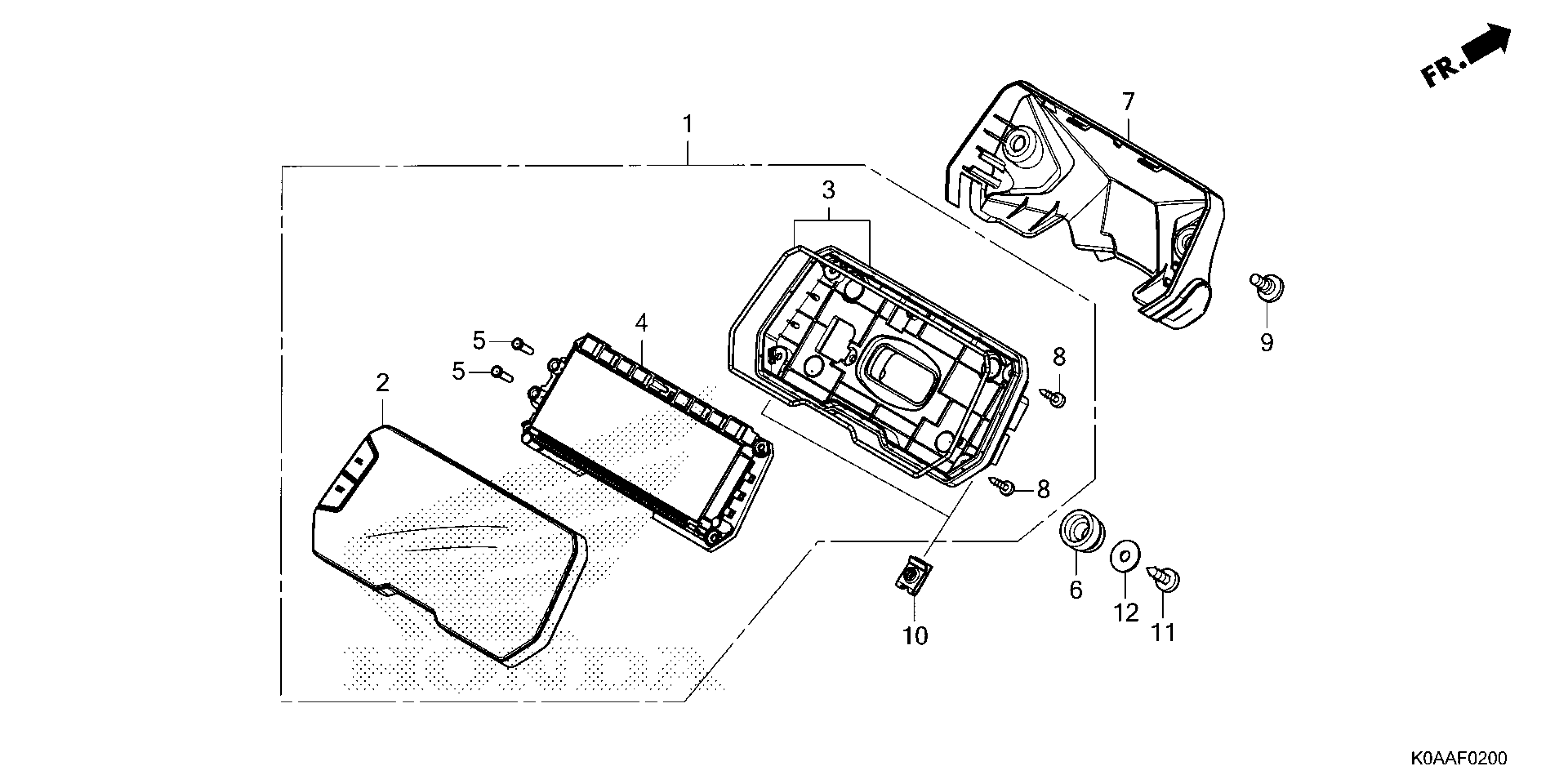

Honda CBF300NAAC (25) MOTORCYCLE, THA, VIN# MLHNC555-S5500001 SPEEDOMETER Diagram

#

Description
Price

1

METER, COMBINATION

37100-K0A-AB1

$212.97

2

CASE ASSY. (UPPER)

37110-K0A-DB1

$44.42

3

CASE ASSY. (LOWER)

37120-K0A-DB1

$16.49

4

METER, LCD

37130-K0A-AB1

$95.06

5

KEY, TOP

37205-K0A-DB1

$0.58

6

RUBBER, METER SETTING

37215-KZZ-900

$1.29

7

COVER, METER

64110-K0A-DB0

$5.17

8

SCREW, TAPPING (3X14)

90101-KY6-008

$2.38

9

SCREW, PAN (5X14)

90134-KPP-T00

Unavailable

10

NUT, CLIP (5MM)

90677-KAN-T00

Unavailable

11

SCREW, TAPPING (5X14) (PO)

93913-25380

$0.83

12

WASHER, PLAIN (5MM)

94103-05700

$0.86
