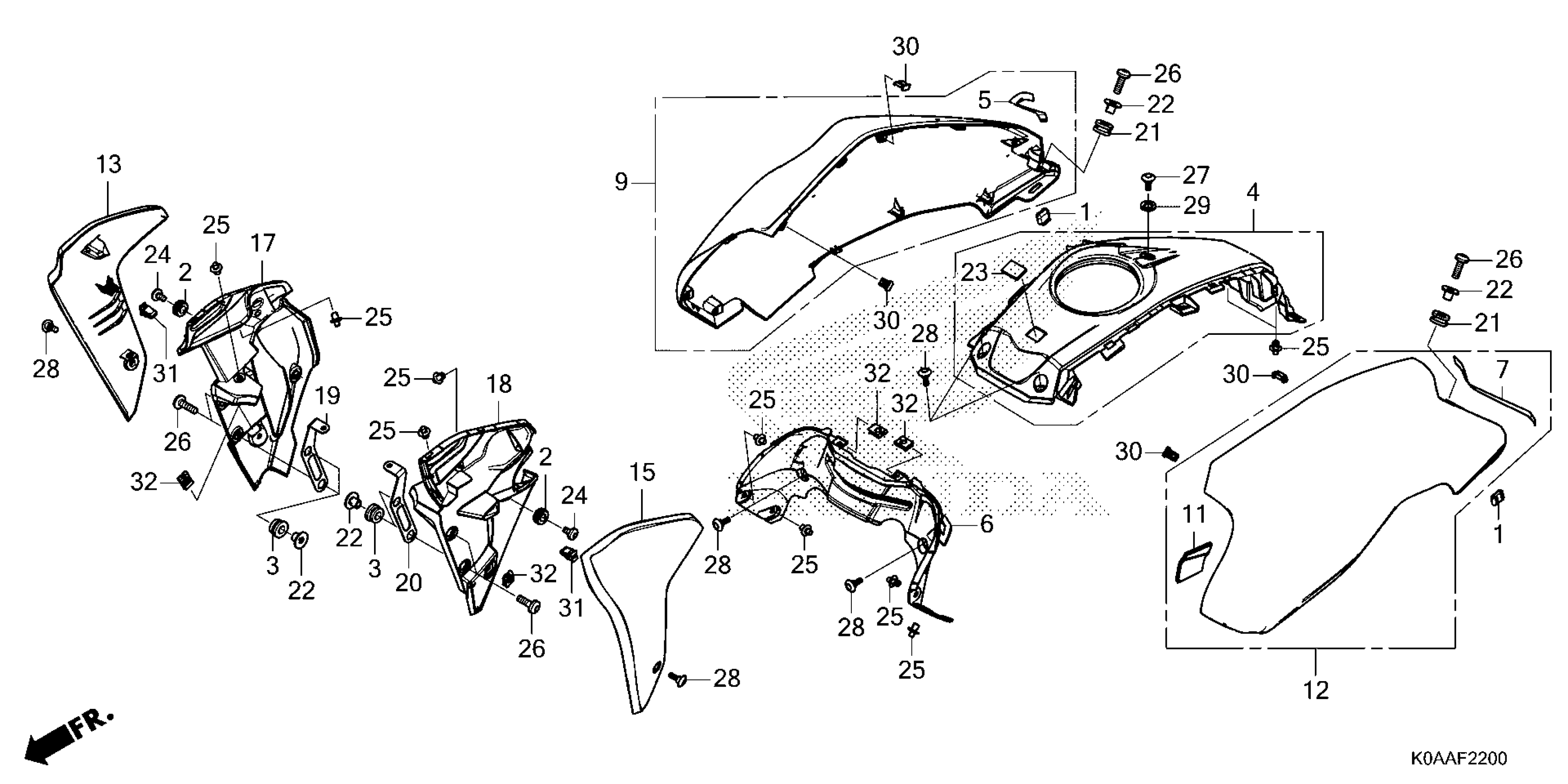

Honda CBF300NAAC (25) MOTORCYCLE, THA, VIN# MLHNC555-S5500001 SHROUD@TANK COVER Diagram

#

Description
Price

1

RUBBER, PROTECTOR GASKET

18293-KYY-900

$2.40

2

RUBBER, POSITION LIGHT

33181-MBB-000

$4.53

3

RUBBER, FR. FENDER MOUNTING

61105-KRY-900

Unavailable

4

COVER ASSY., FUEL TANK CENTER

64410-K0A-E10

$26.07

5

FILM, R. TANK COVER PROTECTOR

64413-K0A-E10

$4.76

6

COVER, FUEL TANK (INNER)

64421-K0A-E10

$17.82

7

FILM, L. TANK COVER PROTECTOR

64423-K0A-E10

$4.76

9

CVR, R. (TYPE4)

64435-K0A-EB0ZA

$100.96

9

CVR, R. (TYPE2)

64435-K0A-EB0ZC

$76.29

11

RUBBER SPONGE, TANK COVER

64442-K0A-E10

$2.65

12

CVR, L. (TYPE4)

64445-K0A-EB0ZA

$102.75

12

CVR, L. (TYPE2)

64445-K0A-EB0ZC

$78.12

13

SHROUD SET (TYPE1)

64450-K0A-TB0ZA

$24.96

13

SHROUD SET, R. (TYPE1) (WL)

64450-K0A-T30ZA

$34.21

15

SHROUD SET (TYPE1)

64460-K0A-TB0ZA

$23.38

15

SHROUD SET, L. (TYPE1) (WL)

64460-K0A-T30ZA

$32.04

17

SHROUD, R. (INNER)

64471-K0A-E10

$19.43

18

SHROUD, L. (INNER)

64481-K0A-E10

$19.43

19

STAY, R. SHROUD

64551-K0A-E10

$4.78

20

STAY, L. SHROUD

64561-K0A-E10

$4.78

21

RUBBER, RR. FENDER CUSHION (FR.)

80101-165-000

$3.56

22

COLLAR, TAILLIGHT MOUNTING

84706-163-670

$3.90

23

EMBLEM, PRODUCT (MARUI)

86150-GFC-901

$2.80

23

EMBLEM, PRODUCT (UEHARA)

86150-GFC-902

$2.75

24

SCREW, PAN (5X10)

90104-K94-T00

$1.24

25

RIVET, PUSH (6MM)

90116-K0A-E11

$1.19

26

SCREW, PAN (6X22)

90130-KYJ-900

$0.76

27

SCREW, PAN (6X12)

90134-K33-D00

$1.50

28

SCREW, PAN (5X14)

90134-KPP-T00

Unavailable

29

WASHER, RUBBER (6MM)

90514-K33-D00

$0.75

30

CLIP, SLIDE

90651-K14-A31

Unavailable

31

CLIP, SNAP FITTING (PO)

90666-K59-A11

Unavailable

32

NUT, CLIP (5MM)

90677-KAN-T00

$0.59
