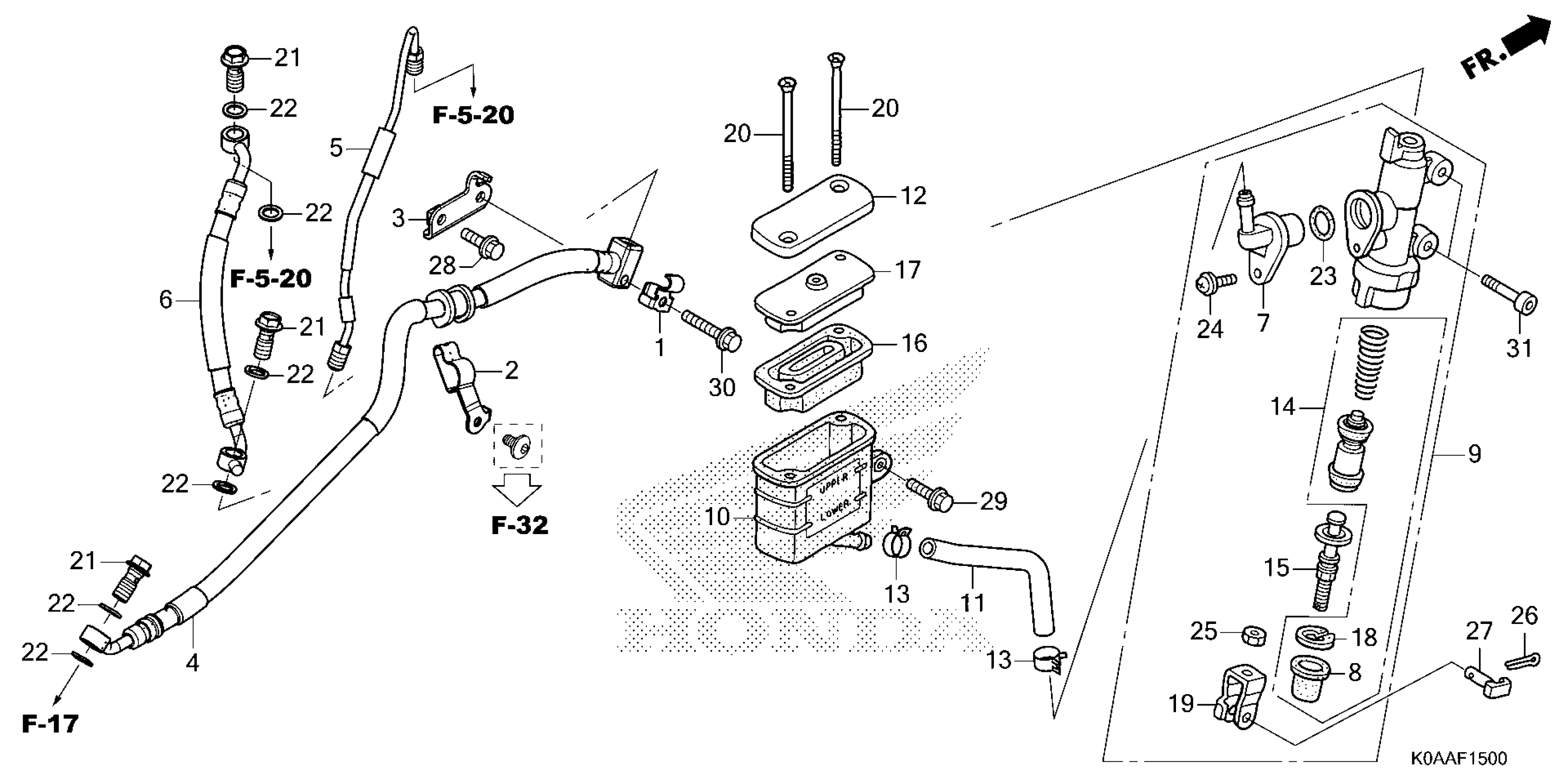

Honda CBF300NAAC (25) MOTORCYCLE, THA, VIN# MLHNC555-S5500001 REAR BRAKE MASTER CYLINDER Diagram

#

Description
Price

1

CLAMP B, SENSOR WIRE

38516-K94-T10

$2.11

2

CLAMP A, RR. BRAKE HOSE

43156-K94-T10

$3.69

3

STAY, RR. BRAKE HOSE

43159-K94-T10

$5.33

4

HOSE A, RR. BRAKE

43310-K0A-E11

$36.11

5

PIPE, RR. BRAKE

43312-K0A-E10

$14.46

6

HOSE B, RR. BRAKE

43314-K0A-EB1

$17.21

7

CONNECTOR

43503-MR7-006

$14.04

8

BOOT

43504-MB2-006

$10.04

9

MASTER CYLINDER SUB-ASSY., RR. BRAKE (NISSIN)

43510-K45-N01

$104.72

10

CUP, OIL

43511-K43-D31

$22.41

11

HOSE, RR. MASTER CYLINDER

43512-K94-T01

$12.93

12

CAP, MASTER CYLINDER

43513-KTY-C01

$6.18

13

CLAMP, MASTER CYLINDER OIL HOSE

43514-KS6-701

$13.12

14

PISTON SET, MASTER CYLINDER (NISSIN)

43520-MJ6-315

$46.73

15

ROD, PUSH

43530-KV3-701

$19.84

16

DIAPHRAGM

45520-GW0-911

$7.28

17

PLATE, DIAPHRAGM

45521-GW0-911

$5.72

18

CIRCLIP

46182-MEL-D21

$1.93

19

JOINT, BRAKE ROD

46504-KV6-702

$7.84

20

SCREW, FLAT (4X50)

90140-K43-D31

$2.20

21

BOLT, OIL (10X22) (SAGA)

90145-MS9-612

$7.54

22

WASHER, OIL BOLT

90545-300-000

$3.99

23

O-RING (14.8X2.4)

91212-422-006

$2.56

24

SCREW-WASHER (4X12)

93893-04012-07

$1.49

24

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.49

25

NUT, HEX. (8MM)

94002-08000-0S

$1.49

26

PIN, SPLIT (2.0)

94201-20151

$1.49

27

PIN D, JOINT

95015-54000

$4.24

28

BOLT, FLANGE (6X12) (L. SIDE ONLY)

90013-GHB-610

$2.33

29

BOLT, FLANGE (6X14)

90005-MGZ-J00

$1.49

30

BOLT, FLANGE (6X25) BOLT, FLANGE (6X22)

96001-06025-07

$1.49

31

BOLT, SOCKET (6X20)

96600-06020-08

$12.51
