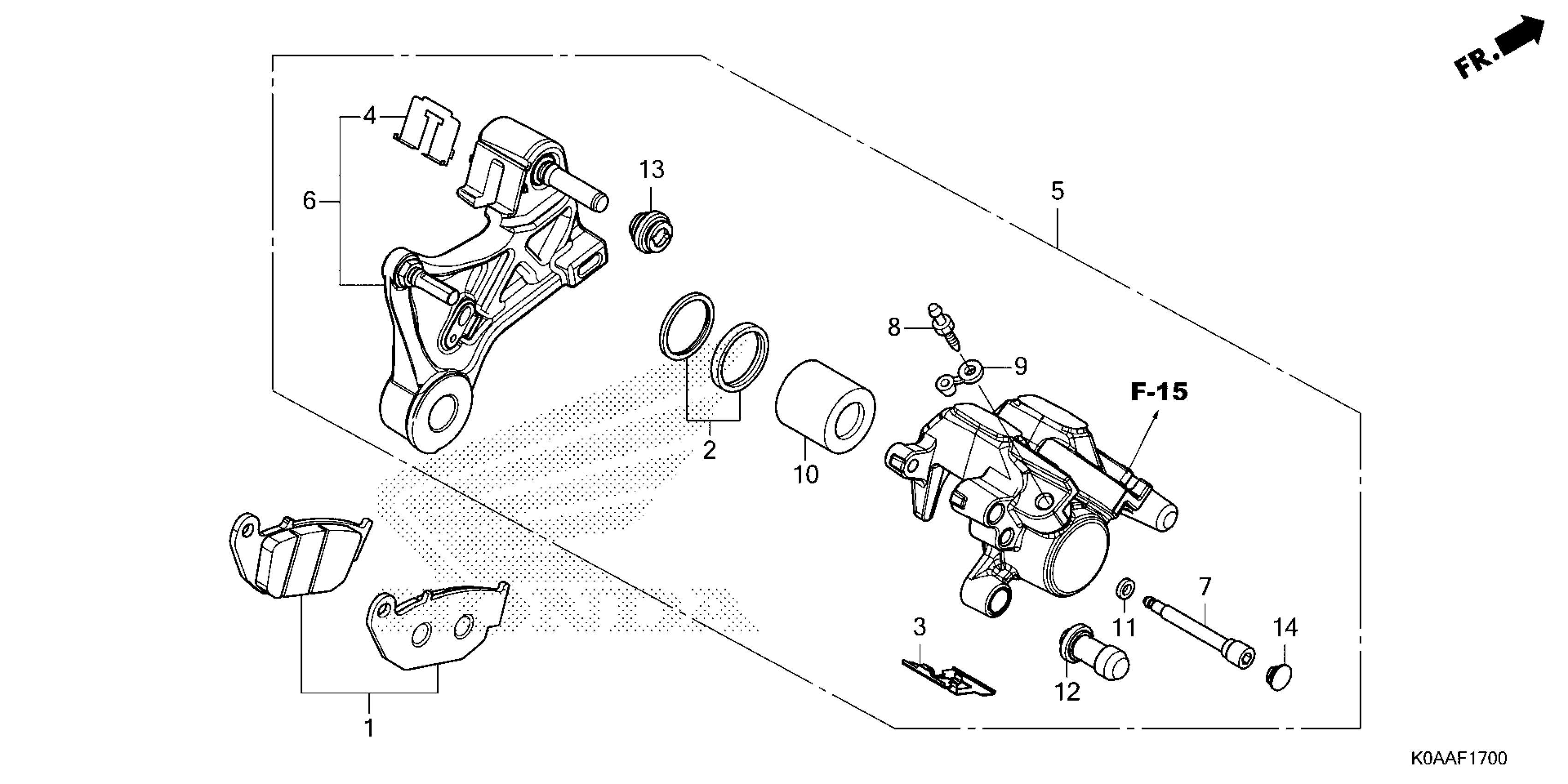

Honda CBF300NAAC (25) MOTORCYCLE, THA, VIN# MLHNC555-S5500001 REAR BRAKE CALIPER Diagram

#

Description
Price

1

PAD SET, RR.

06435-KSP-B02

$14.42

2

SEAL SET, PISTON

06451-961-405

$6.26

3

SPRING, PAD (NISSIN)

43108-KSP-B51

$4.34

4

RETAINER

43112-KZZ-901

$6.99

5

CALIPER SUB-ASSY., RR. (NISSIN)

43150-K94-T11

$125.72

6

BRACKET SUB-ASSY., RR.

43190-K94-T11

$63.93

7

PIN, HANGER

43215-KGH-901

$2.65

8

SCREW, BLEEDER (NISSIN)

43352-568-003

Unavailable

9

CAP, BLEEDER

43353-461-771

Unavailable

10

PISTON

45107-MA6-006

$36.09

11

RING, STOPPER

45111-MAJ-G41

$3.63

12

BOOT, PIN BUSH (NISSIN)

45132-166-016

$5.21

13

BOOT B

45133-MA3-006

$5.21

14

PLUG, PIN

45203-MCC-006

$2.66
