Description

Price

1

RADIATOR

19010-K0A-DB1

$111.15

2

SHROUD

19015-K0A-DB1

$4.53

3

SCREW, PAN (4X8.5)

19016-K0A-DB1

$0.35

4

FAN, COOLING

19020-K0A-DB1

$2.69

5

MOTOR COMP, FAN

19030-K0A-DB1

$57.59

6

NECK, FILLER

19035-K0A-DB1

$2.16

7

CAP, FILLER

19037-K0A-JB1

$4.88

9

HOSE, RADIATOR (UPPER)

19062-K0A-E10

$24.40

10

HOSE, RADIATOR (LOWER)

19067-K0A-E10

$14.15

11

TUBE, RESERVE TANK BREATHER

19104-K0A-E10

$12.24

12

CAP ASSY., RESERVE TANK

19105-K94-T00

$7.32

13

GASKET ASSY., RESERVE TANK

19106-K94-T00

$3.90

14

TUBE, RADIATOR BREATHER

19107-K94-T00

$5.26

15

TANK, RADIATOR RESERVE

19110-K94-T00

$7.31

16

RUBBER, HEAT GUARD

19125-K0A-E10

$16.31

17

RUBBER, RADIATOR (LOWER)

19127-K0A-E10

$5.72

18

HOSE, FILLER NECK

19504-K94-T00

$8.75

19

CLAMP, WATER HOSE (A)

19505-KS6-700

Unavailable

20

CLAMP, HOSE (22-29MM)

19517-ML7-691

$10.68

21

COLLAR, RADIATOR MOUNTING

61102-KTY-D30

$3.83

22

RUBBER, HEADLIGHT CASE MOUNTING

61304-415-000

$3.31

23

BOLT, FLANGE (6MM)

90116-KVB-900

$0.91

24

BOLT, FLANGE (6X16)

95701-06016-08

$1.34

25

NUT, CLIP (6MM)

19011-K0A-DB1

$0.63

26

NUT, FLANGE (3MM)

90302-K0A-DB1

$0.32

27

BOLT-WASHER (6X25)

93404-06025-07

$1.87

28

CLIP, TUBE (B10)

95002-02100

$1.75

29

CLIP, TUBE (B12)

95002-02120

$1.79

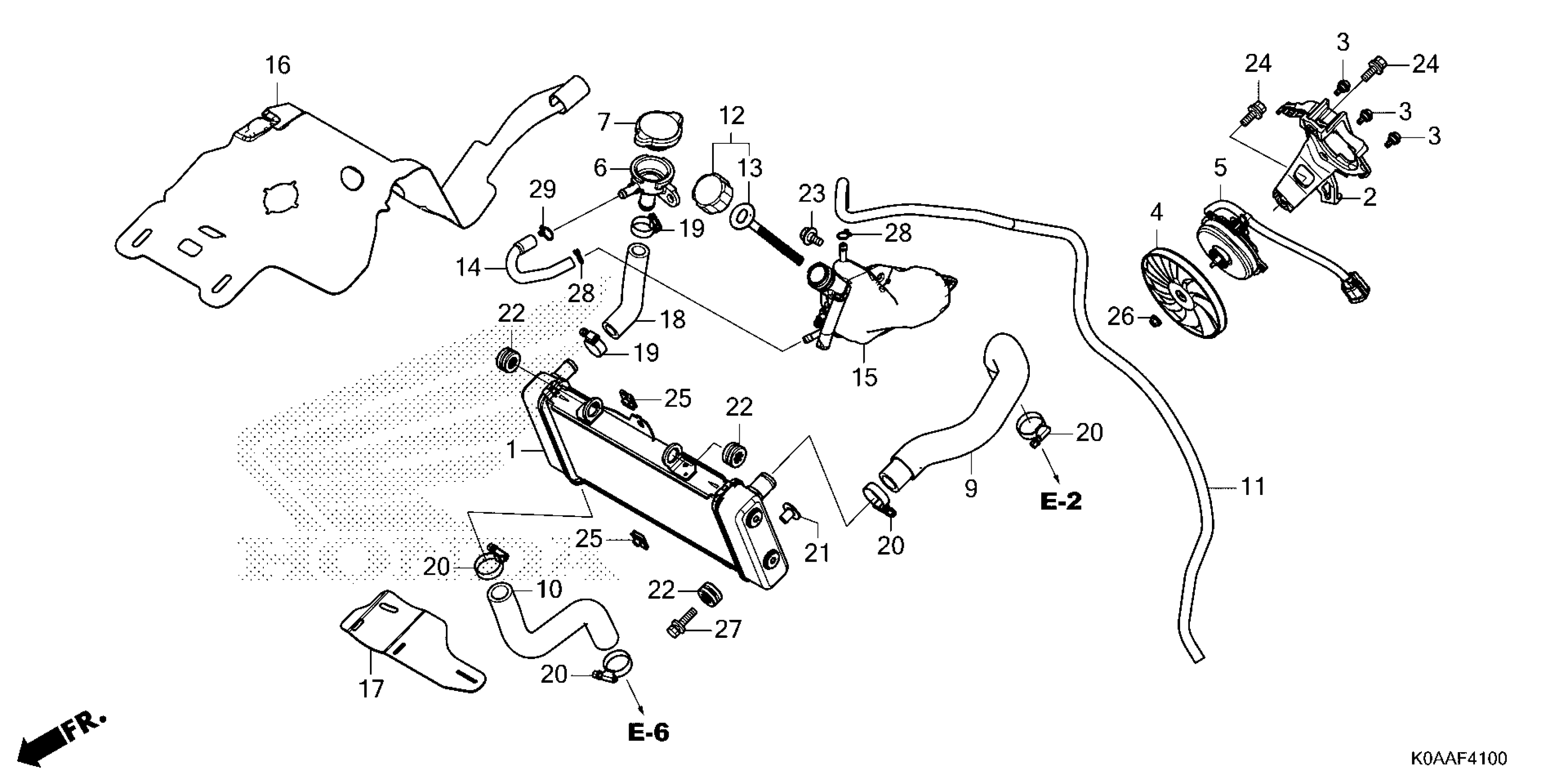

Honda CBF300NAAC (25) MOTORCYCLE, THA, VIN# MLHNC555-S5500001 RADIATOR Diagram
