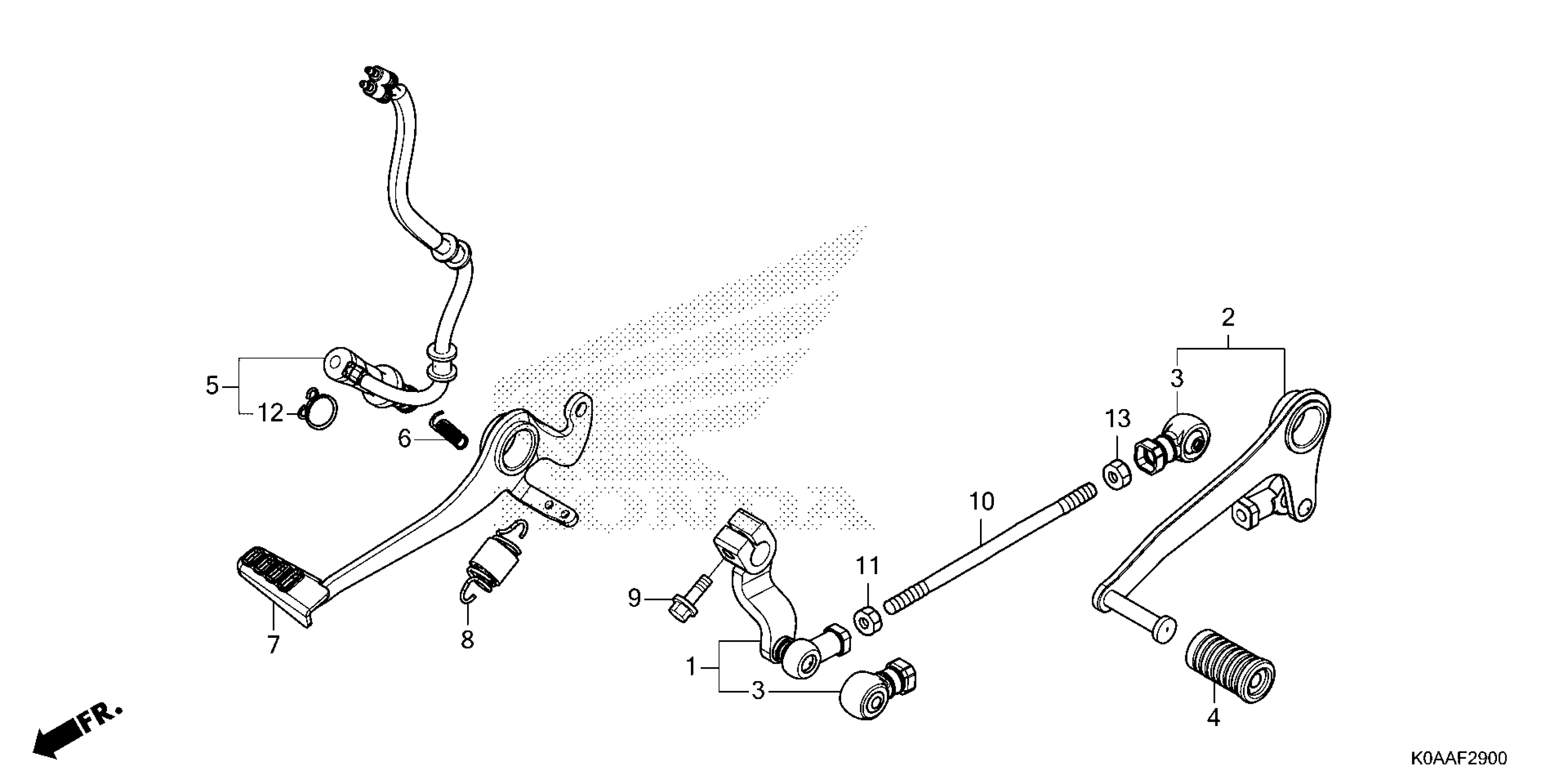

Honda CBF300NAAC (25) MOTORCYCLE, THA, VIN# MLHNC555-S5500001 PEDAL Diagram

ARM, GEARSHIFT

24710-K0A-E10

$29.89

PEDAL, GEARSHIFT

24720-K0A-E10

$20.82

COVER, DUST

24724-MBW-D21

$6.98

RUBBER, GEARSHIFT PEDAL

24781-KR3-770

$3.39

SWITCH ASSY., RR. STOP

35350-K94-T11

$27.00

SPRING, STOP SWITCH

35357-HP0-A00

$2.56

PEDAL, BRAKE

46500-K0A-DB0

$18.74

SPRING ASSY., RR. BRAKE RETURN

46511-KZ4-J00

$7.48

BOLT, FLANGE (6X20)

90010-ML0-720

$2.92

BOLT, TIE ROD

90165-K0A-EB0

$31.46

NUT, SPECIAL (6MM) (LEFT HAND THREAD)

90301-KYJ-900

$2.34

CLIP, SWITCH COVER

90601-KAF-003

$2.67

NUT, HEX. (6MM)

94001-06080-0S

$1.49
