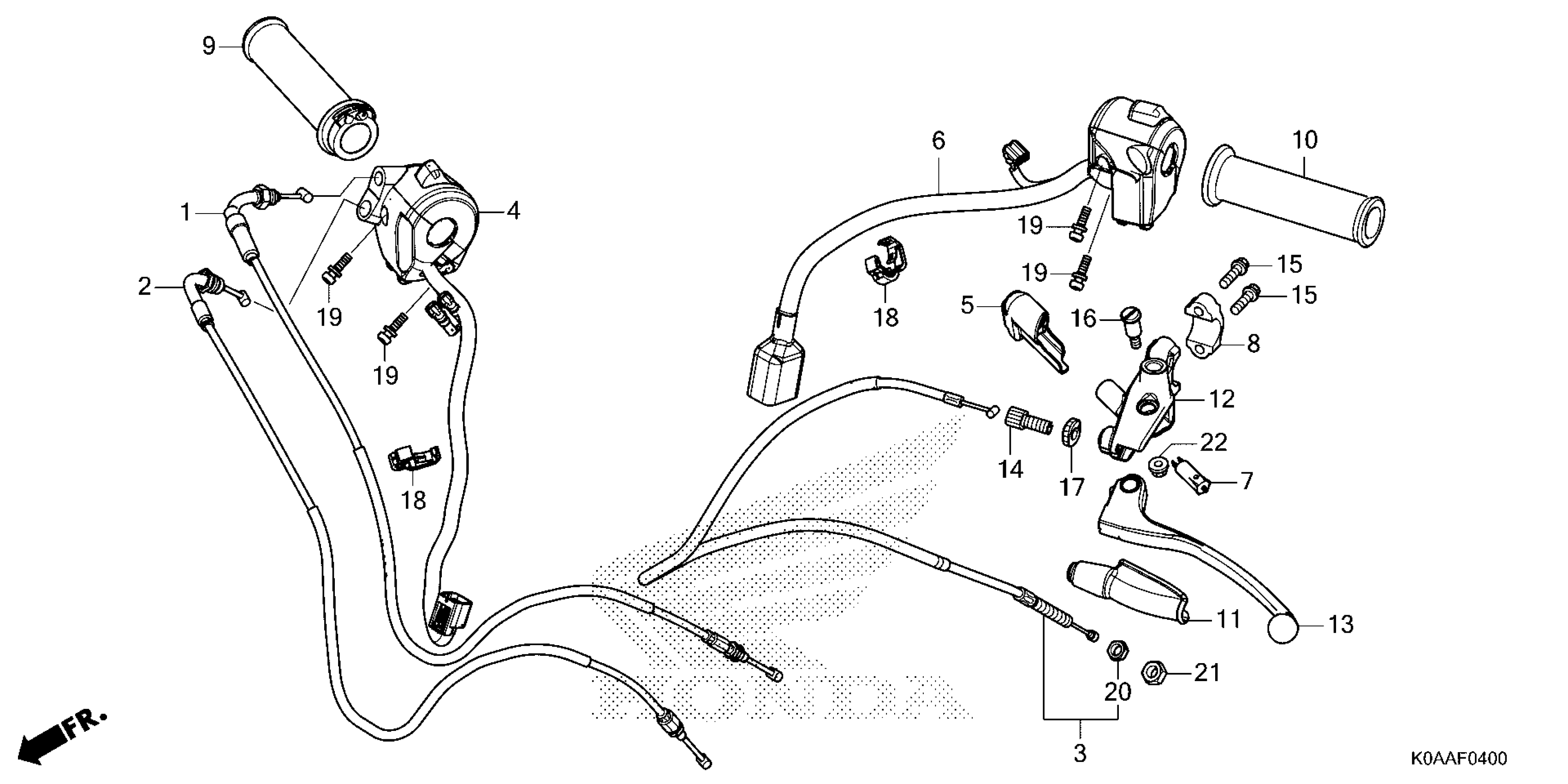

Honda CBF300NAAC (25) MOTORCYCLE, THA, VIN# MLHNC555-S5500001 HANDLE LEVER@SWITCH@CABLE Diagram

CABLE A, THROTTLE

17910-K0A-E11

$14.49

CABLE B, THROTTLE

17920-K0A-E11

$11.52

CABLE, CLUTCH

22870-K0A-E10

$10.71

SWITCH, ENGINE STOP

35130-K0A-EB1

$43.11

COVER, CLUTCH SWITCH

35152-KRY-970

$10.34

SWITCH ASSY., TURN SIGNAL

35200-K98-E02

$84.18

SWITCH, FR. LEVER

35330-KYJ-901

$6.80

HOLDER, MASTER CYLINDER

45517-KCW-870

$11.14

GRIP, THROTTLE (COO)

53140-KYJ-305

$10.41

GRIP, THROTTLE (COO) This part replaces 53140-KYJ-900.

53140-KYJ-305

$10.41

GRIP, L. HANDLE (COO)

53166-KYJ-305

$5.85

GRIP, L. HANDLE (COO) This part replaces 53166-KYJ-900.

53166-KYJ-305

$5.85

COVER, L. HANDLEBAR LEVER

53172-402-700

$7.41

BRACKET, HANDLE LEVER

53172-KYJ-900

$14.31

LEVER, L. HANDLE

53178-MAH-000

$19.50

BOLT, CLUTCH CABLE ADJUSTING

53192-203-000

$9.10

BOLT, FLANGE (6X22)

90013-GHB-660

$2.33

BOLT, L. HANDLEBAR LEVER PIVOT

90113-438-000

$7.58

NUT, FIXING

90321-315-670

$7.31

CLAMP, HARNESS

90690-MEF-800

$1.49

SCREW-WASHER (5X20)

93892-05020-07

$1.49

NUT, HEX. (8MM)

94002-08000-0S

$1.49

NUT, HEX. (8MM) NUT, FLANGE (10MM)

94031-08000

$1.49

NUT, FLANGE (6MM)

94050-06000

$1.49
