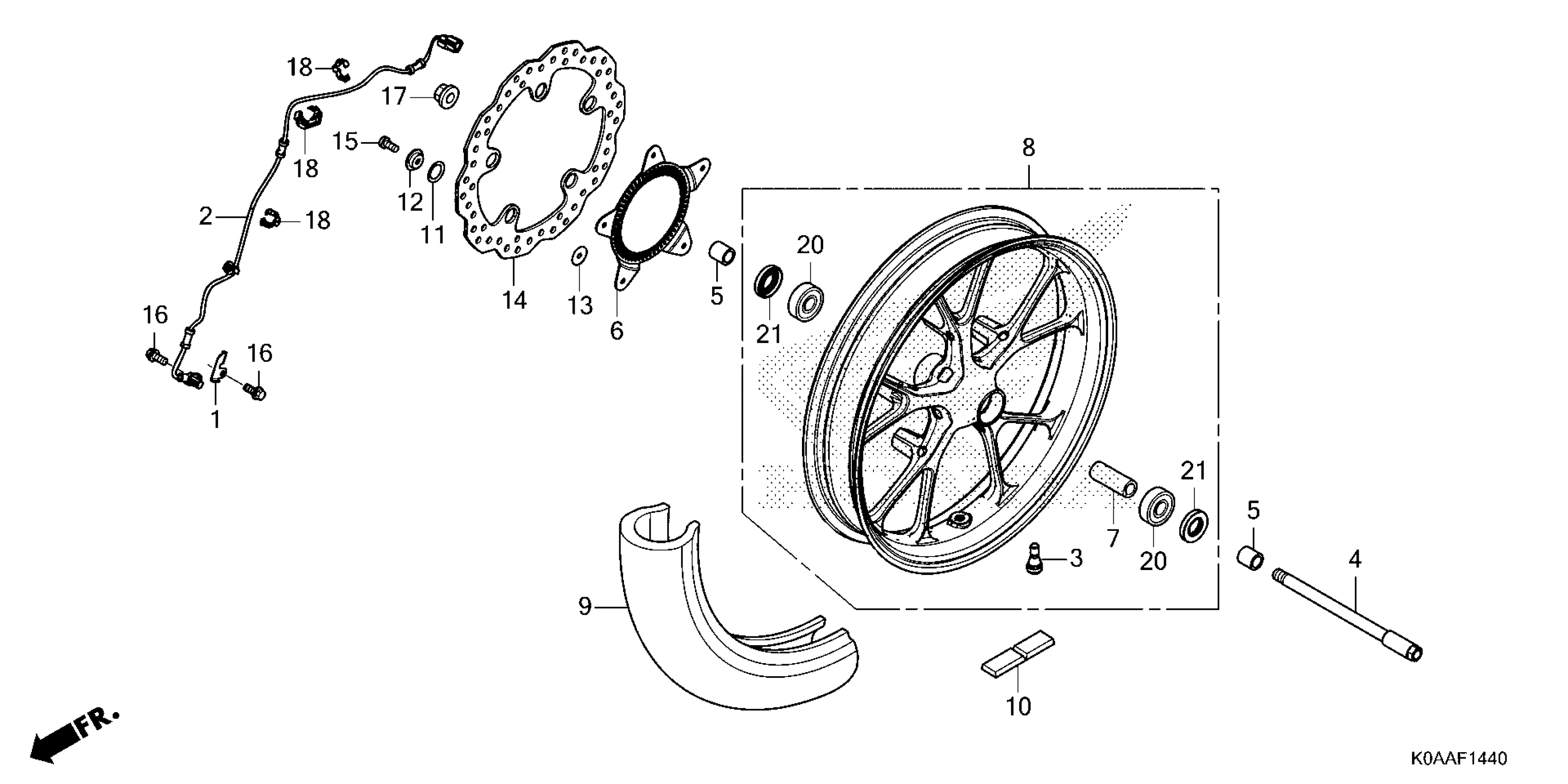

Honda CBF300NAAC (25) MOTORCYCLE, THA, VIN# MLHNC555-S5500001 FRONT WHEEL Diagram

#

Description
Price

1

CLAMP, SENSOR

38514-K94-T10

$1.38

2

SENSOR, FR.

38520-K98-E21

$21.68

3

VALVE, RIM (IRC)

42753-GM9-743

$7.79

4

AXLE, FR. WHEEL

44301-K94-T00

$19.78

5

COLLAR, FR. WHEEL

44311-KYJ-900

$8.16

6

RING, FR. PULSER

44515-K0A-DB0

$38.52

7

COLLAR, FR. AXLE DISTANCE

44620-K94-T00

$6.04

8

WHEEL SUB-ASSY., FR. *NH303M* (MAT AXIS GRAY METALLIC)

44650-K94-T10ZC

$249.93

8

WHEEL SUB-ASSY., FR. *YR325M* (PYRITE BROWN METALLIC)

44650-K94-T10ZD

$252.28

9

TIRE, FR. (110/70R17M/C 54H) (DUNLOP)

44711-K94-T02

$167.23

10

WEIGHT, BALANCE (10G)

44721-MLN-EQ1

Unavailable

10

WEIGHT, BALANCE (15G)

44722-MLN-EQ1

Unavailable

10

WEIGHT, BALANCE (20G)

44723-MLN-EQ1

$3.70

11

SPRING, FR. DISK

45223-MGC-003

$5.71

12

COLLAR, FR. DISK

45225-K0A-DB0

$2.04

13

WASHER, FR. DISK

45226-K94-T00

$1.10

14

DISK, FR. BRAKE

45251-K94-T01

$122.19

15

BOLT, TORX (8X18)

90106-K0A-DB0

$0.91

16

BOLT, FLANGE (6X14) (NOT AVAILABLE)

90117-KZZ-J80

$0.52

17

NUT, AXLE (14MM)

90305-K64-N00

$6.44

18

CLIP, CABLE (12MM)

90690-MGS-D81

Unavailable

20

BEARING, RADIAL BALL (6302UU) (FUJIKOSHI)

91051-KVS-F01

$12.86

21

DUST SEAL (22X42X7) (ARAI)

91252-MC7-003

$6.94
