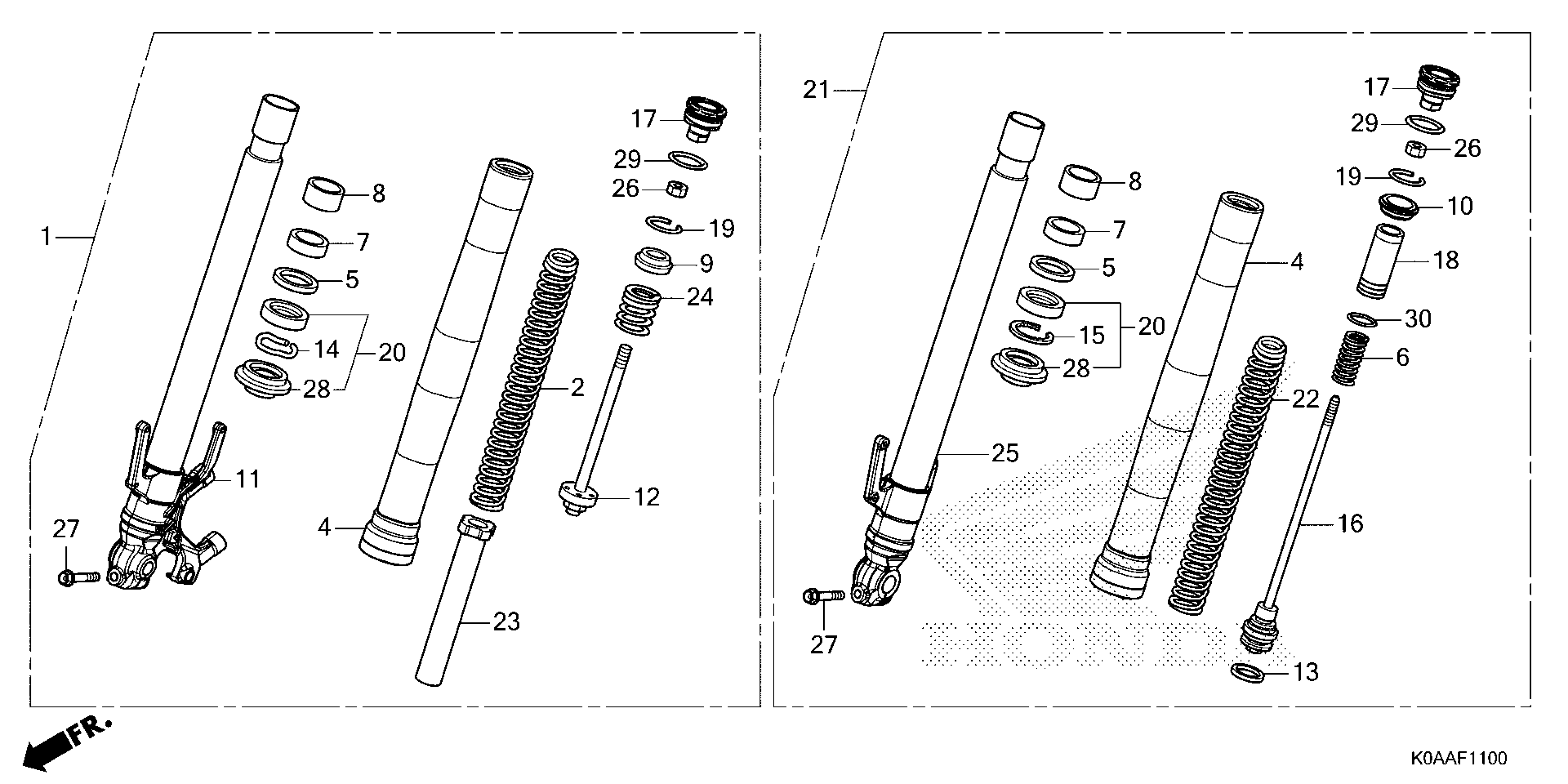

Honda CBF300NAAC (25) MOTORCYCLE, THA, VIN# MLHNC555-S5500001 FRONT FORK Diagram

#

Description
Price

1

FORK, R. FR. (TYPE1)

51400-K0A-EB1ZA

$490.05

1

FORK, R. FR. (TYPE1)

51400-K0A-TB1ZA

$490.05

2

SPRING, R. FR. FORK

51401-K0A-EB1

$54.89

4

TUBE (OUTER)

51410-K94-T31

$275.07

4

TUBE (OUTER)

51410-K94-T41

$303.79

5

RING, BACK-UP (SHOWA)

51412-MB4-003

$9.65

6

SPRING, R. REBOUND

51412-MKY-D51

$2.82

7

BUSH, GUIDE

51414-MFJ-A51

$7.25

8

BUSH, SLIDER

51415-MFJ-A51

$7.25

9

SEAT, STOPPER

51419-K94-T01

$9.52

10

SEAT, R. STOPPER

51419-MKY-D51

$6.61

11

PIPE, R. SLIDE

51425-K98-E21

$250.67

12

ROD

51426-K98-E21

$13.70

13

RING, PISTON

51437-K98-E21

$3.85

14

RING, OIL SEAL STOPPER (SHOWA)

51447-KA4-711

$4.53

15

CIRCLIP (INNER)

51447-MB4-003

$4.66

16

ROD, PISTON

51450-K0A-EB1

$49.79

17

BOLT, FR. FORK

51450-MKY-D51

$82.95

18

CASE, ROD GUIDE

51455-K0A-EB1

$44.72

19

RING, STOPPER

51456-K94-T01

$2.30

20

SEAL SET, FR. FORK

51490-MKL-D81

$25.13

21

FORK, L. FR. (TYPE1)

51500-K0A-EB1ZA

$511.84

21

FORK, L. FR. (TYPE1)

51500-K0A-TB1ZA

$511.84

22

SPRING, L. FR. FORK

51501-K0A-EB1

$42.98

23

COLLAR B, SPRING

51502-K0A-EB1

$12.56

24

SPRING, L. REBOUND

51512-MKY-D51

$4.66

25

PIPE, L. SLIDE

51525-K98-E21

$225.02

26

NUT, HEX.

51451-MKY-D51

$14.10

27

BOLT, FLANGE (8X45)

90109-MR7-000

$4.94

28

DUST SEAL

91251-MKL-D81

$10.67

29

O-RING (39.7X2.4)

91258-MEE-D01

$2.11

30

O-RING (21.7X3.5) (SHOWA)

91356-KF0-003

$3.76
