Description

Price

1

CYLINDER HEAD ASSY.

12010-K0A-EB0

$161.19

2

GUIDE, VALVE (OVER SIZE) (EXHAUST SIDE)

12204-KYJ-305

$17.27

3

GUIDE, EX. VALVE (OVER SIZE) (INLET SIDE)

12205-KYJ-305

$17.27

4

BOLT, SEALING (12MM)

12207-KYJ-900

$1.35

5

GASKET, CYLINDER HEAD

12251-KYJ-901

$20.16

6

INSULATOR

16211-KYJ-710

$0.78

7

BAND, INSULATOR

16217-KYJ-900

$4.94

8

THERMOSTAT

19300-K0A-DB1

$18.54

9

COVER, THERMOSTAT

19321-K0A-EB0

$2.57

10

SPARK PLUG (SIMR8A9) (NGK)

31916-MEH-003

$16.40

12

BOLT, FLANGE (6X22) (NSHF)

90011-KYJ-900

$0.43

13

BOLT, FLANGE (6X32)

90017-KYJ-900

$0.70

14

BOLT, FLANGE (6X39.5)

90019-KYJ-900

$0.75

15

NUT, FLANGE (10MM)

90204-K87-A30

$1.12

16

WASHER (10MM)

90410-GCC-000

$1.96

17

WASHER (12.2X17X1.5)

90418-KYJ-900

$0.86

19

PIN, DOWEL (8X14)

90702-KRM-840

$0.61

19

PIN, DOWEL (8X14) This part replaces 91105-KSP-910.

90702-KRM-840

$0.61

19

PIN, DOWEL (8X14) (Honda Code 0069310)

94301-08140

$2.04

20

BOLT, STUD (8X22)

92900-08022-3E

$2.10

21

PIN A, DOWEL (12X16)

94301-12160

Unavailable

22

BOLT, FLANGE (6X120)

95701-06120-00

$0.99

23

SENSOR ASSY., WATER TEMPERATURE

37870-MGS-D31

$44.73

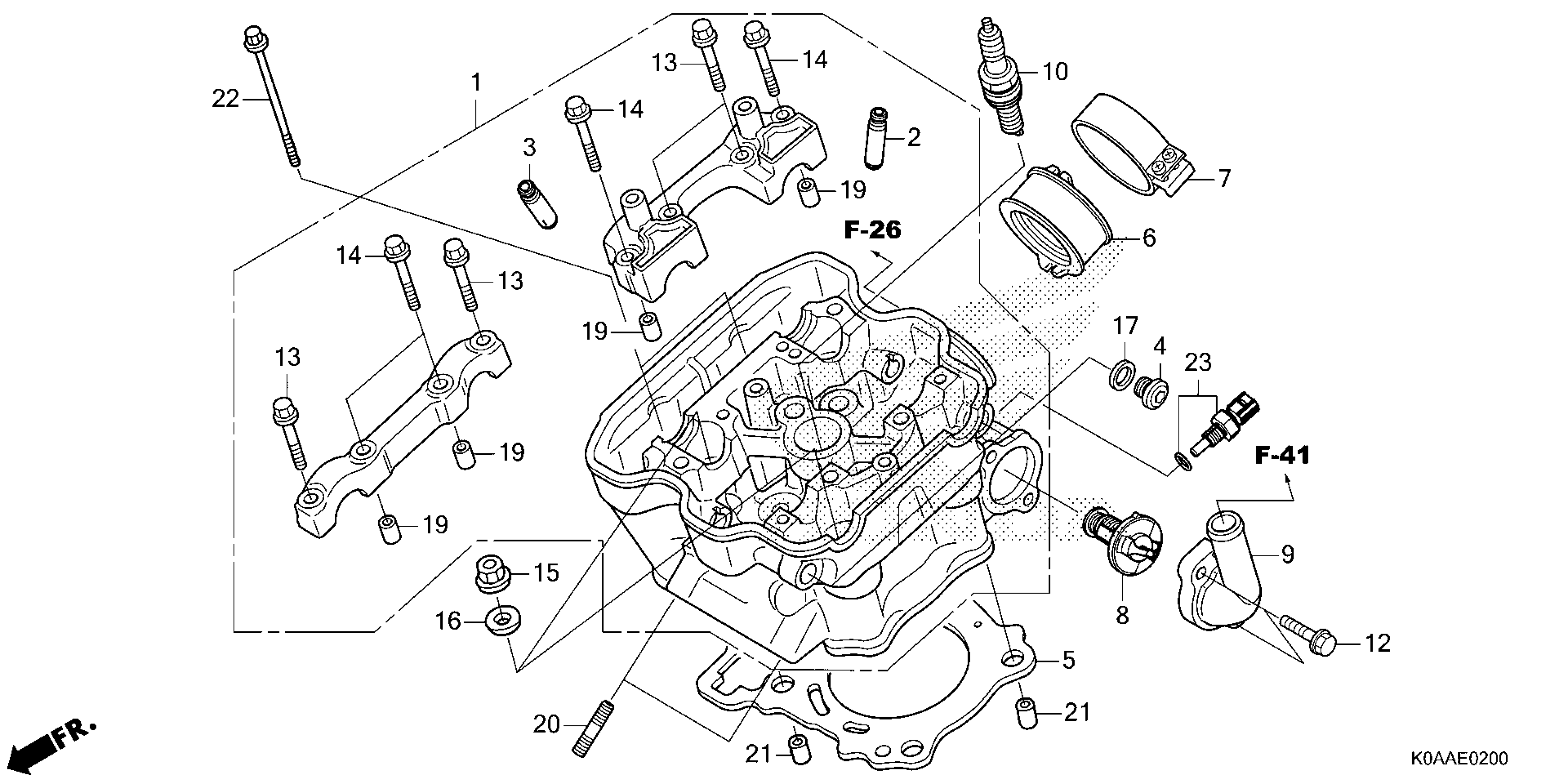

Honda CBF300NAAC (25) MOTORCYCLE, THA, VIN# MLHNC555-S5500001 CYLINDER HEAD Diagram
