Partiron

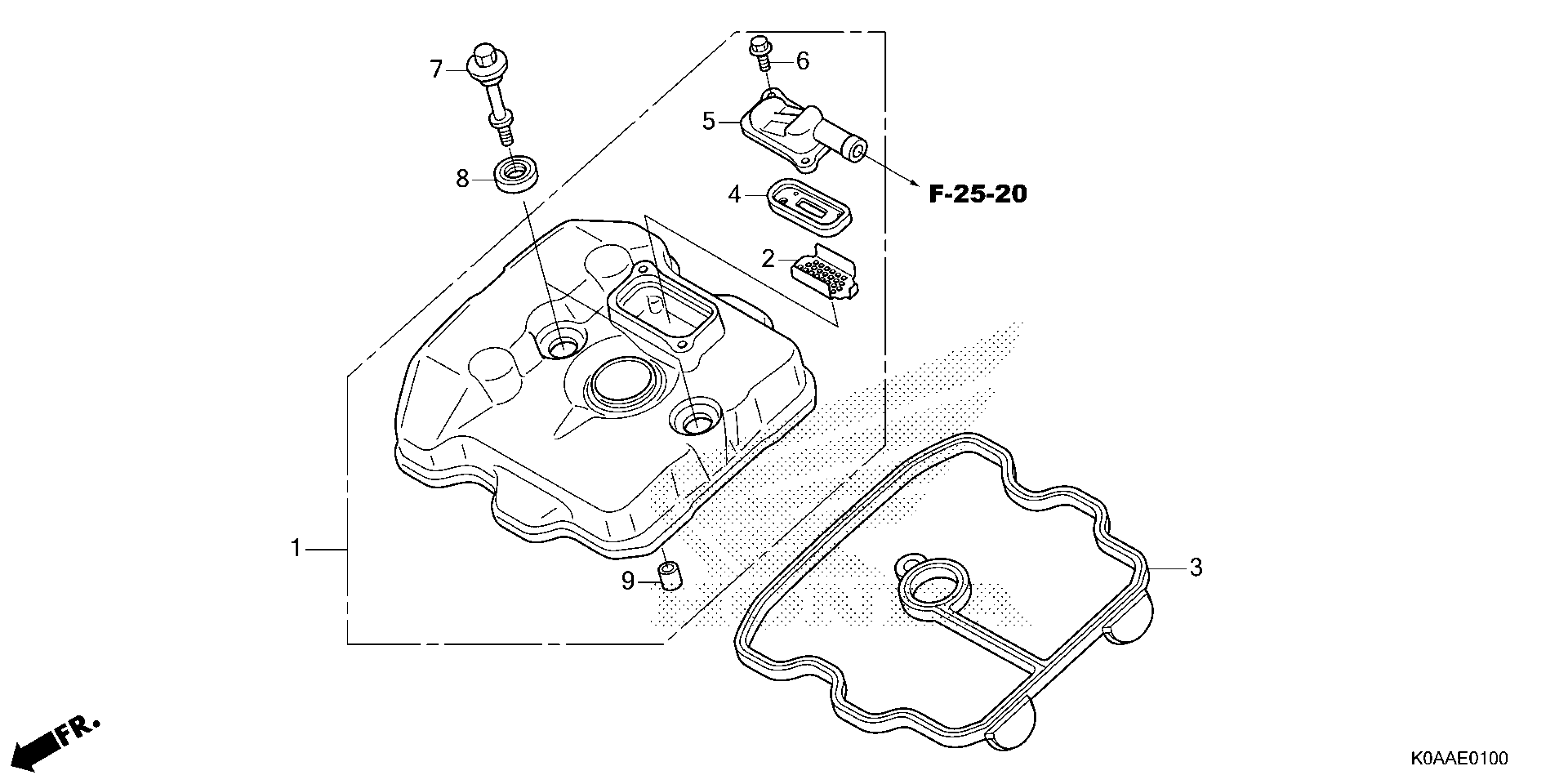

Honda CBF300NAAC (25) MOTORCYCLE, THA, VIN# MLHNC555-S5500001 CYLINDER HEAD COVER Diagram

#

Description
Price

1

COVER, CYLINDER HEAD

12300-K0A-EB0

$46.75

2

PLATE, PORT (AI)

12341-MAT-750

$12.74

3

GASKET, CYL HD CVR

12391-KYJ-710

$2.65

4

VALVE, REED (ARAI)

18601-KEA-741

$17.20

5

COVER, REED VALVE

18612-KYJ-900

$7.28

6

BOLT, FLANGE (5X14)

90002-KGH-900

$2.30

7

BOLT, HEAD COVER

90018-KYJ-900

$2.00

8

RUBBER, MOUNTING (Honda Code 3699139)

90543-MV9-670

$4.60

9

PIN, DOWEL (10X16)

90701-K0A-DB0

$0.28
