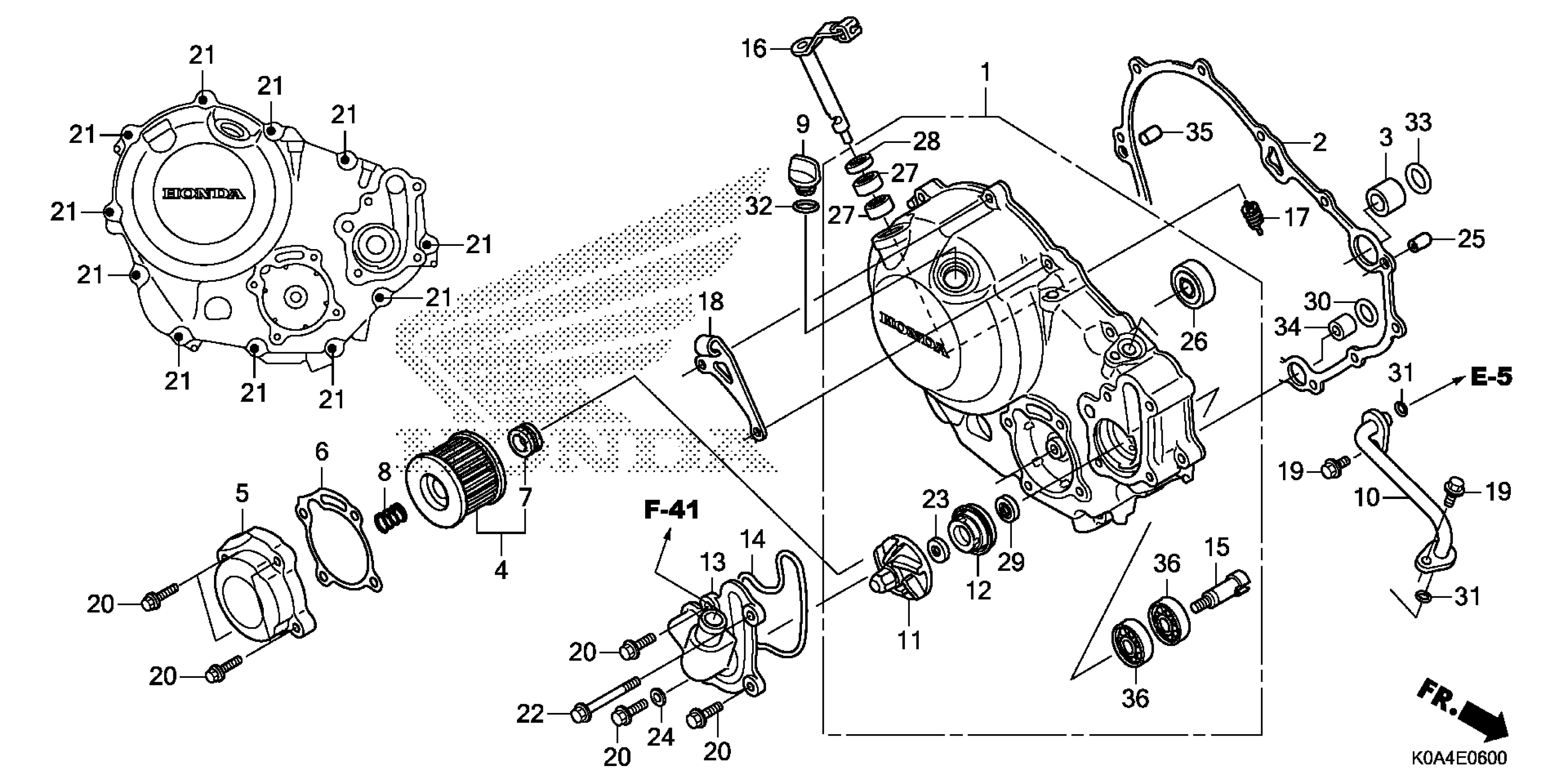

Honda CBF300NAAC (24) MOTORCYCLE, THA, VIN# MLHNC555-R5400001 RIGHT CRANKCASE COVER Diagram

COVER, R. CRANKCASE

11300-K0A-EB0

$89.06

GASKET, R. CRANKCASE COVER

11394-K87-A30

$9.12

COLLAR, OIL PASSAGE (18MM)

15326-KT7-000

$2.83

ELEMENT, OIL FILTER

15410-K0A-DB1

$2.64

COVER, OIL FILTER

15411-K0A-EB0

$4.93

GASKET, OIL FILTER COVER

15412-KYJ-901

$5.23

RUBBER, FILTER

15413-MC8-000

Unavailable

SPRING, OIL FILTER ELEMENT SETTING

15414-KF0-000

$4.05

CAP, OIL FILLER

15611-KA4-710

$13.22

PIPE, WATER

19120-K0A-DB0

Unavailable

IMPELLER, WATER PUMP

19215-KGH-900

$4.81

SEAL, MECHANICAL

19217-P72-013

$50.32

COVER, WATER PUMP

19220-K0A-EB0

$5.66

GASKET

19226-KYJ-710

$0.31

SHAFT, WATER PUMP

19241-KZZ-D20

$11.06

LEVER, CLUTCH

22810-K0A-E10

$25.94

SPRING, CLUTCH LEVER

22815-KM7-700

$3.98

RECEIVER

22821-K0A-DB0

$2.72

BOLT, FLANGE (6X16) (NSHF)

90010-KYJ-900

$0.44

BOLT, FLANGE (6X25) (NSHF)

90012-KYJ-900

Unavailable

BOLT, FLANGE (6X35)

90012-K64-N00

$0.29

BOLT, FLANGE (6X65) (NSHF)

90015-KYJ-900

$0.79

WASHER (7.2X13X1.2)

90423-KJ9-000

$2.16

WASHER (7.2X13X1.2) This part replaces 90423-KW6-900.

90423-KJ9-000

$2.16

WASHER, SEALING (6.5MM)

90463-ML7-000

$2.80

PIN, DOWEL (8X12)

90702-KFM-900

$0.62

BRG,BALL RADIAL 6

91009-KYJ-711

$22.66

BEARING, NEEDLE (12X16X10) This part replaces 91053-719-005.

91101-PZ9-000

$7.99

BEARING, NEEDLE (12X16X10)

91101-PZ9-000

$7.99

BEARING, NEEDLE (12X16X10)

91021-MKS-E01

$8.97

BEARING, NEEDLE (12X16X10) This part replaces 91022-KYJ-711.

91101-PZ9-000

$7.99

OIL SEAL (12X18X5) (ARAI)

91204-KK0-003

$4.83

OIL SEAL (12X26X5)

91202-KTW-901

$9.60

O-RING (11.8X1.9)

91301-KYJ-710

$0.12

O-RING (9.8X2.4)

91302-KYJ-710

$0.09

O-RING (18X3)

91307-035-000

$2.75

O-RING (17.8X1.9)

91322-K0A-DB0

$0.62

PIN A, DOWEL (12X16)

94301-12160

Unavailable

PIN B, DOWEL (8X14)

94302-08140

$2.76

BEARING, RADIAL BALL (6001)

96100-60013-00

$10.00

BEARING (6001)

91015-KYJ-711

$2.62
