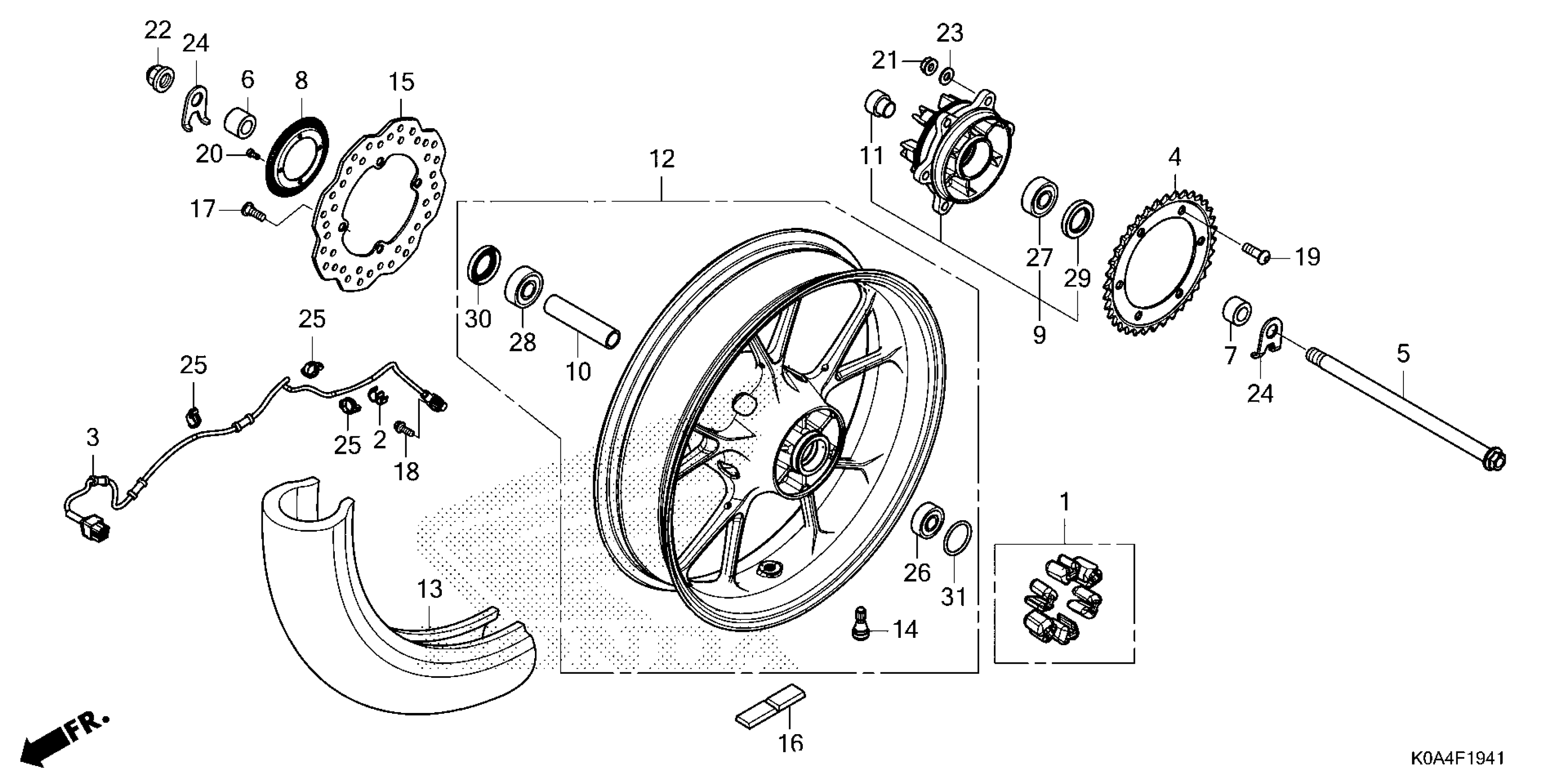

Honda CBF300NAAC (24) MOTORCYCLE, THA, VIN# MLHNC555-R5400001 REAR WHEEL (2) Diagram

#

Description
Price

1

DAMPER SET, WHEEL

06410-KEA-750

$44.86

2

CLAMP, PIPE

11152-KS4-003

$7.13

3

SENSOR, RR.

38510-K0A-EB1

$35.67

4

SPROCKET (36T)

41201-K0A-EB1

$36.08

5

AXLE, RR. WHEEL

42301-K0A-E10

$56.72

6

COLLAR, R. RR.

42312-K0A-DB0

$12.31

7

COLLAR, L. RR. WHEEL SIDE

42313-K87-A00

$11.69

8

RING, RR. PULSER

42515-K0A-EB0

$24.43

9

FLANGE SUB-A*YR325M*

42615-K0A-DB0ZA

$116.75

9

FLANGE SUB-A*NH303M*

42615-K0A-DB0ZB

$116.75

10

COLLAR, RR. WHEEL DISTANCE

42620-K94-T00

$9.30

11

COLLAR B, RR. AXLE DISTANCE This part replaces 42625-MC4-000.

42625-MAN-620

$19.64

12

WHEEL SUB-ASSY., RR. *NH303M* (MAT AXIS GRAY METALLIC)

42650-K94-T10ZC

$290.41

12

WHEEL SUB-ASSY., RR. *YR325M* (PYRITE BROWN METALLIC)

42650-K94-T10ZD

$293.25

13

TIRE, RR. (150/60R17M/C 66H) (DUNLOP)

42711-K94-T02

$148.42

14

VALVE, RIM (IRC)

42753-GM9-743

$8.68

15

DISK, RR. BRAKE

43251-K94-T01

$94.74

16

WEIGHT, BALANCE (10G) | Use up to Frame SN R5401594.

44721-MGH-H21

$3.24

16

WEIGHT, BALANCE (15G) | Use up to Frame SN R5401594.

44722-MGH-H21

$3.86

16

WEIGHT, BALANCE (20G) | Use up to Frame SN R5401594.

44723-MGH-H21

$4.18

16

WEIGHT, BALANCE (10G) | Use from Frame SN R5401595.

44721-MLN-EQ1

Unavailable

16

WEIGHT, BALANCE (15G) | Use from Frame SN R5401595.

44722-MLN-EQ1

Unavailable

16

WEIGHT, BALANCE (20G) | Use from Frame SN R5401595.

44723-MLN-EQ1

$3.80

17

BOLT, BRAKE DISK (8X24)

90105-KGH-900

$1.97

18

BOLT, FLANGE (6X14) (NOT AVAILABLE)

90117-KZZ-J80

$1.49

19

BOLT, SPROCKET FIXING

90128-KYJ-900

$1.49

20

BOLT, TORX (5X10)

90131-K64-N10

$2.39

21

NUT, U (10MM)

90304-KGH-901

$3.25

22

NUT, U (16MM)

90306-KCJ-951

$4.83

23

WASHER (10MM)

90502-MCF-000

$2.80

24

WASHER, RR. AXLE

90559-K94-T00

$5.75

25

CLIP, CABLE (14MM)

90690-MCA-003

$1.77

26

BEARING, RADIAL BALL (6203UU) (FUJIKOSHI) This part replaces 91051-K35-V02.

91051-K35-V03

$19.23

26

BEARING, RADIAL BALL (6203UU) (FUJIKOSHI)

91051-K35-V03

$19.23

27

BEARING, RADIAL BALL L (6204UU) (NTN)

91052-K53-D01

$190.38

28

BEARING, RADIAL BALL L (6303UU) (NTN)

91051-K53-D01

$20.57

29

DUST SEAL (30X47X8) (NOK) This part replaces 91253-443-761.

91253-443-762

$12.13

29

DUST SEAL (30X47X8) (NOK)

91253-443-762

$12.13

30

DUST SEAL (30X47X8) (NOK) This part replaces 91253-443-761.

91253-443-762

$12.13

30

DUST SEAL (30X47X8) (NOK)

91253-443-762

$12.13

31

O-RING (48X2)

91351-K64-N00

$1.49
