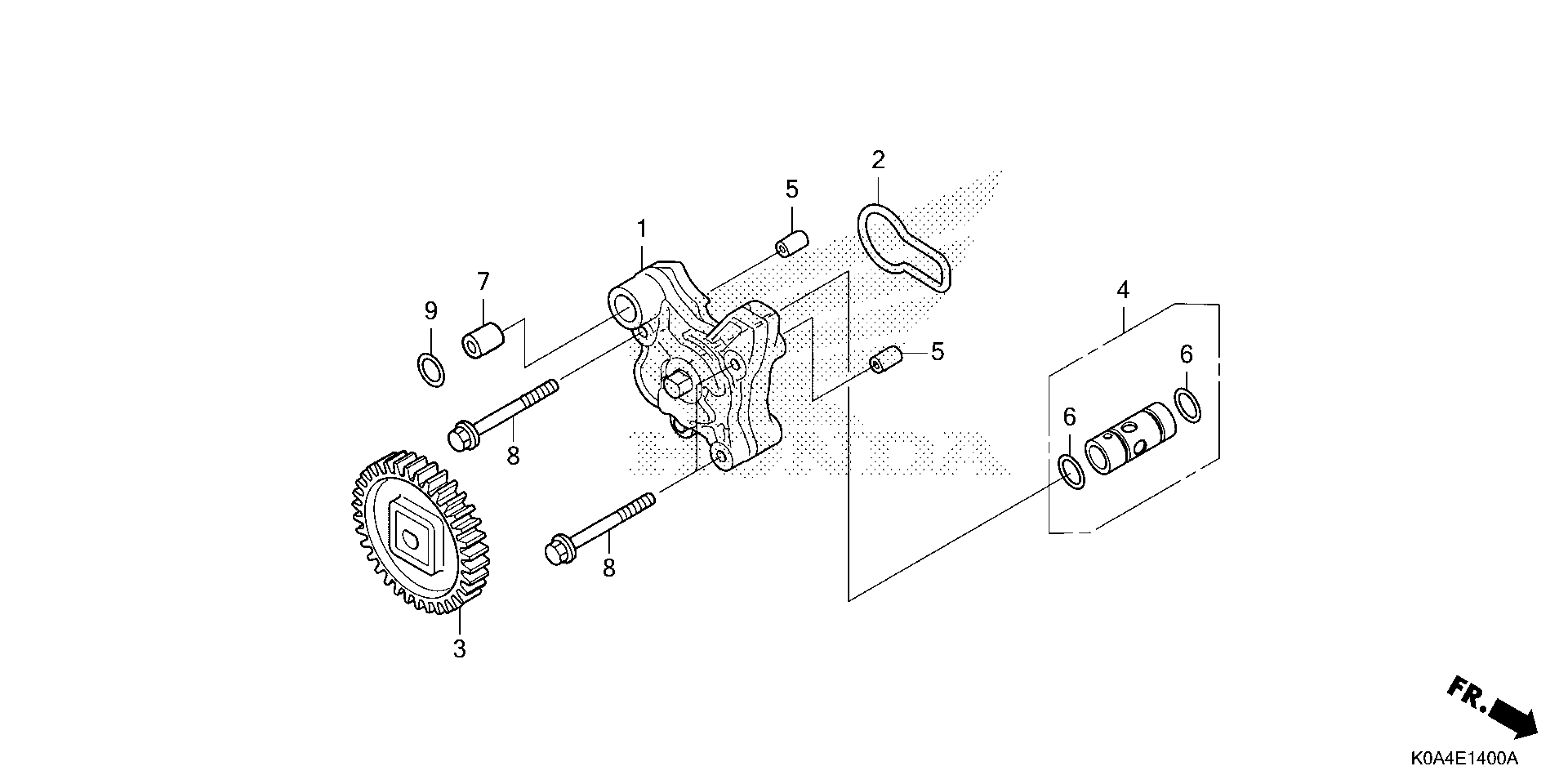

Honda CBF300NAAC (22) MOTORCYCLE, THA, VIN# MLHNC555-N5200001 TO MLHNC555-N5299999 OIL PUMP Diagram

PUMP ASSY., OIL

15100-KYJ-900

$83.90

GASKET, OIL PUMP

15119-KYJ-901

$2.85

GEAR, OIL PUMP (32T)

15130-KYJ-900

$28.64

VALVE ASSY., RELIEF

15220-KYJ-900

$31.64

PIN, DOWEL (8X12)

90702-KFM-900

$1.49

O-RING (11.8X1.9)

91301-KYJ-901

$1.49

PIN A, DOWEL (12X16)

94301-12160

$2.27

BOLT, FLANGE (6X45) This part replaces 95701-06045-00.

95701-06045-07

$2.06

BOLT, FLANGE (6X45) BOLT, FLANGE (6X60)

95701-06045-07

$2.06

O-RING (11.8X1.9)

91301-KYJ-901

$1.49
