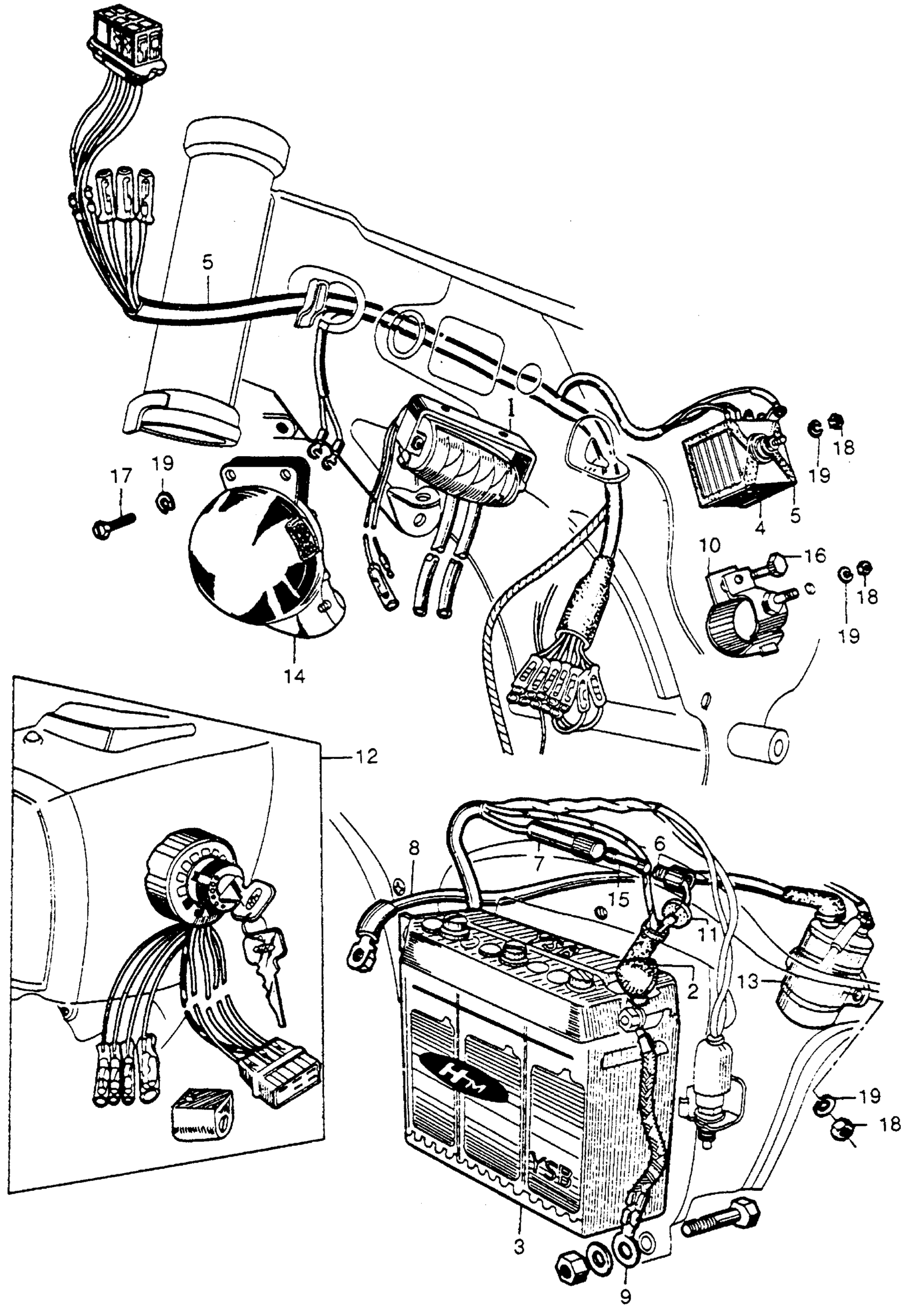

Honda CB92A MOTORCYCLE, JPN, VIN# CB92-010001 WIRE HARNESS + BATTERY Diagram

#

Description
Price

1

COIL, IGNITION (NOT AVAILABLE) This part replaces 30500-202-004.

30500-230-000

Unavailable

1

COIL, IGNITION (NOT AVAILABLE)

30500-230-000

Unavailable

2

COVER, BATTERY TERMINAL (NOT AVAILABLE)

31468-253-000

Unavailable

3

BATTERY ASSY. (NOT AVAILABLE)

31500-201-000

Unavailable

4

RECTIFIER ASSY. (NOT AVAILABLE)

31700-250-000

Unavailable

5

WIRE HARNESS (NOT AVAILABLE) | Use from Frame SN 310461 This part replaces 32100-205-020.

32100-205-305

Unavailable

5

WIRE HARNESS (NOT AVAILABLE) | Use from Frame SN 310461

32100-205-305

Unavailable

5

WIRE HARNESS (NOT AVAILABLE) | Use from Frame SN 310461 This part replaces 32100-215-000.

32100-205-305

Unavailable

6

CONNECTOR B, FUSE (NOT AVAILABLE)

32106-253-010

Unavailable

7

CONNECTOR A, FUSE (NOT AVAILABLE)

32112-253-010

Unavailable

8

CABLE, STARTER BATTERY (NOT AVAILABLE)

32402-201-010

Unavailable

9

CABLE, BATTERY GROUND (NOT AVAILABLE)

32601-201-000

Unavailable

10

CLIP A, WIRE HARNESS CONNECTOR (NOT AVAILABLE)

32933-250-010

Unavailable

11

GROMMET, WIRE HARNESS This part replaces 32983-001-000.

32983-011-000

$3.31

11

GROMMET, WIRE HARNESS

32983-011-000

$3.31

12

LOCK, HANDLEBAR (NOT AVAILABLE) | Use from Frame SN 910001 to 010507

35010-202-000

Unavailable

12

LOCK, HANDLEBAR (NOT AVAILABLE) | Use from Frame SN 910001 to 010507 This part replaces 35100-202-000.

35010-202-000

Unavailable

12

LOCK, HANDLEBAR (NOT AVAILABLE) | Use from Frame SN 910001 to 010507 This part replaces 53600-202-003.

35010-202-000

Unavailable

13

SWITCH ASSY., STARTER MAGNETIC (NOT AVAILABLE)

35850-205-000

Unavailable

14

HORN ASSY. This part replaces 38100-200-000.

38100-200-004

Unavailable

15

FUSE A (15A) This part replaces 38201-250-000.

98200-11500

$1.49

15

FUSE A (15A)

98200-11500

$1.49

16

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

16

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

16

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

17

BOLT, HEX. (6X20) This part replaces 92000-06020.

92101-06020-0A

$1.49

17

BOLT, HEX. (6X20)

92101-06020-0A

$1.49

18

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

18

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

18

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

18

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

18

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

18

NUT, HEX. (6MM)

94001-06200-0S

$1.49

18

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

19

WASHER, SPRING (6MM)

94111-06000

$1.49
