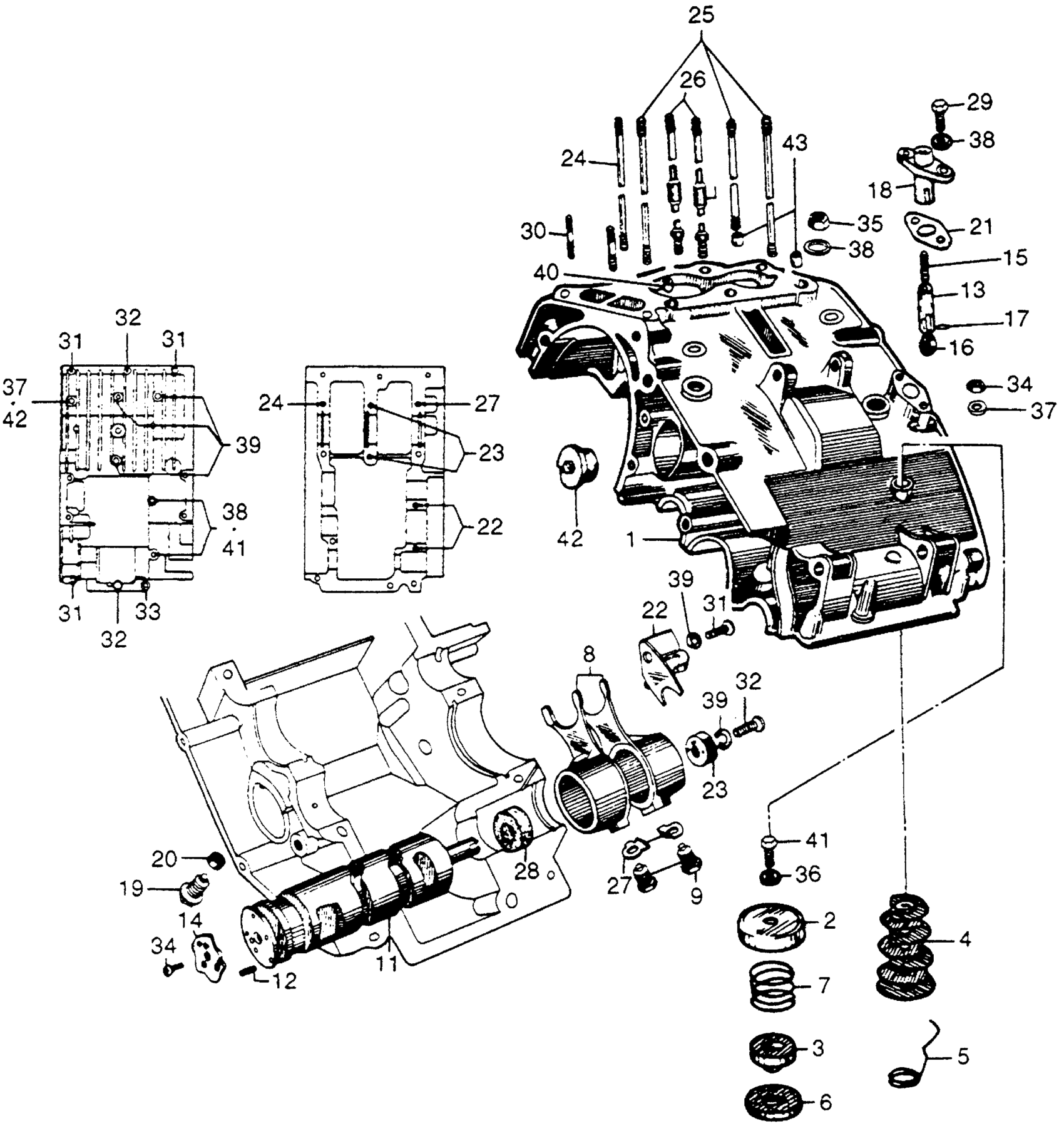

Honda CB92A MOTORCYCLE, JPN, VIN# CB92-010001 UPPER CRANKCASE + SHIFT DRUM Diagram

#

Description
Price

NI

ROLLER, SHIFT FORK GUIDE PIN (NOT AVAILABLE)

24262-253-000

Unavailable

1

CRANKCASE (UPPER) | Use from Engine SN 910001 to 910208 This part replaces 11101-205-020.

11101-205-070

Unavailable

1

CRANKCASE (UPPER) | Use from Engine SN 910001 to 910208 This part replaces 11101-205-040.

11101-205-070

Unavailable

1

CRANKCASE (UPPER) | Use from Engine SN 910001 to 910208 This part replaces 11101-205-050.

11101-205-070

Unavailable

1

CRANKCASE (UPPER) | Use from Engine SN 910001 to 910208 This part replaces 11101-205-060.

11101-205-070

Unavailable

1

CRANKCASE (UPPER) | Use from Engine SN 910001 to 910208

11101-205-070

Unavailable

1

CRANKCASE (UPPER) | Use from Engine SN 010500 to 1100259

11101-205-070

Unavailable

1

CRANKCASE (UPPER) (NOT AVAILABLE) | Use from Engine SN 1100260 to 210000

11101-205-080

Unavailable

1

CRANKCASE (UPPER) | Use from Engine SN 210001

11101-205-100

Unavailable

2

CAP, BREATHER (NOT AVAILABLE) | Use from Engine SN 910447 to 1103113

15715-202-000

Unavailable

3

COLLAR, BREATHER CAP (NOT AVAILABLE) | Use from Engine SN 910447 to 1103113

15716-202-000

Unavailable

4

BODY, BREATHER (NOT AVAILABLE) | Use from Engine SN 910447 to 1103113

15721-202-000

Unavailable

5

SPRING, BREATHER BODY SET (NOT AVAILABLE) | Use from Engine SN 910447 to 1103113

15727-205-000

Unavailable

6

VALVE, BREATHER (NOT AVAILABLE) | Use from Engine SN 910447 to 1103113

15731-202-000

Unavailable

7

SPRING, BREATHER VALVE (NOT AVAILABLE) | Use from Engine SN 910447 to 1103113

15732-201-000

Unavailable

8

FORK, GEARSHIFT

24211-205-000

Unavailable

9

PIN, SHIFT FORK GUIDE (NOT AVAILABLE)

24261-216-000

Unavailable

11

DRUM, GEARSHIFT | Use from Engine SN 2103550

24301-203-000

Unavailable

12

PIN, GEARSHIFT DRUM This part replaces 24421-200-000.

24421-230-000

$5.80

12

PIN, GEARSHIFT DRUM

24421-230-000

$5.80

13

STOPPER, SHIFT DRUM (NOT AVAILABLE)

24431-205-000

Unavailable

14

PLATE, DRUM STOPPER | Use from Engine SN 213550

24434-203-000

Unavailable

14

PLATE, DRUM STOPPER (NOT AVAILABLE) | Use from Engine SN 910001 to 213549

24434-205-000

Unavailable

15

SPRING, DRUM STOPPER

24435-205-000

Unavailable

16

ROLLER, SHIFT DRUM STOPPER (NOT AVAILABLE)

24436-205-000

Unavailable

17

PIN, SHIFT DRUM STOPPER ROLLER

24437-205-000

Unavailable

18

GUIDE, DRUM STOPPER (NOT AVAILABLE)

24441-205-000

Unavailable

19

SCREW, SHIFT DRUM GUIDE (NOT AVAILABLE)

24445-200-000

Unavailable

20

COLLAR, SHIFT DRUM GUIDE (NOT AVAILABLE)

24446-200-000

Unavailable

21

GASKET, DRUM STOPPER GUIDE (NOT AVAILABLE)

24449-205-000

Unavailable

22

STATOR, NEUTRAL SWITCH (NOT AVAILABLE)

35752-200-000

Unavailable

23

ROTOR, NEUTRAL SWITCH (NOT AVAILABLE) This part replaces 35753-205-000.

35753-286-003

Unavailable

23

ROTOR, NEUTRAL SWITCH (NOT AVAILABLE)

35753-286-003

Unavailable

24

BOLT A, CYLINDER STUD (NOT AVAILABLE)

90031-200-000

Unavailable

25

BOLT C, CYLINDER STUD (NOT AVAILABLE)

90033-205-000

Unavailable

26

BOLT, STUD (8X249) (NOT AVAILABLE)

92700-08249-35

Unavailable

27

WASHER, SHIFT FORK PIN LOCK (NOT AVAILABLE)

90416-200-000

Unavailable

28

OIL SEAL (12X25X4.5) This part replaces 91201-283-000.

91202-426-003

$5.57

28

OIL SEAL (12X25X4.5) This part replaces 91201-283-005.

91202-426-003

$5.57

28

OIL SEAL (12X25X4.5) This part replaces 91201-292-003.

91202-426-003

$5.57

28

OIL SEAL (12X25X4.5)

91202-426-003

$5.57

28

OIL SEAL (12X25X4.5) This part replaces 91204-200-000.

91202-426-003

$5.57

29

BOLT, HEX. (6X16) This part replaces 92000-06016.

92101-06016-0A

$1.49

29

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.49

29

BOLT, HEX. (6X16) This part replaces 92000-06016-1A.

92101-06016-0A

$1.49

29

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.49

29

BOLT, HEX. (6X16)

92101-06016-0A

$1.49

29

BOLT, HEX. (6X16) This part replaces 92200-06016-0A.

92101-06016-0A

$1.49

30

BOLT, STUD (6X27) (NOT AVAILABLE)

92712-06027

Unavailable

31

SCREW, PAN (6X12) This part replaces 93500-06012.

93500-06012-0A

$1.49

31

SCREW, PAN (6X12)

93500-06012-0A

$1.49

31

SCREW, PAN (6X12) This part replaces 93500-06012-00.

93500-06012-0A

$1.49

32

SCREW, PAN (6X20) This part replaces 93500-06020.

93500-06020-0A

$1.49

32

SCREW, PAN (6X20)

93500-06020-0A

$1.49

33

SCREW, FLAT (6X16) This part replaces 93600-06016.

93600-06016-0A

$1.49

33

SCREW, FLAT (6X16)

93600-06016-0A

$1.49

34

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

34

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

34

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

34

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

34

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

34

NUT, HEX. (6MM)

94001-06200-0S

$1.49

34

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

35

NUT, HEX. (8MM) This part replaces 94001-08000.

94030-08000

$1.49

35

NUT, HEX. (8MM)

94030-08000

$1.49

35

NUT, HEX. (8MM) This part replaces 94030-08200.

94030-08000

$1.49

36

WASHER, PLAIN (5MM)

94101-05000

$1.49

37

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

37

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

37

WASHER, PLAIN (6MM)

94101-06800

$1.49

38

WASHER, PLAIN (8MM)

94101-08000

$1.49

39

WASHER, SPRING (6MM)

94111-06000

$1.49

40

PIN A, DOWEL (10X20)

94301-10200

$2.35

41

BOLT, HEX. (5X16) This part replaces 92000-05016.

92101-05016-0A

$1.49

41

BOLT, HEX. (5X16) This part replaces 92000-05016-0A.

92101-05016-0A

$1.49

41

BOLT, HEX. (5X16)

92101-05016-0A

$1.49

42

RUBBER, SEALING (26MM) (NOT AVAILABLE)

90802-200-010

Unavailable
