- CB92A MOTORCYCLE, JPN, VIN# CB92-010001
SWINGARM + CHAIN CASE

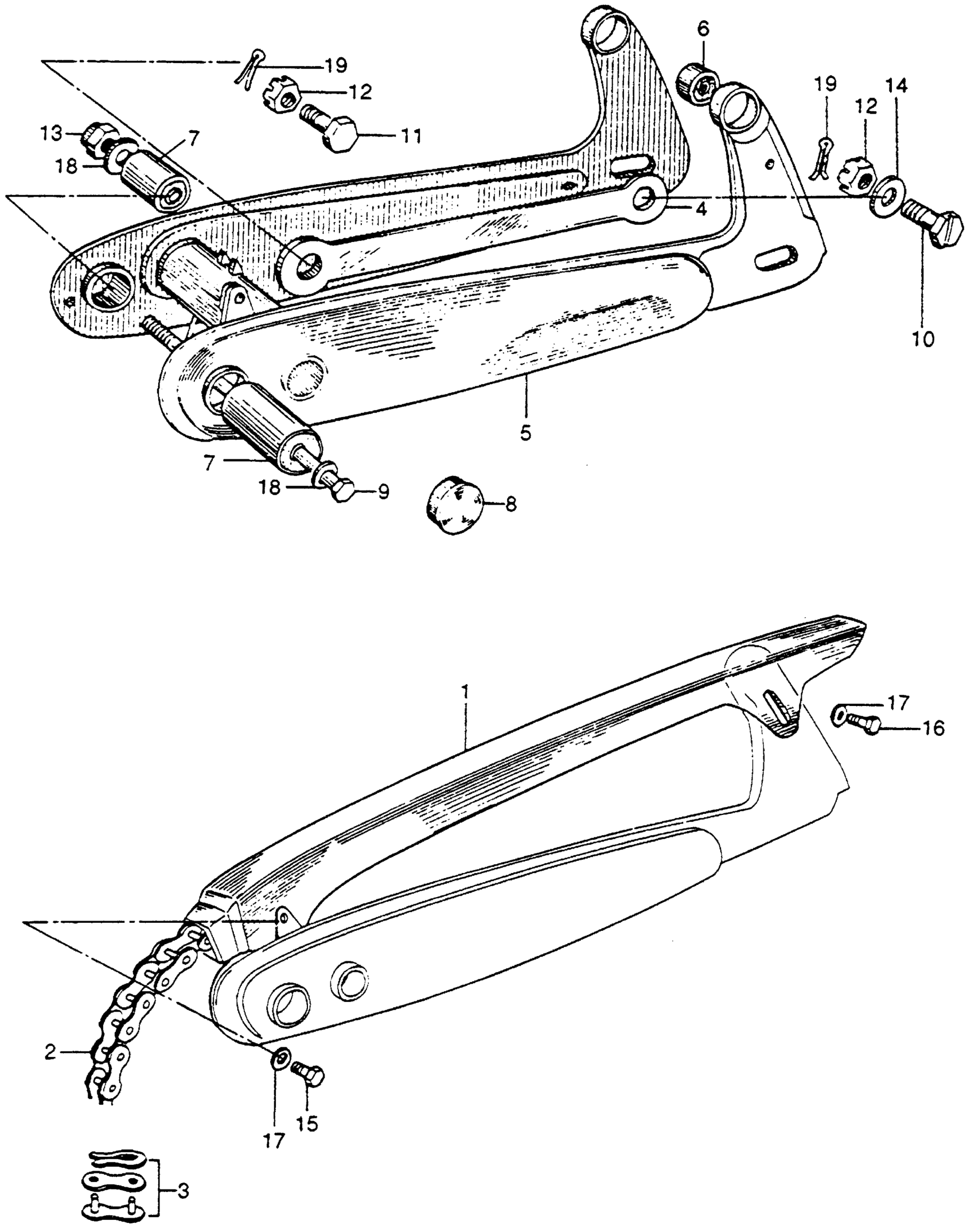

Honda CB92A MOTORCYCLE, JPN, VIN# CB92-010001 SWINGARM + CHAIN CASE Diagram
#
Description
Price
1
CASE, DRIVE CHAIN (NOT AVAILABLE)
40510-205-010Z
Unavailable
2
CHAIN, DRIVE (NOT AVAILABLE)
40530-205-000
Unavailable
3
MASTER LINK This part replaces 40531-205-003.
40531-205-013
Unavailable
3
MASTER LINK
40531-205-013
Unavailable
3
MASTER LINK This part replaces 40531-216-003.
40531-205-013
Unavailable
4
ARM, RR. BRAKE STOPPER (NOT AVAILABLE)
43131-205-010
Unavailable
5
SWINGARM (NOT AVAILABLE)
52100-205-020Z
Unavailable
6
BUSH, RR. SHOCK RUBBER (LOWER) (NOT AVAILABLE)
52107-200-310
Unavailable
7
BUSH, RUBBER SWINGARM PIVOT (N/A: SEE ASSEMBLY)
52119-250-000
Unavailable
8
CAP, CROSSMEMBER SIDE (NOT AVAILABLE)
52161-200-000
Unavailable
9
BOLT, SWINGARM PIVOT (NOT AVAILABLE)
90121-205-000
Unavailable
10
BOLT, RR. PANEL STOPPER (NOT AVAILABLE) | Use from Frame SN 910001 to 2102532
90127-205-000
Unavailable
10
BOLT, RR. PANEL STOPPER (NOT AVAILABLE) | Use from Frame SN 2102533
90127-205-010
Unavailable
11
BOLT, RR. BRAKE (NOT AVAILABLE) | Use from Frame SN 910001 to 2102532
90133-205-010
Unavailable
11
BOLT, RR. BRAKE (NOT AVAILABLE) | Use from Frame SN 2102533
90133-205-020
Unavailable
12
NUT, RR. DAMPER SETTING (NOT AVAILABLE)
90312-205-000
Unavailable
13
NUT, LOCK (12MM)
90353-250-000
Unavailable
14
WASHER, TORQUE LINK SETTING (NOT AVAILABLE)
90535-205-000
Unavailable
15
BOLT, HEX. (6X6) (NOT AVAILABLE)
92000-06006-02
Unavailable
