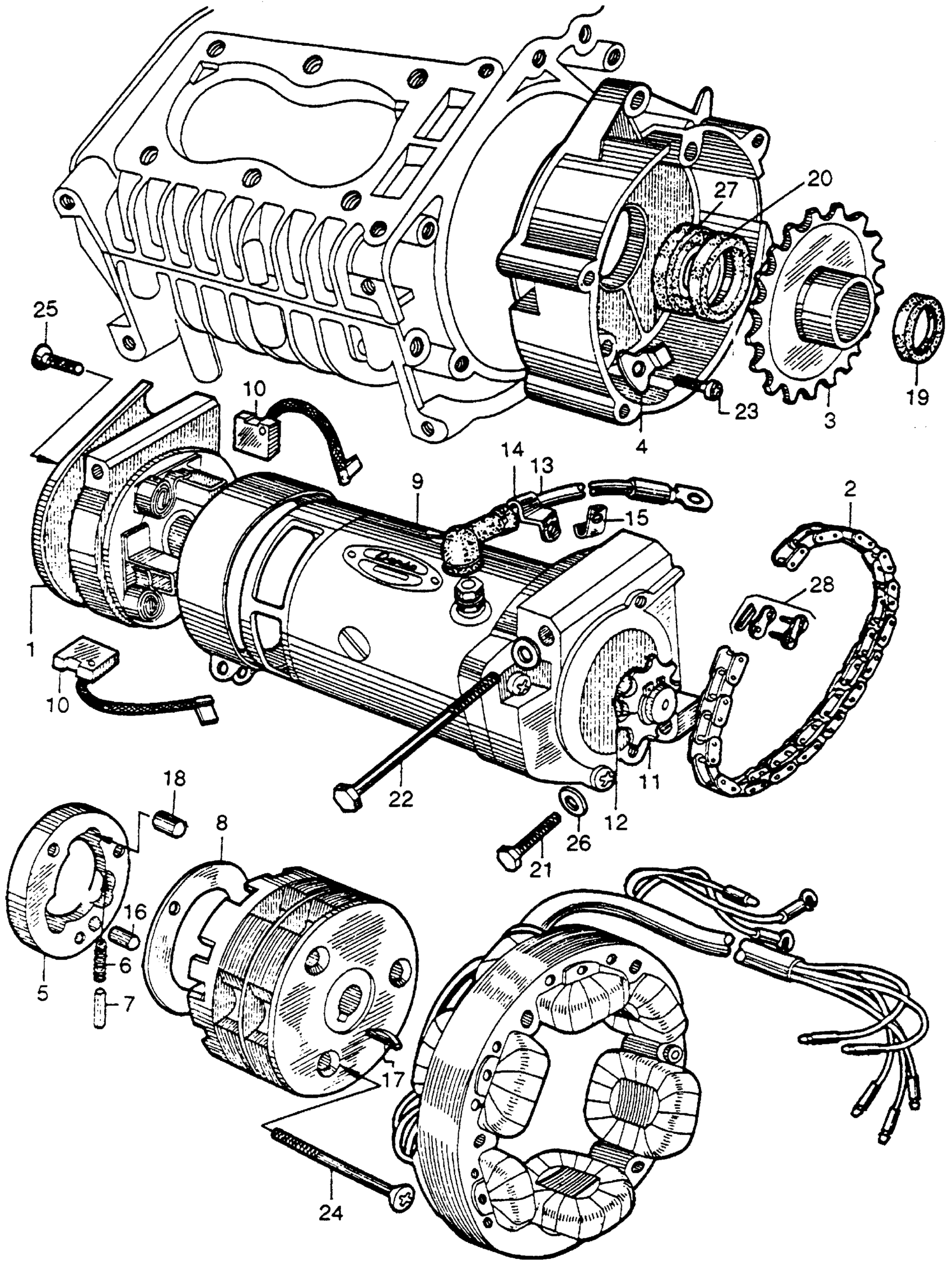

Honda CB92A MOTORCYCLE, JPN, VIN# CB92-010001 STARTER MOTOR Diagram

#

Description
Price

1

COVER, STARTER MOTOR SIDE (NOT AVAILABLE)

11641-201-020

Unavailable

2

CHAIN, STARTER (DK219H) (NOT AVAILABLE)

28101-201-003

Unavailable

3

SPROCKET, STARTER (NOT AVAILABLE)

28110-201-020

Unavailable

4

PLATE, STARTER SPROCKET SET (NOT AVAILABLE)

28117-201-000

Unavailable

5

CLUTCH, STARTER (OUTER) (NOT AVAILABLE)

28120-201-010

Unavailable

6

SPRING, STARTER CLUTCH ROLLER

28125-253-020

$5.57

7

CAP, STARTER CLUTCH ROLLER SPRING

28126-253-030

$4.53

8

PLATE, STARTER CLUTCH SIDE

28128-253-030

$6.08

9

MOTOR ASSY., STARTER

31200-201-054

Unavailable

10

BRUSH, STARTER MOTOR CARBON (NOT AVAILABLE)

31201-253-014

Unavailable

11

SPROCKET, STARTER MOTOR (NOT AVAILABLE)

31202-253-003

Unavailable

11

SPROCKET, STARTER MOTOR (NOT AVAILABLE) This part replaces 31202-253-004.

31202-253-003

Unavailable

12

CIRCLIP (OUTER) (13MM) This part replaces 31203-253-003.

94510-13000

$1.49

12

CIRCLIP (OUTER) (13MM) This part replaces 31203-253-004.

94510-13000

$1.49

12

CIRCLIP (OUTER) (13MM)

94510-13000

$1.49

13

CABLE, STARTER MOTOR (NOT AVAILABLE)

32401-201-000

Unavailable

14

CLAMP A, STARTER CABLE (NOT AVAILABLE)

32911-201-000

Unavailable

15

CLAMP B, STARTER CABLE (NOT AVAILABLE)

32912-201-000

Unavailable

16

PIN, KNOCK (6X17.5)

90701-250-000

$2.70

16

PIN, KNOCK (6X17.5) (NOT AVAILABLE)

90704-259-000

Unavailable

17

KEY (4MM) (NOT AVAILABLE)

90741-202-000

Unavailable

18

ROLLER (10.2X9.5)

91101-253-020

$3.98

19

OIL SEAL (18X27X5) (SC TYPE) (NOT AVAILABLE)

91201-201-000

Unavailable

19

OIL SEAL (18X27X5) (SC TYPE) (NOT AVAILABLE) This part replaces 91201-201-010.

91201-201-000

Unavailable

20

OIL SEAL (28X38X5.5) (VC-TYPE) (NOT AVAILABLE)

91207-201-010

$13.10

21

BOLT, HEX. (6X20) This part replaces 92000-06020.

92101-06020-0A

$1.49

21

BOLT, HEX. (6X20)

92101-06020-0A

$1.49

22

BOLT, HEX. (6X82) (SOURCE: VINTAGE PARTS INC.) This part replaces 92000-06082.

92000-06085

Unavailable

22

BOLT, HEX. (6X82) (SOURCE: VINTAGE PARTS INC.)

92000-06085

Unavailable

23

SCREW, PAN (6X12) This part replaces 93500-06012.

93500-06012-0A

$1.49

23

SCREW, PAN (6X12)

93500-06012-0A

$1.49

23

SCREW, PAN (6X12) This part replaces 93500-06012-00.

93500-06012-0A

$1.49

24

SCREW, FLAT (6X20) This part replaces 93600-06020.

93600-06020-0A

$1.49

24

SCREW, FLAT (6X20)

93600-06020-0A

$1.49

25

SCREW, OVAL (5X16) This part replaces 93700-05016.

93700-05016-0A

$1.49

25

SCREW, OVAL (5X16)

93700-05016-0A

$1.49

26

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

26

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

26

WASHER, PLAIN (6MM)

94101-06800

$1.49

27

OIL SEAL (17.9X38X5) (NOT AVAILABLE)

91305-202-010

Unavailable

28

JOINT, CAM CHAIN (DK219)

14411-259-000

Unavailable
