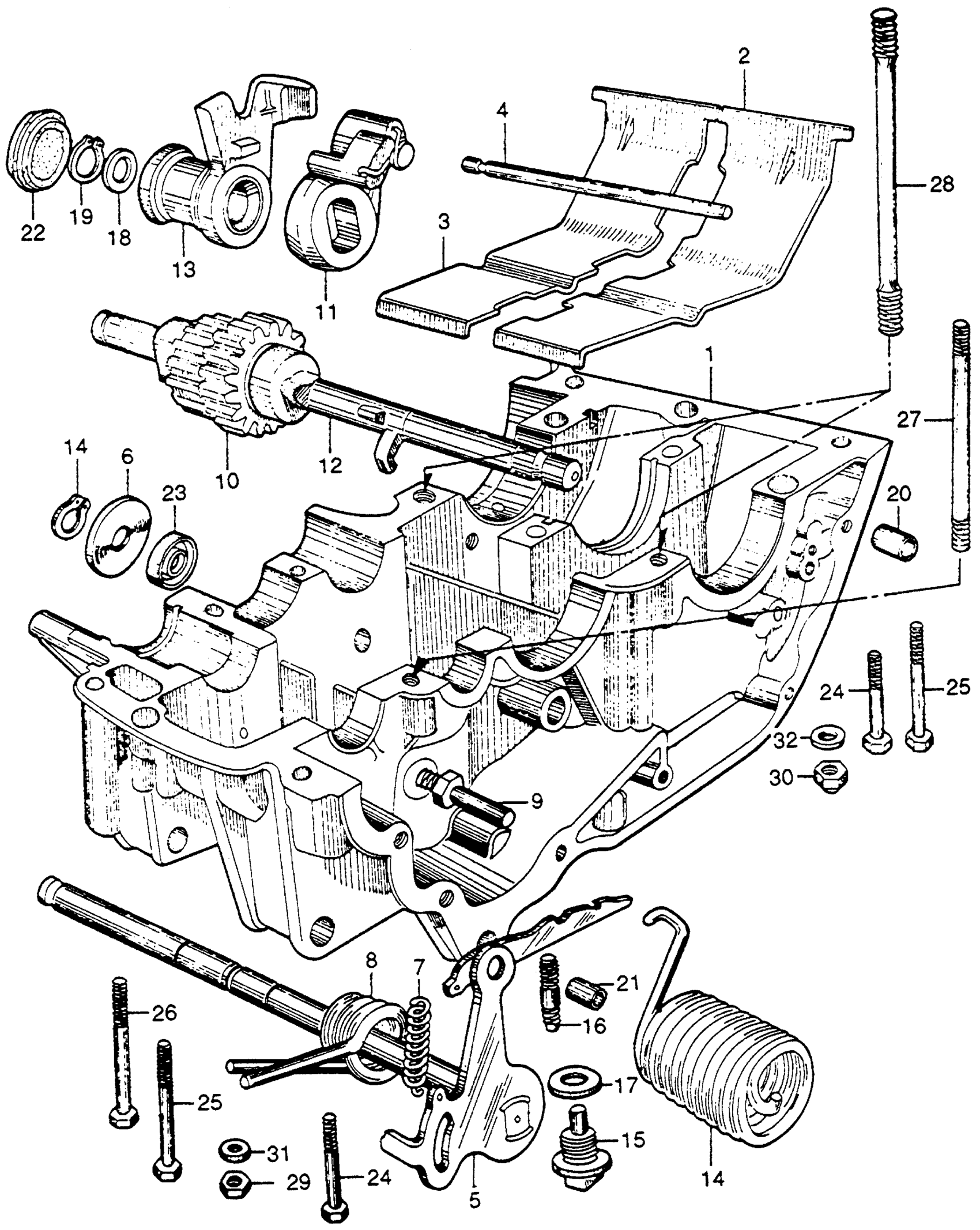

Honda CB92A MOTORCYCLE, JPN, VIN# CB92-010001 LOWER CRANKCASE + KICK STARTER Diagram

#

Description
Price

1

CRANKCASE (LOWER) (NOT AVAILABLE) | Use from Engine SN 910001 to 91208 This part replaces 11200-205-020.

11200-205-050

Unavailable

1

CRANKCASE (LOWER) (NOT AVAILABLE) | Use from Engine SN 910001 to 91208 This part replaces 11200-205-030.

11200-205-050

Unavailable

1

CRANKCASE (LOWER) (NOT AVAILABLE) | Use from Engine SN 910001 to 91208

11200-205-050

Unavailable

1

CRANKCASE (LOWER) | Use from Engine SN 1100260 to 2100000

11200-205-060

Unavailable

1

CRANKCASE (LOWER) | Use from Engine SN 2100001

11200-205-080

Unavailable

2

SEPARATOR, R. OIL (NOT AVAILABLE)

11761-205-000

Unavailable

3

SEPARATOR, L. OIL (NOT AVAILABLE)

11771-205-000

Unavailable

4

BAR, OIL SEPARATOR SETTING (NOT AVAILABLE)

11781-200-000

Unavailable

5

SPINDLE, GEARSHIFT (NOT AVAILABLE)

24610-205-010

Unavailable

6

STOPPER, GEARSHIFT SPINDLE (NOT AVAILABLE)

24621-200-000

Unavailable

7

SPRING, GEARSHIFT ARM This part replaces 24641-200-000.

24641-216-000

$2.70

7

SPRING, GEARSHIFT ARM

24641-216-000

$2.70

8

SPRING, GEARSHIFT RETURN

24651-200-000

Unavailable

9

PIN, GEARSHIFT RETURN SPRING (NOT AVAILABLE)

24652-200-000

Unavailable

10

PINION, KICK STARTER (NOT AVAILABLE)

28211-205-000

Unavailable

11

RATCHET, KICK STARTER (NOT AVAILABLE)

28221-200-010

Unavailable

12

SPINDLE, KICK STARTER (NOT AVAILABLE)

28251-205-010

Unavailable

13

BUSH, KICK STARTER SPINDLE (NOT AVAILABLE)

28258-200-000

Unavailable

14

SPRING, KICK STARTER (NOT AVAILABLE)

28281-205-000

$20.03

15

BOLT, DRAIN VALVE This part replaces 90013-205-000.

90013-230-000

Unavailable

15

BOLT, DRAIN VALVE

90013-230-000

Unavailable

16

BOLT, STUD (8X32) (NOT AVAILABLE)

90064-200-000

Unavailable

17

GASKET, DRAIN This part replaces 90407-205-000.

90407-367-690

$4.15

17

GASKET, DRAIN

90407-367-690

$4.15

18

WASHER, THRUST (15X1) This part replaces 90454-200-000.

90457-HB3-000

$2.89

18

WASHER, THRUST (15X1)

90457-HB3-000

$2.89

19

CIRCLIP, OUTER (15MM) This part replaces 90604-200-000.

94510-15000

$1.49

19

CIRCLIP (OUTER) (15MM)

94510-15000

$1.49

20

PIN, KNOCK (8.5X11) (NOT AVAILABLE)

90701-200-000

Unavailable

21

PIN A, DOWEL (10X14) This part replaces 90703-200-000.

94301-10140

$2.28

21

PIN A, DOWEL (10X14)

94301-10140

$2.28

22

RUBBER, SEALING (30MM) (NOT AVAILABLE)

90803-200-000

Unavailable

23

OIL SEAL (12X25X4.5) This part replaces 91201-283-000.

91202-426-003

$5.57

23

OIL SEAL (12X25X4.5) This part replaces 91201-283-005.

91202-426-003

$5.57

23

OIL SEAL (12X25X4.5) This part replaces 91201-292-003.

91202-426-003

$5.57

23

OIL SEAL (12X25X4.5)

91202-426-003

$5.57

23

OIL SEAL (12X25X4.5) This part replaces 91204-200-000.

91202-426-003

$5.57

24

BOLT, HEX. (6X40) This part replaces 92000-06040.

92101-06040-0A

Unavailable

24

BOLT, HEX. (6X40) This part replaces 92000-06040-0A.

92101-06040-0A

Unavailable

24

BOLT, HEX. (6X40)

92101-06040-0A

Unavailable

25

BOLT, HEX. (6X55) This part replaces 92000-06050.

92101-06055-0A

$1.98

25

BOLT, HEX. (6X55) This part replaces 92000-06050-0A.

92101-06055-0A

$1.98

25

BOLT, HEX. (6X55) This part replaces 92000-06055.

92101-06055-0A

$1.98

25

BOLT, HEX. (6X55) This part replaces 92000-06055-0A.

92101-06055-0A

$1.98

25

BOLT, HEX. (6X55)

92101-06055-0A

$1.98

26

BOLT, HEX. (6X75) (SOURCE: VINTAGE PARTS INC.) This part replaces 92000-06075.

92101-06075-0A

Unavailable

26

BOLT, HEX. (6X75) (SOURCE: VINTAGE PARTS INC.)

92101-06075-0A

Unavailable

27

BOLT, STUD (6X93) (NOT AVAILABLE)

92700-06092

Unavailable

27

BOLT, STUD (6X93) (NOT AVAILABLE) This part replaces 92700-06093.

92700-06092

Unavailable

28

BOLT, STUD (8X110) (NOT AVAILABLE)

92700-08110

Unavailable

29

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

29

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

29

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

29

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

29

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

29

NUT, HEX. (6MM)

94001-06200-0S

$1.49

29

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

30

NUT, CAP (8MM) This part replaces 90012-286-000.

94021-08000-0S

$1.55

30

NUT, CAP (8MM) This part replaces 94021-08000.

94021-08000-0S

$1.55

30

NUT, CAP (8MM)

94021-08000-0S

$1.55

30

NUT, CAP (8MM) This part replaces 94022-08000-0S.

94021-08000-0S

$1.55

31

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

31

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

31

WASHER, PLAIN (6MM)

94101-06800

$1.49

32

WASHER, PLAIN (8MM)

94101-08000

$1.49
