CLUTCH

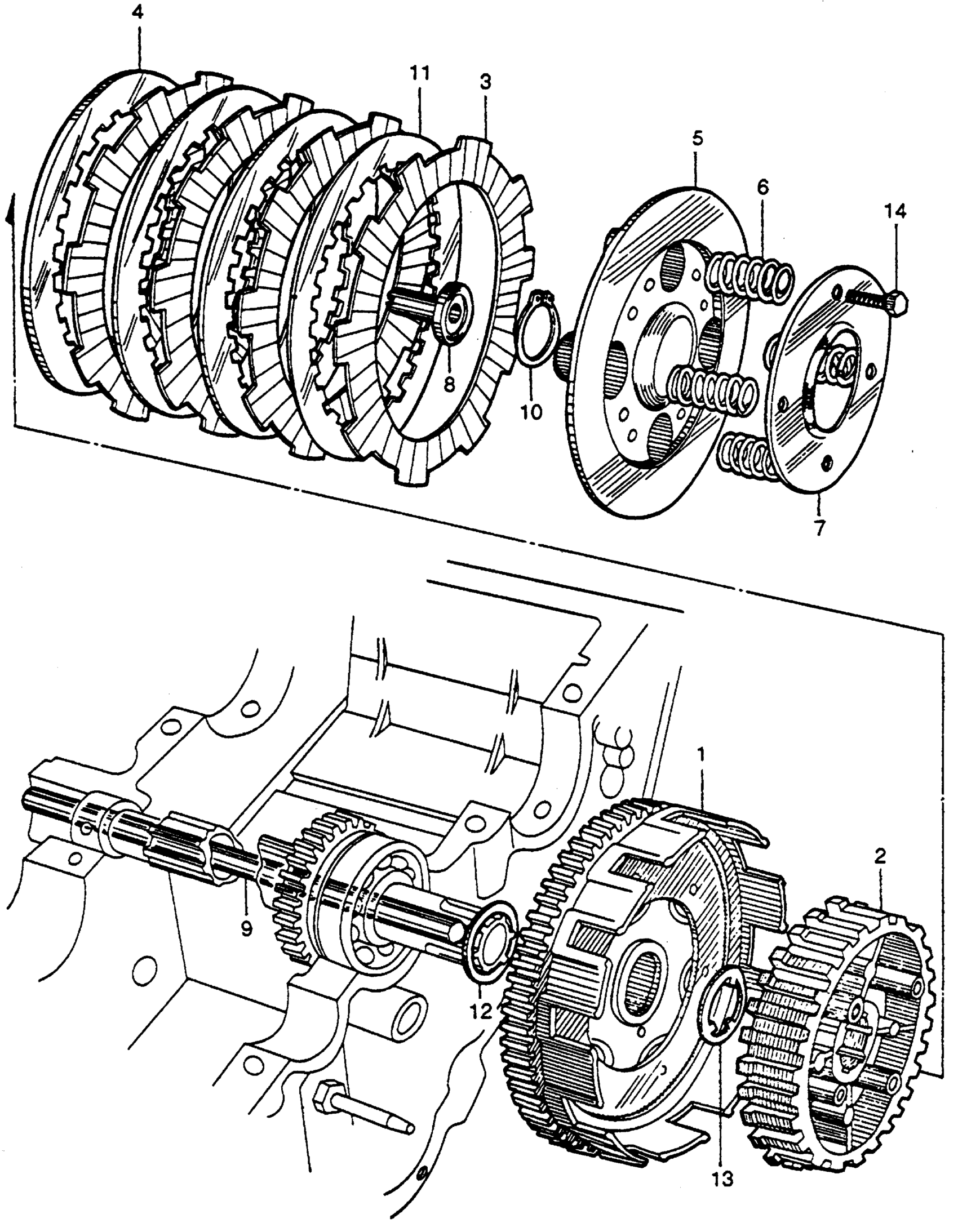

Honda CB92A MOTORCYCLE, JPN, VIN# CB92-010001 CLUTCH Diagram
#
Description
Price
1
CLUTCH (OUTER) (NOT AVAILABLE) | Use from Engine SN 910001 to 210000
22100-205-000
Unavailable
1
CLUTCH (OUTER) (NOT AVAILABLE) | Use from Engine SN 2100001
22100-205-020
Unavailable
2
CENTER, CLUTCH | Use from Engine SN 910001 to 011092 This part replaces 22120-200-010.
22120-202-010
Unavailable
2
CENTER, CLUTCH (NOT AVAILABLE) | Use from Engine SN 011093 to 2100000
22120-202-000
Unavailable
2
CENTER, CLUTCH | Use from Engine SN 910001 to 011092
22120-202-010
Unavailable
2
CENTER, CLUTCH | Use from Engine SN 210001
22120-202-010
Unavailable
3
DISK, CLUTCH FRICTION This part replaces 22201-200-000.
22201-240-000
Unavailable
3
DISK, CLUTCH FRICTION This part replaces 22201-216-000.
22201-240-000
Unavailable
3
DISK, CLUTCH FRICTION This part replaces 22201-217-600.
22201-240-000
Unavailable
3
DISK, CLUTCH FRICTION
22201-240-000
Unavailable
4
PLATE A, CLUTCH (NOT AVAILABLE) This part replaces 22321-200-000.
22321-235-000
Unavailable
5
PLATE, CLUTCH PRESSURE
22351-200-010
Unavailable
6
SPRING, CLUTCH (NOT AVAILABLE) This part replaces 22401-205-000.
22401-230-000
Unavailable
6
SPRING, CLUTCH (NOT AVAILABLE)
22401-230-000
Unavailable
7
PLATE, CLUTCH SPRING RETAINER (NOT AVAILABLE) This part replaces 22408-200-000.
22408-230-000
Unavailable
7
PLATE, CLUTCH SPRING RETAINER (NOT AVAILABLE)
22408-230-000
Unavailable
8
PIECE, CLUTCH LIFTER JOINT (NOT AVAILABLE) | Use from Engine SN 910001 to 2100000 This part replaces 22838-200-000.
22838-202-000
Unavailable
8
PIECE, CLUTCH LIFTER JOINT (NOT AVAILABLE) | Use from Engine SN 910001
22838-202-000
Unavailable
9
ROD, CLUTCH LIFTER (NOT AVAILABLE)
22850-200-010
Unavailable
10
RING A SET (20MM) (NOT AVAILABLE)
22903-200-000
Unavailable
12
WASHER B (20MM) (NOT AVAILABLE)
90452-200-000
Unavailable
13
WASHER C, THRUST (20MM) (NOT AVAILABLE)
90453-200-000
Unavailable
