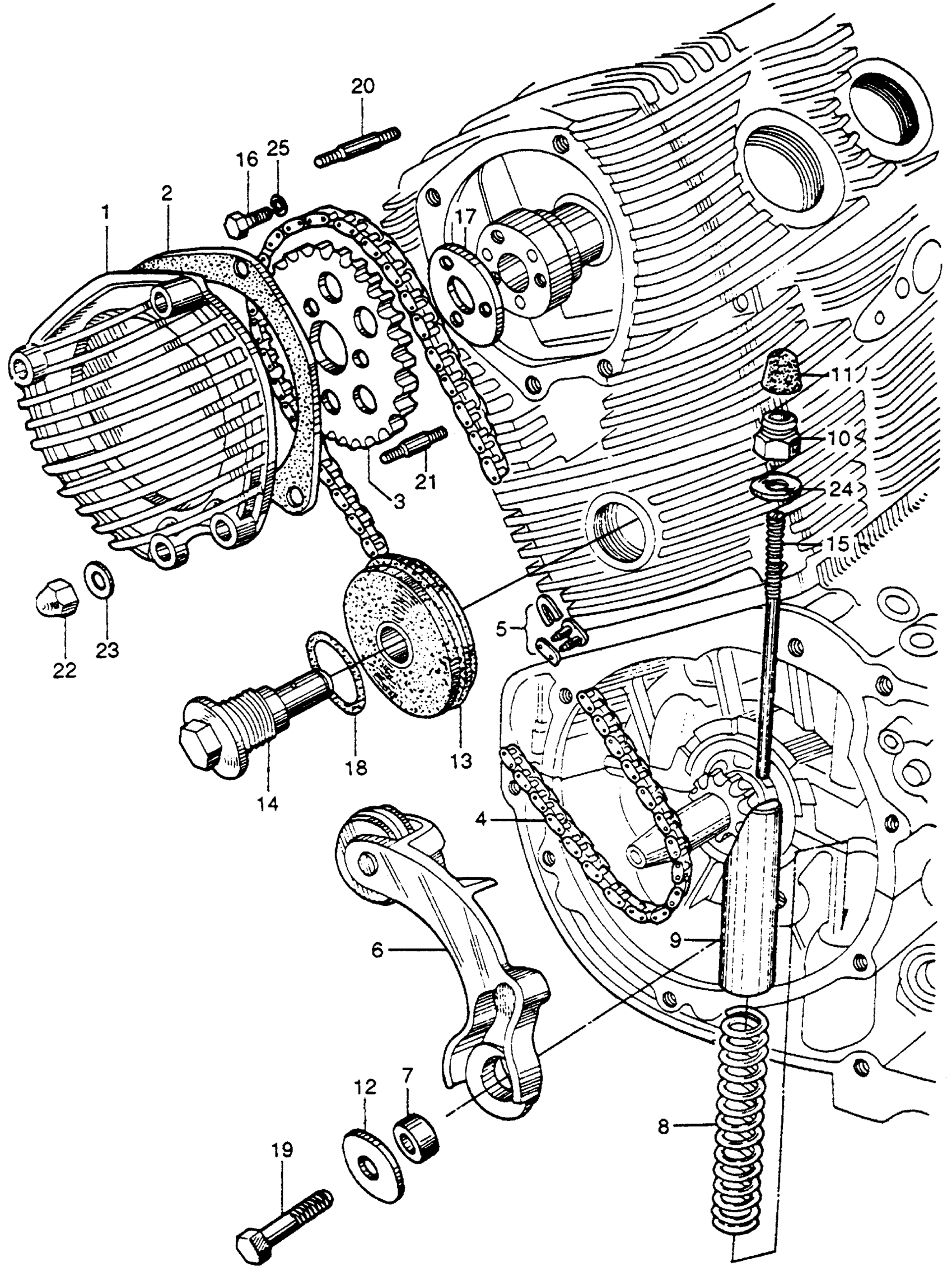

Honda CB92A MOTORCYCLE, JPN, VIN# CB92-010001 CAM CHAIN + CAM CHAIN TENSIONER Diagram

#

Description
Price

1

COVER, L. CYLINDER HEAD SIDE (NOT AVAILABLE)

12341-202-000

Unavailable

2

GASKET, L. This part replaces 12395-200-000.

12395-200-306

Unavailable

3

SPROCKET, CAM (NOT AVAILABLE)

14321-200-000

$75.03

4

CHAIN, CAM (DK219) (NOT AVAILABLE)

14401-200-004

Unavailable

5

JOINT, CAM CHAIN (DK219)

14411-259-000

Unavailable

6

TENSIONER, CAM CHAIN (NOT AVAILABLE)

14500-202-000

$98.13

7

PIVOT, CAM CHAIN TENSIONER (NOT AVAILABLE)

14536-200-000

Unavailable

8

SPRING, CAM CHAIN TENSIONER (NOT AVAILABLE)

14541-200-000

Unavailable

9

GUIDE, CAM CHAIN TENSIONER SPRING (NOT AVAILABLE)

14545-200-000

Unavailable

10

NUT, CAM CHAIN ADJUST SCREW (NOT AVAILABLE)

14572-200-000

Unavailable

11

CAP, CAM CHAIN ADJUST SCREW (NOT AVAILABLE)

14573-200-000

Unavailable

12

PLATE, TENSIONER SETTING

14592-202-000

Unavailable

13

ROLLER, CAM CHAIN GUIDE (NOT AVAILABLE) This part replaces 14610-200-000.

14610-235-000

Unavailable

13

ROLLER, CAM CHAIN GUIDE (NOT AVAILABLE)

14610-235-000

Unavailable

14

PIN, CAM CHAIN GUIDE ROLLER (NOT AVAILABLE)

14615-202-000

Unavailable

15

SCREW, CAM CHAIN ADJUSTING

90009-200-000

Unavailable

16

BOLT, KNOCK (6MM) (NOT AVAILABLE)

90081-200-000

Unavailable

17

WASHER (37.5MM) (NOT AVAILABLE)

90482-200-000

Unavailable

18

O-RING (17.0X2.5) (ARAI) This part replaces 91303-200-000.

91333-KE5-003

$2.13

18

O-RING (17.0X2.5) (ARAI)

91333-KE5-003

$2.13

19

BOLT, HEX. (8X25) This part replaces 92000-08025.

92101-08025-0A

$1.74

19

BOLT, HEX. (8X25) This part replaces 92000-08025-0A.

92101-08025-0A

$1.74

19

BOLT, HEX. (8X25)

92101-08025-0A

$1.74

20

BOLT, STUD (6X18) This part replaces 92700-06031.

92900-06018-0B

$1.55

20

BOLT, STUD (6X18)

92900-06018-0B

$1.55

21

BOLT, STUD (6X27) (NOT AVAILABLE)

92712-06027

Unavailable

22

NUT, CAP (6MM) This part replaces 94021-06000.

94021-06020

$1.73

22

NUT, CAP (6MM) This part replaces 94021-06000-0S.

94021-06020

$1.73

22

NUT, CAP (6MM)

94021-06020

$1.73

22

NUT, CAP (6MM) This part replaces 94021-06020-0S.

94021-06020

$1.73

22

NUT, CAP (6MM) This part replaces 94022-06020.

94021-06020

$1.73

23

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

23

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

23

WASHER, PLAIN (6MM)

94101-06800

$1.49

24

WASHER, PLAIN (8MM)

94101-08000

$1.49

25

WASHER, SPRING (6MM)

94111-06000

$1.49
