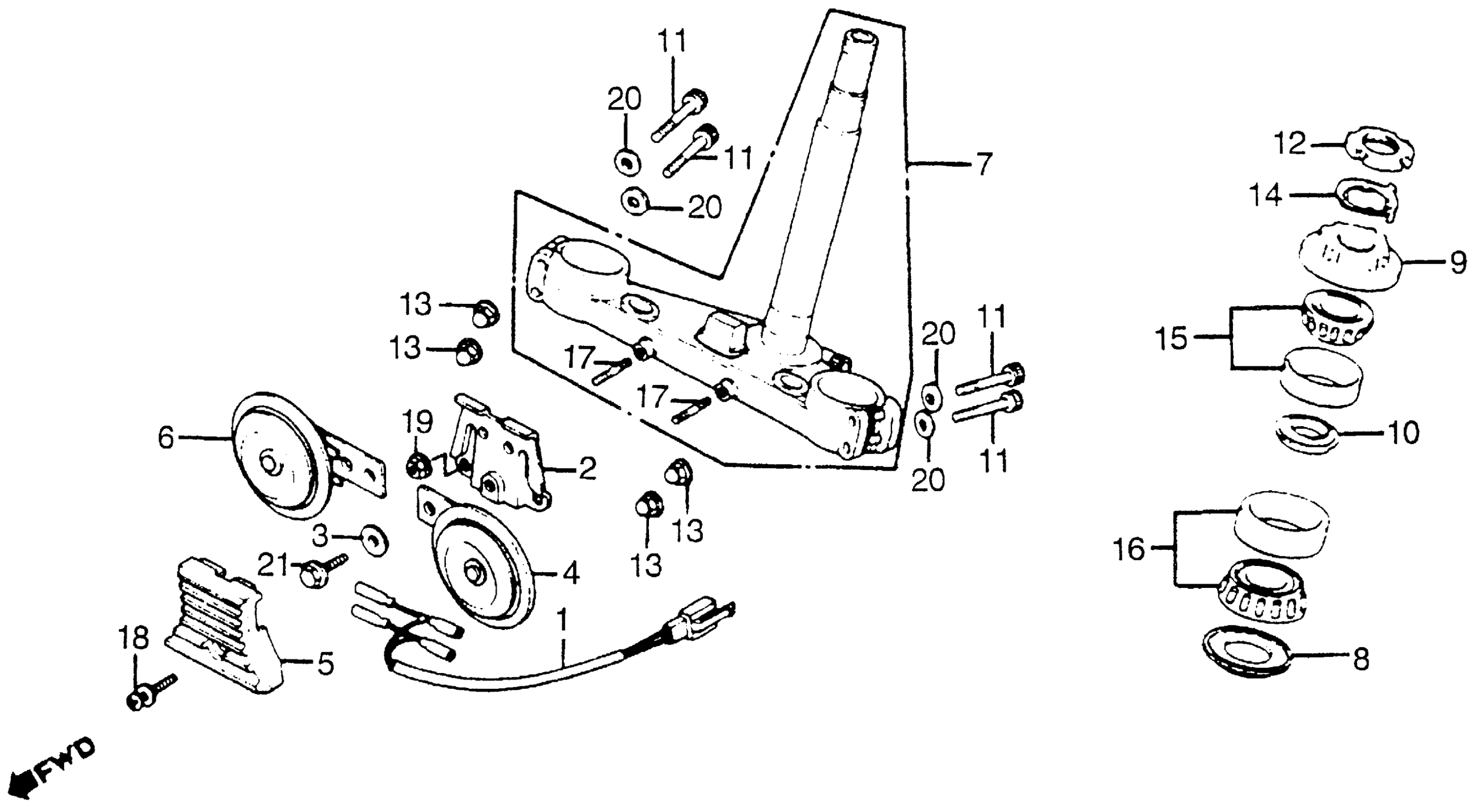

Honda CB900FA (82) 900 SUPER SPORT, JPN, VIN# JH2SC010-CM100003 TO JH2SC010-CM109271 STEERING STEM + HORN Diagram

#

Description
Price

1

SUB-WIRE HARNESS A (NOT AVAILABLE)

32101-438-000

Unavailable

2

STAY, HORN (NOT AVAILABLE)

38102-438-004

Unavailable

3

WASHER, PLAIN (20MM) (NOT AVAILABLE)

38106-410-004

Unavailable

4

HORN (HIGH) (MITSUBA)

38110-GT8-621

Unavailable

4

HORN (HIGH) (MITSUBA) This part replaces 38110-ME2-601.

38110-GT8-621

Unavailable

4

HORN (HIGH) (MITSUBA) This part replaces 38110-410-004.

38110-GT8-621

Unavailable

4

HORN (HIGH) (MITSUBA) This part replaces 38110-438-004.

38110-GT8-621

Unavailable

4

HORN (HIGH) (MITSUBA) This part replaces 38110-438-601.

38110-GT8-621

Unavailable

5

EMBLEM, HORN (NOT AVAILABLE)

38111-438-000

Unavailable

6

HORN (LOW) This part replaces 38120-438-004.

38120-438-601

Unavailable

6

HORN (LOW)

38120-438-601

Unavailable

7

STEM, STEERING

53200-438-670

Unavailable

8

DUST SEAL, STEERING HEAD

53214-371-010

$11.28

9

THREAD, STEERING HEAD (UPPER)

53220-422-000

$29.39

10

HOLDER, GREASE

53223-371-010

Unavailable

11

BOLT, SOCKET (8X55)

90166-422-000

Unavailable

12

THREAD, STEERING HEAD TOP (B)

90302-425-830

$19.51

13

NUT, CAP (8MM)

90443-107-000

$2.62

14

WASHER, LOCK

90506-425-830

$6.56

15

BEARING, HEAD PIPE (UPPER) (NACHI) This part replaces 91015-425-831.

91015-425-832

$27.84

15

BEARING, HEAD PIPE (UPPER) (NACHI)

91015-425-832

$27.84

16

BEARING, HEAD PIPE (LOWER)

91016-371-000

$49.50

17

BOLT, STUD (6X18) This part replaces 92700-06030.

92900-06018-0B

$1.48

17

BOLT, STUD (6X18) This part replaces 92700-06031.

92900-06018-0B

$1.48

17

BOLT, STUD (6X18) This part replaces 92700-06032.

92900-06018-0B

$1.48

17

BOLT, STUD (6X18) This part replaces 92700-06032-30.

92900-06018-0B

$1.48

17

BOLT, STUD (6X18)

92900-06018-0B

$1.48

18

SCREW-WASHER (5X20)

93891-05020-07

$0.61

19

NUT, FLANGE (6MM)

94050-06000

$0.59

20

WASHER, PLAIN (8MM)

94102-08000

$0.86

21

BOLT, FLANGE (6X12) This part replaces 95700-06012-00.

95701-06012-00

$1.81

21

BOLT, FLANGE (6X12)

95701-06012-00

$1.81
