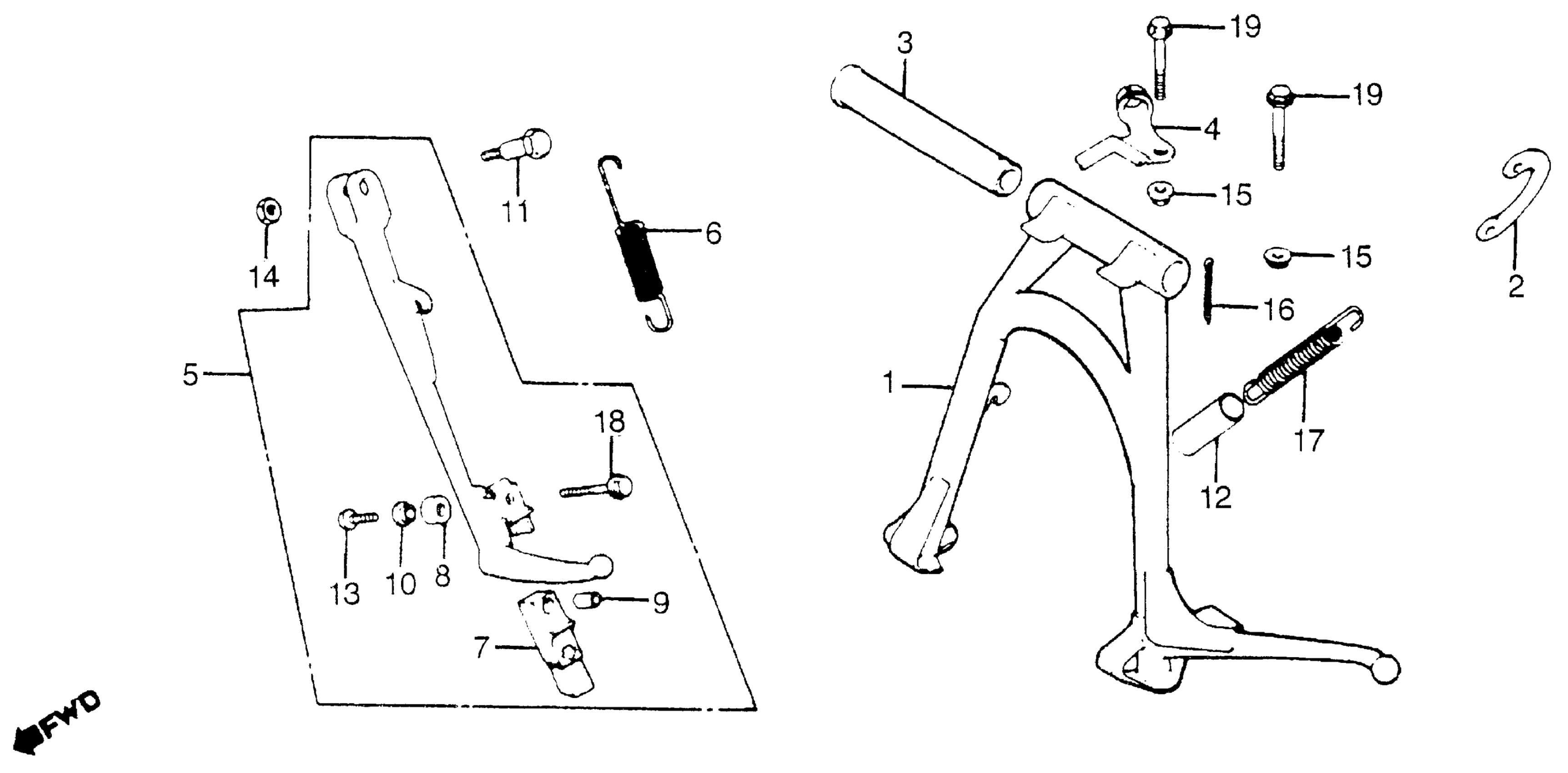

Honda CB900FA (82) 900 SUPER SPORT, JPN, VIN# JH2SC010-CM100003 TO JH2SC010-CM109271 STAND Diagram

STAND, MAIN (NOT AVAILABLE)

50500-438-730

Unavailable

PLATE, MAIN STAND SPRING

50523-425-000

Unavailable

PIPE, MAIN STAND PIVOT

50526-300-000

Unavailable

GUIDE, DRAIN TUBE (NOT AVAILABLE)

50527-425-000

Unavailable

BAR ASSY., SIDE STAND (NOT AVAILABLE)

50540-438-010

Unavailable

SPRING, SIDE STAND

50541-445-010

Unavailable

RUBBER, STAND

50548-356-700

$10.50

RUBBER, STAND (NOT AVAILABLE)

50548-438-000

Unavailable

COLLAR, STAND RUBBER SETTING

50549-356-700

$2.70

COLLAR, RUBBER MOUNTING (NOT AVAILABLE)

50549-438-000

Unavailable

BOLT, SIDE STAND PIVOT

90108-223-000

$5.13

COVER, MAIN STAND SPRING

90125-410-000

Unavailable

SCREW, PAN (6X10) This part replaces 93500-06010.

93500-06010-0A

$1.49

NUT, HEX. (10MM)

94031-10000

$1.49

NUT, FLANGE (8MM)

94050-08000

$1.49

PIN, SPLIT (2.5X30) This part replaces 94201-25250.

94201-25300

$1.49

PIN, COTTER (2.5MM)

94201-25300

$1.49

SPRING G, MAIN STAND

95014-71702

$4.08

BOLT, FLANGE (6X25) This part replaces 95700-06025-07.

95701-06025-07

$1.80

BOLT, FLANGE (6X25)

95701-06025-07

$1.80

BOLT, FLANGE (8X40) This part replaces 95700-08040-00.

95701-08040-00

$1.49

BOLT, FLANGE (8X40)

95701-08040-00

$1.49
