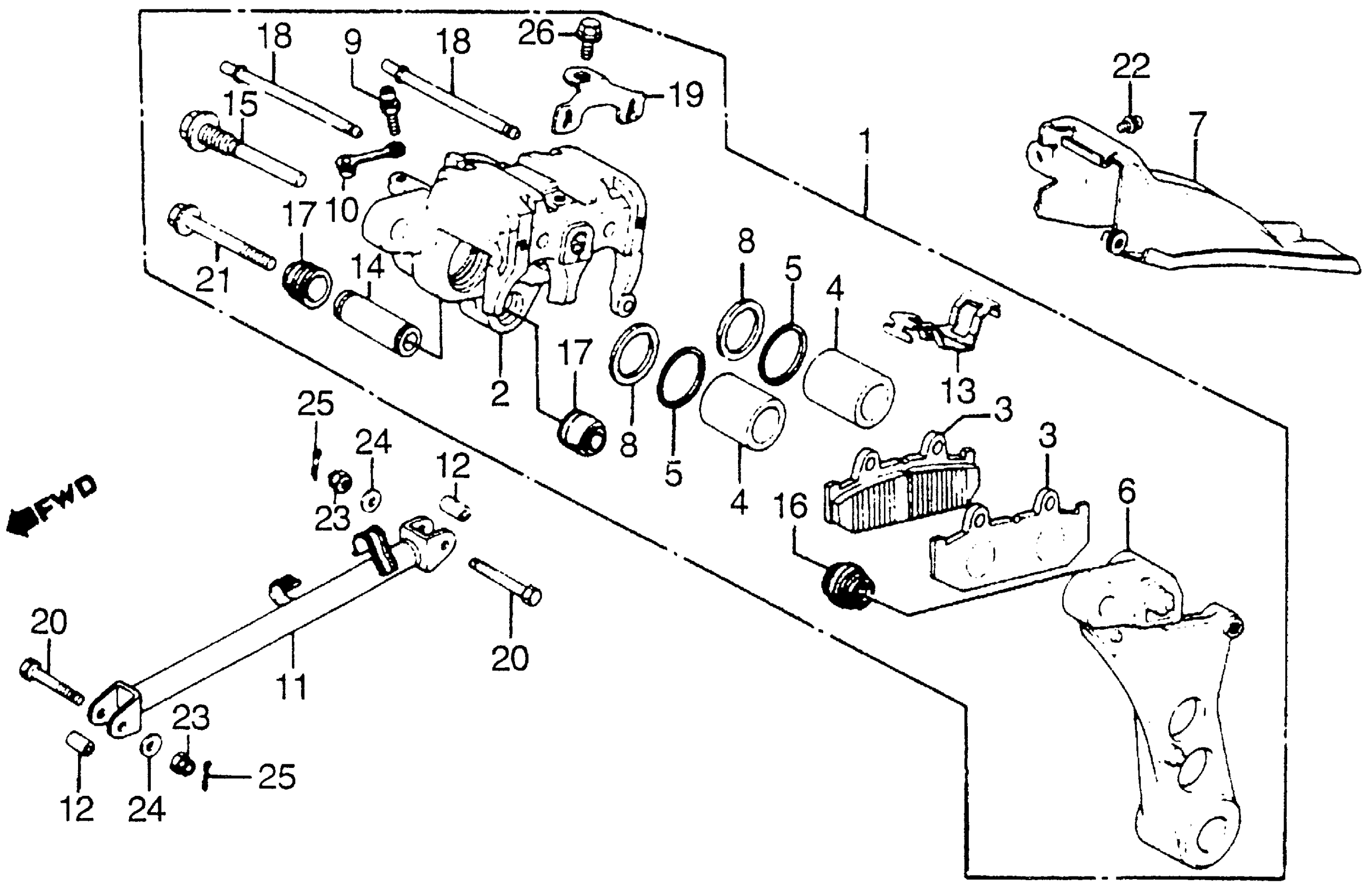

Honda CB900FA (82) 900 SUPER SPORT, JPN, VIN# JH2SC010-CM100003 TO JH2SC010-CM109271 REAR BRAKE CALIPER Diagram

#

Description
Price

NI

PAD SET This part replaces 06455-MA3-405.

06435-MC7-405

Unavailable

NI

PAD SET This part replaces 431A0-MA3-004.

06435-MC7-405

Unavailable

1

CALIPER ASSY., RR. (ASK) (NISSHIN) (NOT AVAILABLE) This part replaces 43100-445-633.

43100-445-634

Unavailable

1

CALIPER ASSY., RR. (ASK) (NISSHIN) (NOT AVAILABLE)

43100-445-634

Unavailable

2

CALIPER, RR. (NOT AVAILABLE)

43101-MA3-006

Unavailable

3

PAD, FR. This part replaces 43105-MA3-004.

45105-MM9-782

$24.40

3

PAD, FR. This part replaces 43105-MA3-007.

45105-MM9-782

$24.40

3

PAD, FR. This part replaces 45105-MK7-672.

45105-MM9-782

$24.40

4

PISTON

43107-MA3-006

$32.99

5

DUST SEAL

43109-MA3-006

$5.73

6

BRACKET, RR. (NOT AVAILABLE)

43110-445-632

Unavailable

7

COVER, RR. DISK (NOT AVAILABLE)

43140-MA3-000

Unavailable

8

SEAL, PISTON

43209-MA3-006

$7.04

9

SCREW, BLEEDER

43352-568-003

$7.95

10

CAP, BLEEDER

43353-461-771

$5.05

11

LINK, TORQUE (NOT AVAILABLE)

43431-422-000

Unavailable

12

COLLAR, LINK

43435-392-000

$5.90

13

SPRING, PAD

45108-MA3-006

$6.28

14

SLEEVE

45111-MA3-006

$13.38

15

PIN, BOLT

45131-MA3-006

$17.59

16

BOOT B

45133-MA3-006

$5.46

17

BOOT, PIN

45133-166-016

$3.85

18

PIN, HANGER

45215-MA3-006

$12.77

19

PLATE

45217-MA3-006

$4.45

20

BOLT, RR. BRAKE STOPPER ARM

90124-392-000

Unavailable

21

BOLT, FLANGE (8X49) This part replaces 90180-MA3-006.

90180-MN8-006

$6.07

22

SCREW-WASHER (5X10)

93892-05010-07

$1.49

23

NUT, SELF-LOCK (8MM)

94011-08000-0S

$9.38

24

WASHER, PLAIN (8MM)

94101-08000

$1.49

25

PIN, COTTER (2.0X22) This part replaces 94201-20180.

94201-29220

$1.49

25

PIN, COTTER (2.0X22) This part replaces 94201-20200.

94201-29220

$1.49

25

PIN, COTTER (2.0X22)

94201-20220

$1.49

25

PIN, COTTER (2.0X35) This part replaces 94201-20250.

94201-20350

$1.49

25

PIN, COTTER (2.0X35) This part replaces 94201-20280.

94201-20350

$1.49

25

PIN, COTTER (2.0X35) This part replaces 94201-20320.

94201-20350

$1.49

25

PIN, COTTER (2.0X35)

94201-20350

$1.49

25

PIN, COTTER (2.0X22)

94201-29220

$1.49

26

BOLT, FLANGE (6X10) This part replaces 95700-06010-00.

95701-06010-00

$1.49

26

BOLT, FLANGE (6X10)

95701-06010-00

$1.49
