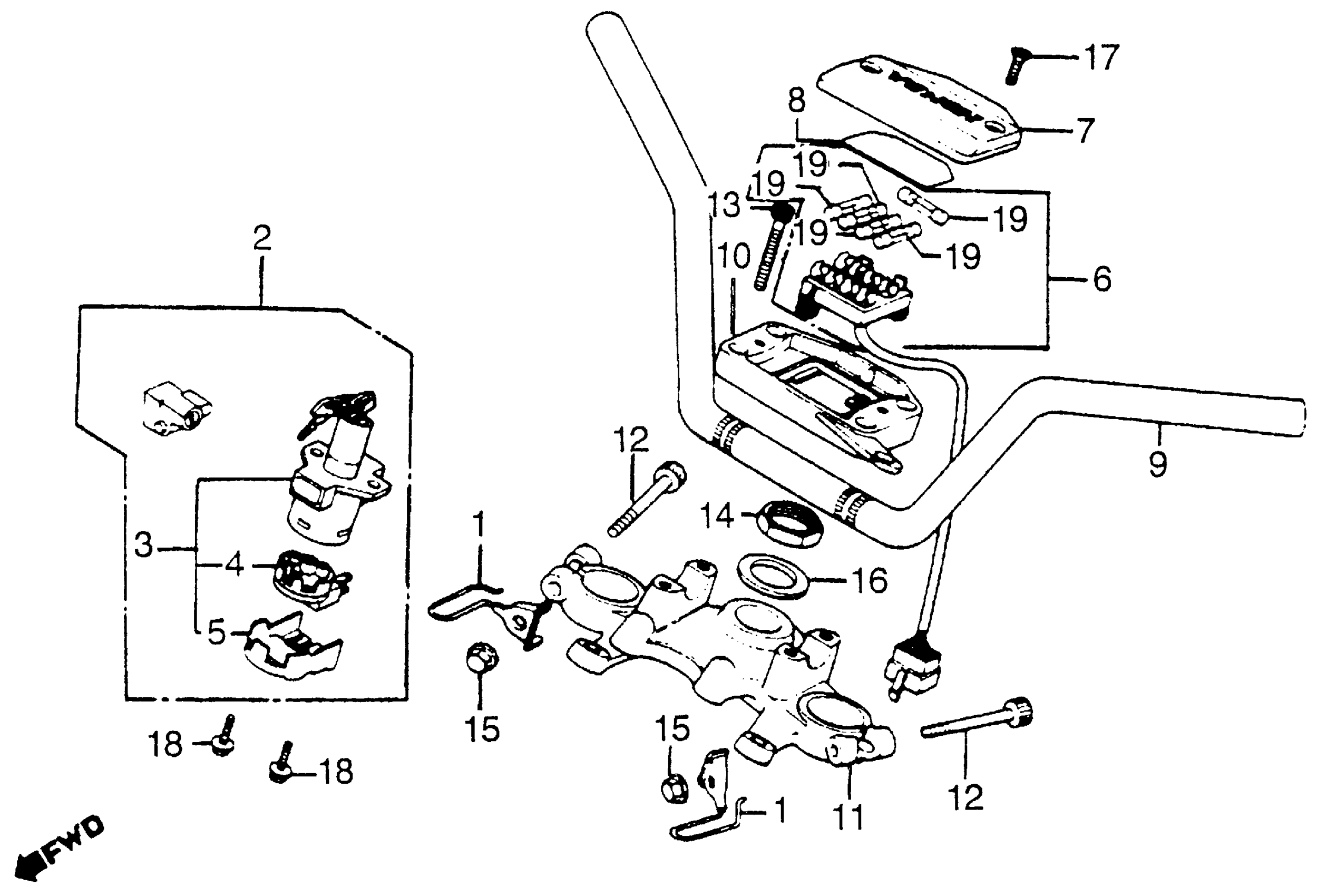

Honda CB900FA (82) 900 SUPER SPORT, JPN, VIN# JH2SC010-CM100003 TO JH2SC010-CM109271 HANDLEBAR + TOP BRIDGE Diagram

GUIDE, CABLE (NOT AVAILABLE)

17908-425-000

Unavailable

LOCK SET (NOT AVAILABLE) This part replaces 35010-422-020.

35010-449-860

Unavailable

LOCK SET (NOT AVAILABLE)

35010-449-860

Unavailable

SWITCH ASSY., COMBINATION & LOCK

35100-422-017

Unavailable

BASE, CONTACT

35101-422-007

Unavailable

COVER, SWITCH

35102-431-007

Unavailable

PLATE ASSY., FUSE This part replaces 38200-MA4-671.

38200-MF9-405

Unavailable

PLATE ASSY., FUSE

38200-MF9-405

Unavailable

COVER, FUSE PLATE (NOT AVAILABLE)

38210-425-000

Unavailable

LABEL, FUSE (NOT AVAILABLE)

38215-MA4-670

Unavailable

HANDLEBAR (NOT AVAILABLE)

53100-438-670

Unavailable

HOLDER, HANDLE (UPPER) (NOT AVAILABLE)

53131-MA4-670

Unavailable

BRIDGE, FORK TOP

53230-438-670

Unavailable

BOLT, SOCKET (7X55)

90167-422-000

Unavailable

BOLT, HEX. SOCKET (8X32)

90185-371-000

$6.28

NUT, STEERING STEM

90304-425-000

$9.69

NUT, CAP. (7MM) This part replaces 90360-422-000.

90360-428-900

Unavailable

WASHER, STEERING STEM

90503-425-000

$4.21

SCREW, OVAL (5X20)

93700-05020-0G

$1.49

SCREW, OVAL (5X20) This part replaces 93700-05020-1G.

93700-05020-0G

$1.49

BOLT, FLANGE (6X12) This part replaces 95700-06012-00.

95701-06012-00

$1.62

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

FUSE B (15A)

98200-21500

$1.49
