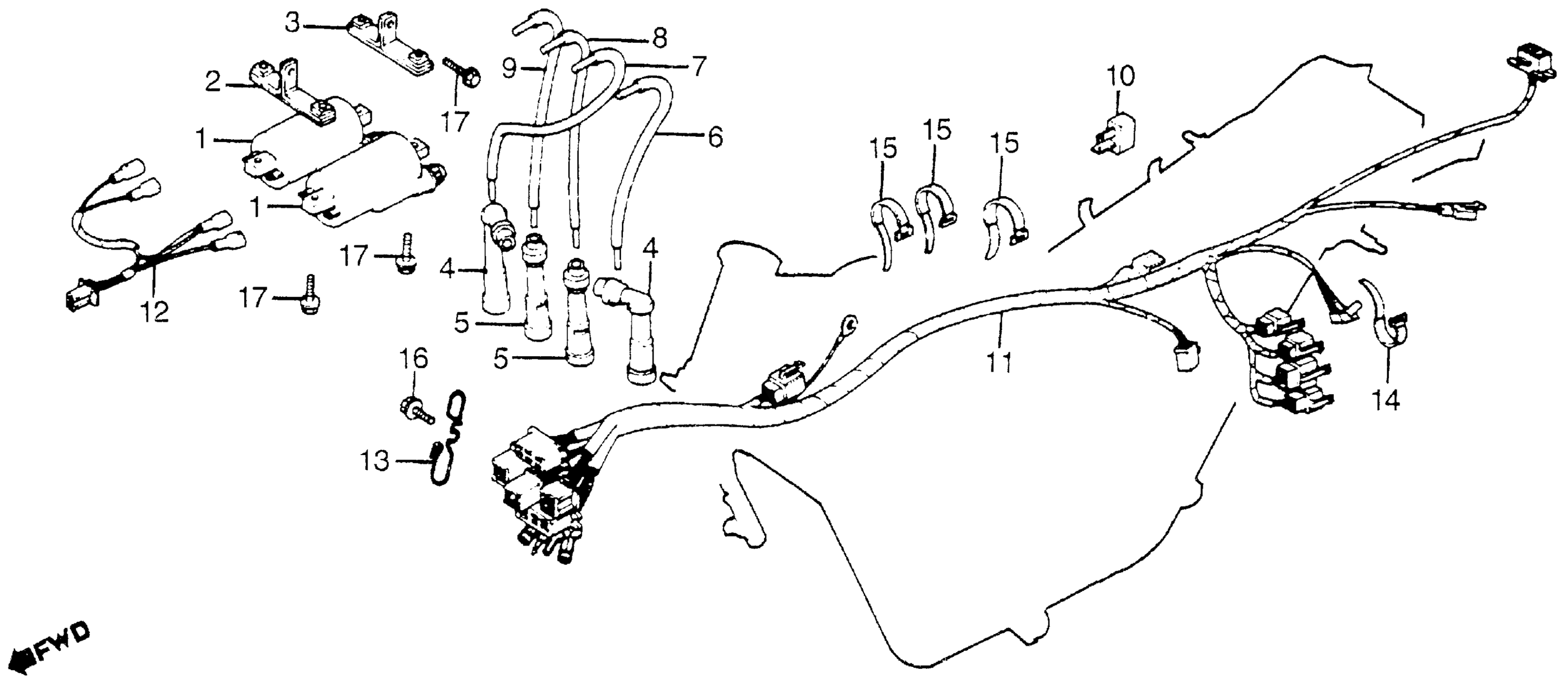

Honda CB900FA (81) 900 SUPER SPORT, JPN, VIN# JH2SC010-BM000001 TO JH2SC010-BM007060 WIRE HARNESS + IGNITION COIL Diagram

#

Description
Price

1

COIL ASSY., IGNITION

30500-422-013

$194.84

2

STAY, IGNITION COIL (NOT AVAILABLE)

30501-MA4-670

Unavailable

2

STAY, IGNITION COIL (NOT AVAILABLE) This part replaces 30501-425-000.

30501-MA4-670

Unavailable

3

STAY, IGNITION COIL (NOT AVAILABLE) This part replaces 30502-425-770.

30501-MA4-670

Unavailable

4

CAP ASSY., NOISE SUPPRESSOR

30700-MC8-000

Unavailable

4

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-390-153.

30700-MC8-000

Unavailable

4

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-390-163.

30700-MC8-000

Unavailable

5

CAP ASSY. This part replaces 30700-MW3-000.

30700-MW3-003

$14.34

5

CAP ASSY. This part replaces 30710-405-153.

30700-MW3-003

$14.34

5

CAP ASSY. This part replaces 30710-405-163.

30700-MW3-003

$14.34

6

WIRE, IGNITION

30750-MA6-P00

Unavailable

6

WIRE, IGNITION This part replaces 30750-MA6-405.

30750-MA6-P00

Unavailable

6

WIRE, IGNITION This part replaces 30751-425-010.

30750-MA6-P00

Unavailable

7

WIRE, IGNITION

30750-MA0-P00

Unavailable

7

WIRE, IGNITION This part replaces 30750-MA0-405.

30750-MA0-P00

Unavailable

7

WIRE, IGNITION This part replaces 30752-425-010.

30750-MA0-P00

Unavailable

8

WIRE, IGNITION

30750-MA6-P00

Unavailable

8

WIRE, IGNITION This part replaces 30750-MA6-405.

30750-MA6-P00

Unavailable

8

WIRE, IGNITION This part replaces 30753-425-010.

30750-MA6-P00

Unavailable

9

WIRE, IGNITION

30750-MA6-P00

Unavailable

9

WIRE, IGNITION This part replaces 30750-MA6-405.

30750-MA6-P00

Unavailable

9

WIRE, IGNITION This part replaces 30754-MA6-000.

30750-MA6-P00

Unavailable

9

WIRE, IGNITION This part replaces 30754-425-010.

30750-MA6-P00

Unavailable

10

RECTIFIER ASSY., SILICON (SHINDENGEN) This part replaces 31700-124-003.

31700-124-008

$29.71

10

RECTIFIER ASSY., SILICON (SHINDENGEN)

31700-124-008

$29.71

11

WIRE HARNESS (NOT AVAILABLE)

32100-438-670

Unavailable

12

SUB-WIRE HARNESS A (NOT AVAILABLE)

32103-438-660

Unavailable

13

GUIDE, WIRE HARNESS (NOT AVAILABLE)

50174-438-000

Unavailable

14

BAND B1, CABLE

32161-404-000

$2.23

14

BAND B1, CABLE This part replaces 95014-61100.

32161-404-000

$2.23

15

BAND A2, CABLE

95014-61200

$2.33

16

BOLT, FLANGE (6X10) This part replaces 95700-06010-07.

95701-06010-07

$1.62

16

BOLT, FLANGE (6X10)

95701-06010-07

$1.62

17

BOLT, FLANGE (6X20) This part replaces 95700-06020-00.

95701-06020-00

$1.55

17

BOLT, FLANGE (6X20)

95701-06020-00

$1.55
