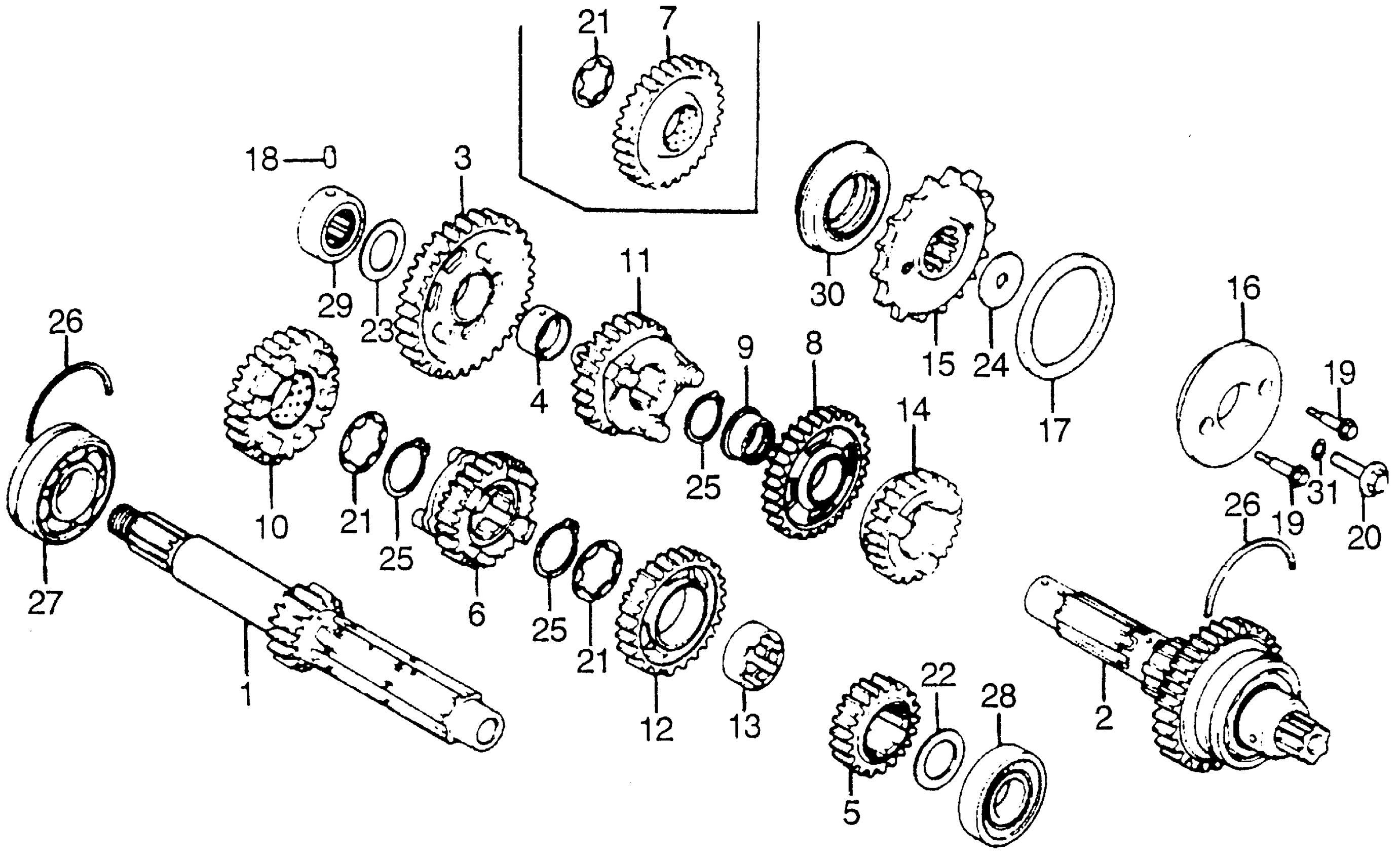

Honda CB900FA (81) 900 SUPER SPORT, JPN, VIN# JH2SC010-BM000001 TO JH2SC010-BM007060 TRANSMISSION Diagram

#

Description
Price

1

MAINSHAFT, TRANSMISSION (15T)

23211-438-000

Unavailable

2

COUNTERSHAFT, TRANSMISSION (34T) (NOT AVAILABLE) This part replaces 23220-438-670.

23220-MA3-000

Unavailable

3

GEAR, COUNTERSHAFT LOW (38T)

23411-438-000

Unavailable

4

BUSH, COUNTERSHAFT LOW GEAR (NOT AVAILABLE)

23422-425-000

Unavailable

5

GEAR, MAINSHAFT SECOND (19T)

23431-438-000

Unavailable

6

GEAR, MAINSHAFT THIRD (23T)

23451-MC3-630

Unavailable

6

GEAR, MAINSHAFT THIRD (23T) This part replaces 23451-438-010.

23451-MC3-630

Unavailable

7

GEAR, COUNTERSHAFT THIRD (32T) (NOT AVAILABLE) This part replaces 23461-438-000.

23461-438-010

Unavailable

7

GEAR, COUNTERSHAFT THIRD (32T) (NOT AVAILABLE)

23461-438-010

Unavailable

10

GEAR, MAINSHAFT FOURTH (25T) (NOT AVAILABLE) This part replaces 23471-438-010.

23471-438-030

Unavailable

10

GEAR, MAINSHAFT FOURTH (25T) (NOT AVAILABLE) This part replaces 23471-438-020.

23471-438-030

Unavailable

10

GEAR, MAINSHAFT FOURTH (25T) (NOT AVAILABLE)

23471-438-030

Unavailable

11

GEAR, COUNTERSHAFT FOURTH (29T)

23481-438-000

Unavailable

12

GEAR, MAINSHAFT FIFTH (27T) (NOT AVAILABLE) This part replaces 23491-438-000.

23491-MG5-670

Unavailable

13

COLLAR, SPLINE (28X17) (NOT AVAILABLE)

23495-422-000

Unavailable

14

GEAR, COUNTERSHAFT FIFTH (27T)

23501-MC3-630

Unavailable

14

GEAR, COUNTERSHAFT FIFTH (27T) This part replaces 23501-425-000.

23501-MC3-630

Unavailable

14

GEAR, COUNTERSHAFT FIFTH (27T) This part replaces 23501-438-670.

23501-MC3-630

Unavailable

15

SPROCKET, DRIVE (17T)

23801-438-000

Unavailable

16

GUIDE, RING

23820-438-003

Unavailable

17

RING, DAMPER (NOT AVAILABLE)

23821-460-000

Unavailable

18

PIN, GEARSHIFT FORK GUIDE

24261-283-000

$4.21

19

BOLT, FLANGE (6X20)

90020-438-000

$3.35

20

BOLT, SPECIAL (10MM)

90037-422-003

$7.32

21

WASHER, THRUST (28MM)

90451-422-000

$8.36

22

WASHER, THRUST (22.5MM) (NOT AVAILABLE)

90453-426-000

Unavailable

23

WASHER, THRUST (NOT AVAILABLE)

90457-425-000

Unavailable

24

WASHER (10.2MM)

90459-438-000

$5.83

25

CIRCLIP (OUTER) (28MM)

90601-422-000

$2.98

26

SET-RING (62MM) (NOT AVAILABLE)

90602-428-000

Unavailable

27

BEARING, RADIAL BALL (6305) (NTN CORP.)

91003-KY2-003

Unavailable

27

BEARING, RADIAL BALL (6305) (NTN CORP.) This part replaces 91004-438-003.

91003-KY2-003

Unavailable

28

BEARING, RADIAL BALL (63/22U) (NOT AVAILABLE)

91005-425-003

Unavailable

29

BEARING, NEEDLE (22MM) (NOT AVAILABLE)

91022-438-008

Unavailable

30

OIL SEAL (40X62X13)

91205-425-003

$32.89

31

O-RING (9.8X2.4) This part replaces 91352-526-000.

91305-422-000

$2.47

31

O-RING (9.8X2.4)

91305-422-000

$2.47

31

O-RING (9.8X2.4) This part replaces 91352-425-003.

91305-422-000

$2.47
