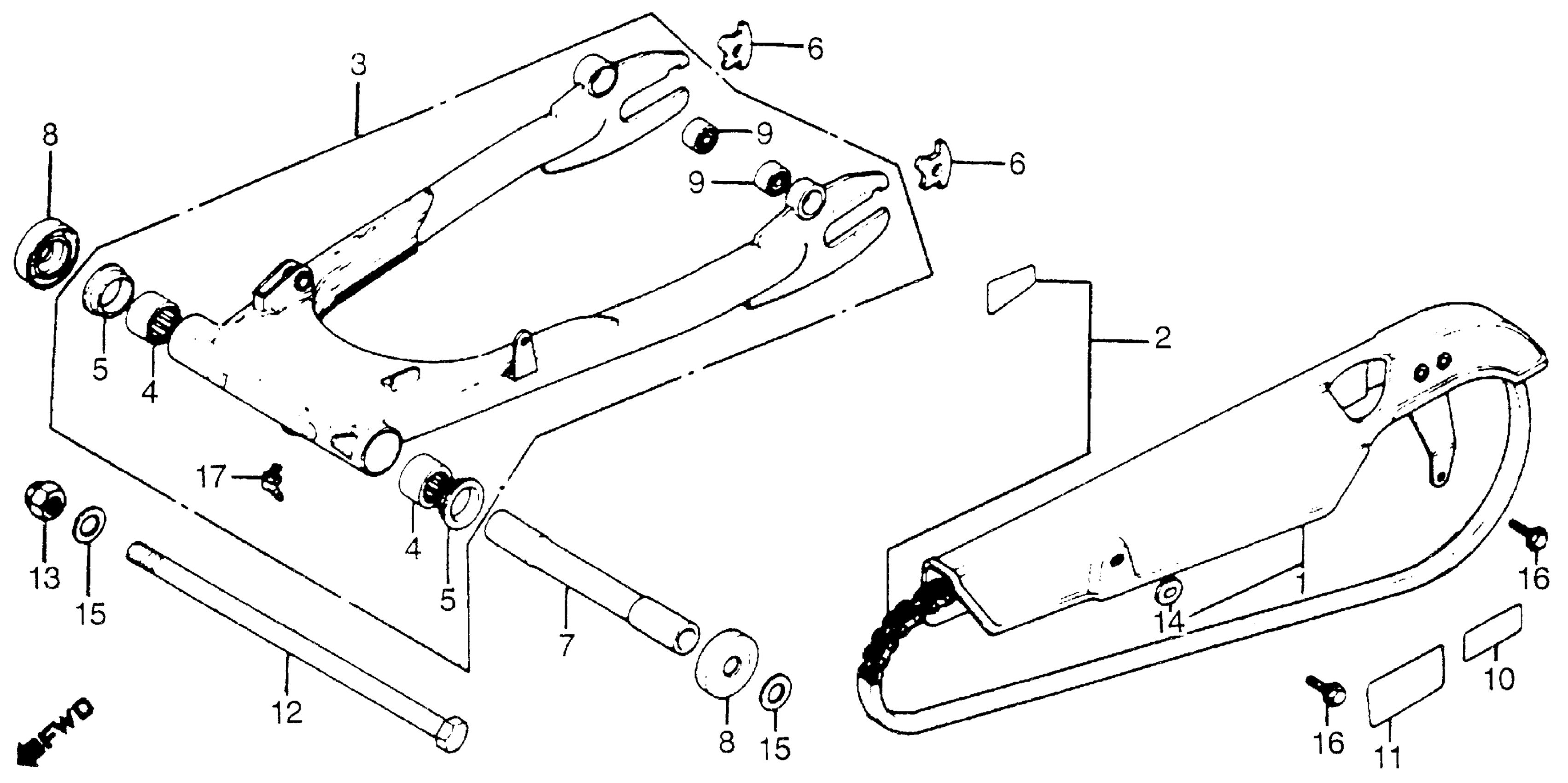

Honda CB900FA (81) 900 SUPER SPORT, JPN, VIN# JH2SC010-BM000001 TO JH2SC010-BM007060 SWINGARM + CHAIN CASE Diagram

CASE, DRIVE CHAIN This part replaces 40510-425-000.

40510-425-020

Unavailable

CASE, DRIVE CHAIN This part replaces 40510-425-010.

40510-425-020

Unavailable

CASE, DRIVE CHAIN

40510-425-020

Unavailable

CASE, DRIVE CHAIN This part replaces 40510-438-010.

40510-425-020

Unavailable

CHAIN SET, DRIVE (106L) (TAKASAGO)

40535-438-622

Unavailable

SWINGARM ASSY., RR. *NH1* (BLACK)

52100-438-670ZA

Unavailable

BEARING, SWINGARM PIVOT (TOMUSON)

52108-425-831

Unavailable

BEARING, SWINGARM PIVOT (KOYO) (NOT AVAILABLE)

52108-425-832

Unavailable

BUSH, THRUST

52109-425-831

Unavailable

STOPPER, CHAIN ADJUSTER

52136-ME1-670

Unavailable

STOPPER, CHAIN ADJUSTER This part replaces 52136-405-000.

52136-ME1-670

Unavailable

STOPPER, CHAIN ADJUSTER This part replaces 52136-425-870.

52136-ME1-670

Unavailable

COLLAR, RR. SWINGARM CENTER

52141-425-830

Unavailable

CAP, DUST SEAL

52144-425-831

Unavailable

BUSH, RR. SHOCK ABSORBER

52451-357-000

Unavailable

MARK, TIRE CAUTION (NOT AVAILABLE)

87505-438-670

Unavailable

MARK, ACCESSORIES & LOADING CAUTION (NOT AVAILABLE)

87512-MA4-670

Unavailable

BOLT, SWINGARM PIVOT (NOT AVAILABLE)

90121-445-770

Unavailable

NUT, SELF-LOCK (16MM) (NOT AVAILABLE)

90354-425-830

Unavailable

WASHER (6X9)

90513-405-000

$2.09

WASHER (16MM) (NOT AVAILABLE)

90600-425-830

Unavailable

BOLT, FLANGE (6X12) This part replaces 95700-06012-07.

95701-06012-07

$1.62

BOLT, FLANGE (6X12)

95701-06012-07

$1.62

FITTING, GREASE (C.76)

96201-60000

$2.87
