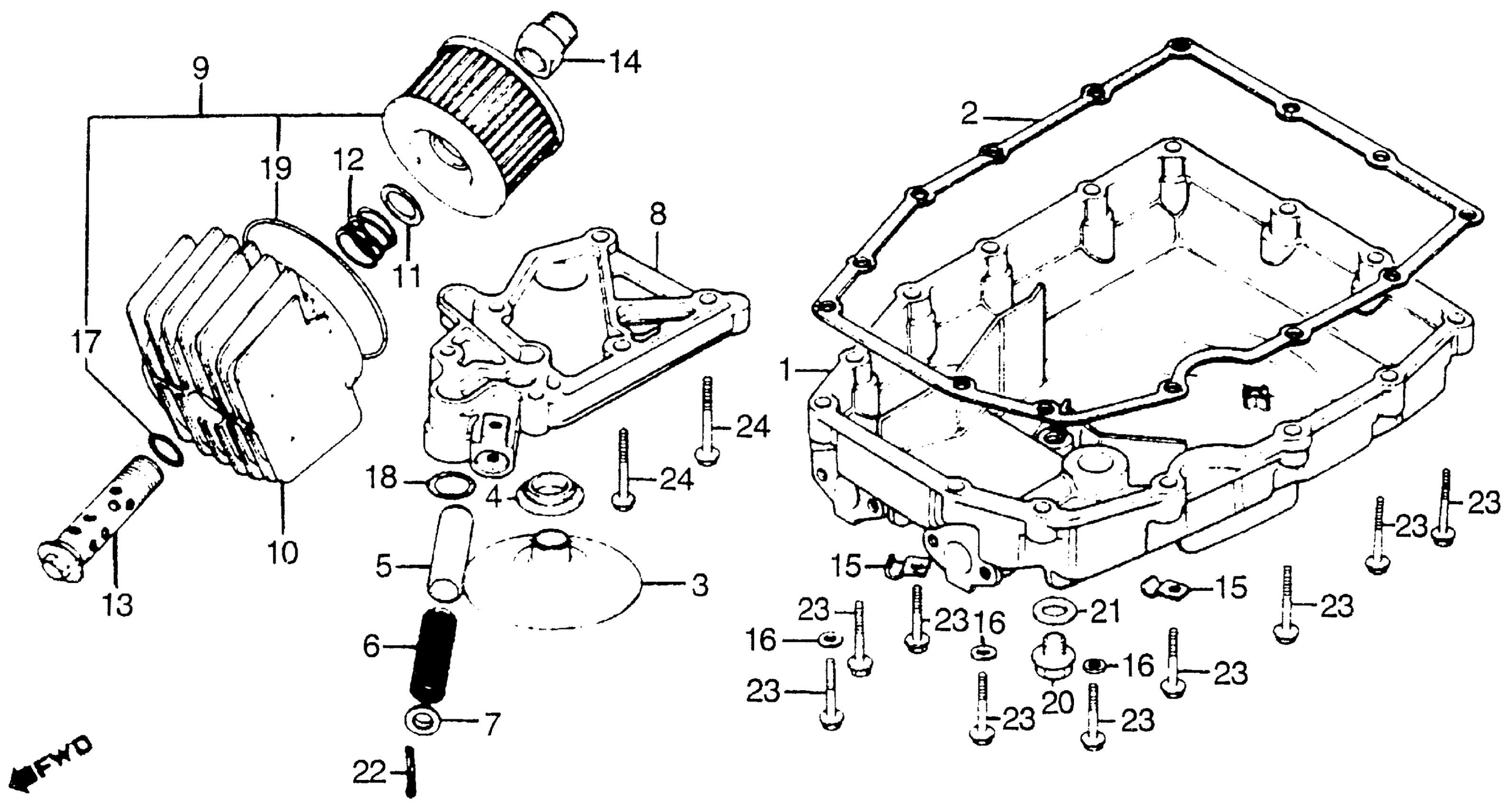

Honda CB900FA (81) 900 SUPER SPORT, JPN, VIN# JH2SC010-BM000001 TO JH2SC010-BM007060 OIL FILTER + OIL PAN Diagram

#

Description
Price

1

PAN, OIL (NOT AVAILABLE)

11210-438-670

Unavailable

2

GASKET, OIL PAN This part replaces 11398-425-000.

11398-425-306

Unavailable

2

GASKET, OIL PAN

11398-425-306

Unavailable

3

STRAINER, OIL (NOT AVAILABLE)

15153-425-000

Unavailable

4

GASKET, OIL STRAINER

15154-425-000

$7.99

5

VALVE, RELIEF

15231-PE0-000

$14.67

5

VALVE, RELIEF This part replaces 15231-634-010.

15231-PE0-000

$14.67

6

SPRING, RELIEF VALVE (NOT AVAILABLE)

15232-438-000

Unavailable

7

SEAT, RELIEF VALVE SPRING (NOT AVAILABLE)

15233-634-000

Unavailable

8

BODY, OIL PASSAGE

15311-438-010

Unavailable

9

ELEMENT, OIL FILTER This part replaces 15410-426-000.

15410-426-010

$9.30

9

ELEMENT, OIL FILTER

15410-426-010

$9.30

10

CASE, OIL FILTER (NOT AVAILABLE)

15411-438-670

Unavailable

11

SEAT, OIL FILTER SPRING

15414-300-000

$3.89

12

SPRING, OIL FILTER ELEMENT SETTING

15415-300-000

$4.85

13

BOLT, OIL FILTER CENTER

15420-300-020

Unavailable

14

BOSS, OIL FILTER

15422-425-010

Unavailable

15

CLIP, COIL CABLE (NOT AVAILABLE) This part replaces 32900-438-000.

32921-115-000

Unavailable

15

CLIP, COIL CABLE (NOT AVAILABLE)

32921-115-000

Unavailable

16

WASHER, SEALING (6MM)

90441-706-000

$1.49

17

O-RING (15X2.5)

91302-377-000

$5.31

18

O-RING (17X3.5) This part replaces 91306-634-000.

91361-752-000

$2.98

18

O-RING (17X3.5)

91361-752-000

$2.98

19

O-RING (89X4.5) This part replaces 91316-300-003.

91316-425-003

$4.45

19

O-RING (89X4.5)

91316-425-003

$4.45

20

BOLT, DRAIN PLUG (14MM)

92800-14000

$3.67

21

WASHER, DRAIN PLUG (14MM)

94109-14000

$1.49

22

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$1.49

22

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$1.49

22

PIN, COTTER (3.0X45)

94201-30450

$1.49

23

BOLT, FLANGE (6X28)

95700-06028-00

$1.73

23

BOLT, FLANGE (6X28)

95701-06028-00

$1.73

24

BOLT, FLANGE (6X32) This part replaces 95700-06032-00.

95701-06032-00

$1.89

24

BOLT, FLANGE (6X32)

95701-06032-00

$1.89
