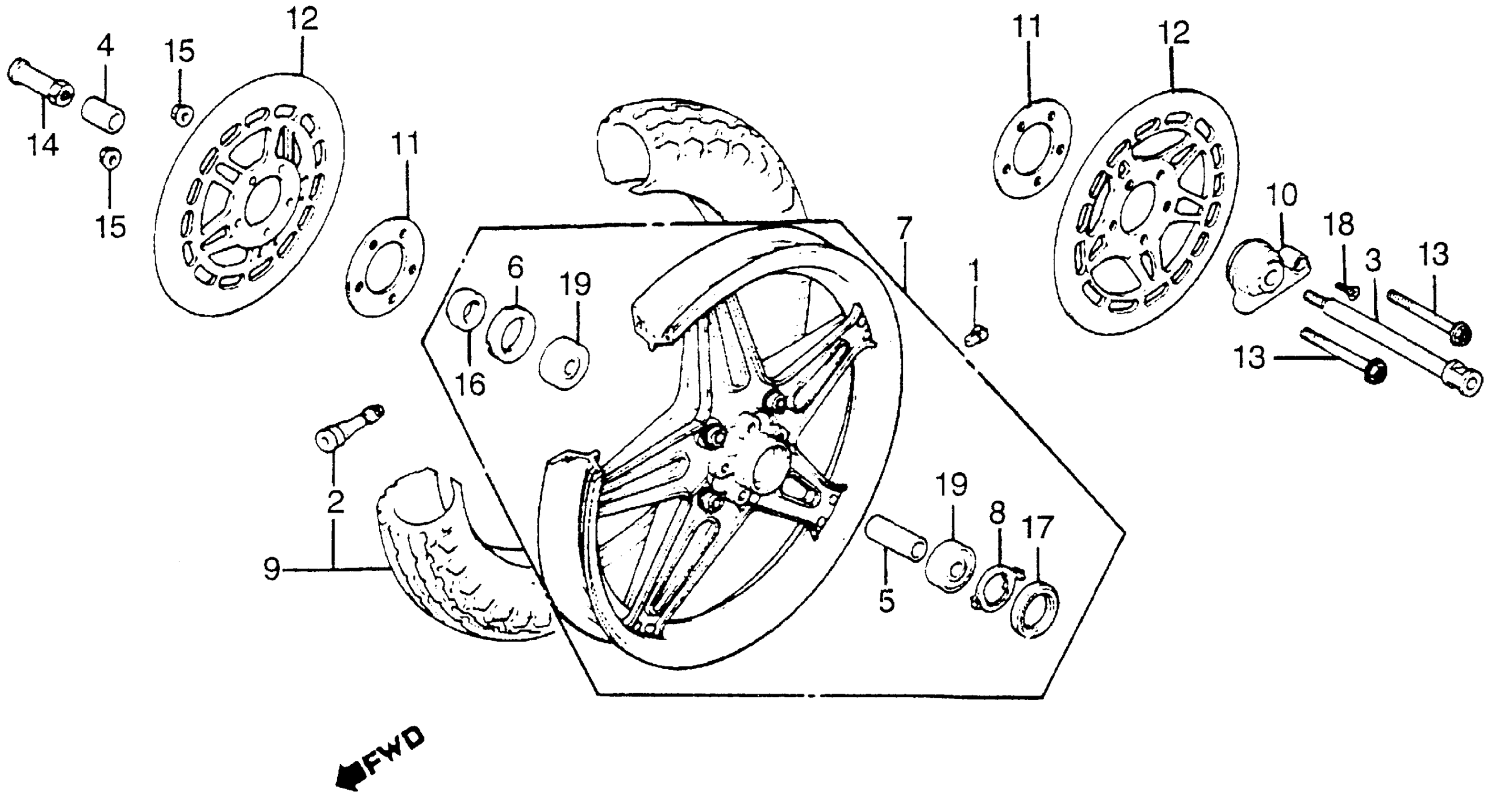

Honda CB900FA (81) 900 SUPER SPORT, JPN, VIN# JH2SC010-BM000001 TO JH2SC010-BM007060 FRONT WHEEL Diagram

#

Description
Price

1

WEIGHT, BALANCE (20G)

42705-410-000

Unavailable

1

WEIGHT, BALANCE (30G)

42706-410-000

$11.69

2

VALVE, RIM (BS)

42753-425-003

$11.00

2

VALVE, RIM (BS) This part replaces 42753-425-004.

42753-425-003

$11.00

3

AXLE, FR. WHEEL (NOT AVAILABLE)

44301-MA4-670

Unavailable

4

COLLAR, FR. WHEEL SIDE This part replaces 44311-461-770.

44311-460-840

Unavailable

5

COLLAR, FR. WHEEL DISTANCE

44620-410-000

Unavailable

6

RETAINER, FR. WHEEL BEARING

44643-300-000

$15.70

7

WHEEL, FR. (NOT AVAILABLE)

44650-463-671

Unavailable

8

RETAINER, GEAR BOX

44680-410-000

$5.80

9

TIRE ASSY., FR. (3.50V19) (NOT AVAILABLE) This part replaces 44710-469-672.

44710-MB7-672

Unavailable

9

TIRE ASSY., FR. (3.50V19) (4PR) (BS) (NOT AVAILABLE)

44710-469-812

Unavailable

9

TIRE ASSY., FR. (3.50V19) (NOT AVAILABLE)

44710-MB7-672

Unavailable

9

TIRE ASSY., FR. (3.50H19) (4PR) (DUNLOP) (NOT AVAILABLE) | (Optional).

44710-445-632

Unavailable

9

TIRE ASSY., FR. (3.50H19) (4PR) (DUNLOP) (NOT AVAILABLE) | (Optional). This part replaces 44710-469-671.

44710-445-632

Unavailable

10

BOX ASSY., SPEEDOMETER GEAR

44800-425-013

Unavailable

11

SHIM, DAMPING (NOT AVAILABLE)

45128-445-630

Unavailable

12

DISK, FR. BRAKE (NOT AVAILABLE)

45251-413-941

Unavailable

13

BOLT, FLANGE (8X104) (NOT AVAILABLE)

90103-438-000

Unavailable

14

NUT, AXLE (12MM) (NOT AVAILABLE) This part replaces 90305-333-000.

90306-425-870

Unavailable

14

NUT, AXLE (12MM) (NOT AVAILABLE)

90306-425-870

Unavailable

15

NUT, FLANGE (8MM)

90309-428-731

$3.35

16

DUST SEAL (22X36X8)

91252-300-003

$10.73

17

DUST SEAL (40X50X5) (ARAI) This part replaces 91258-410-003.

91258-410-013

$9.80

17

DUST SEAL (40X50X5) (ARAI) This part replaces 91258-410-006.

91258-410-013

$9.80

17

DUST SEAL (40X50X5) (ARAI)

91258-410-013

$9.80

18

SCREW, OVAL (5X16)

93700-05016-0A

$1.49

19

BEARING, RADIAL BALL (6302UU) This part replaces 96140-63020-10.

96150-63020-10

$15.36

19

BEARING, RADIAL BALL (6302UU)

96150-63020-10

$15.36
